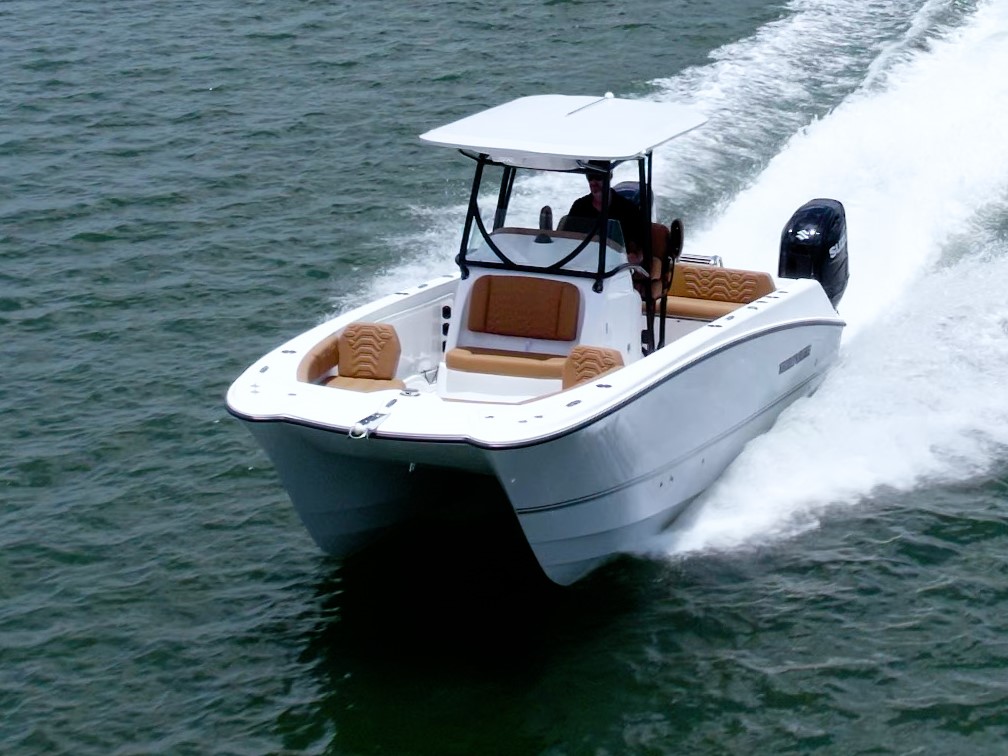

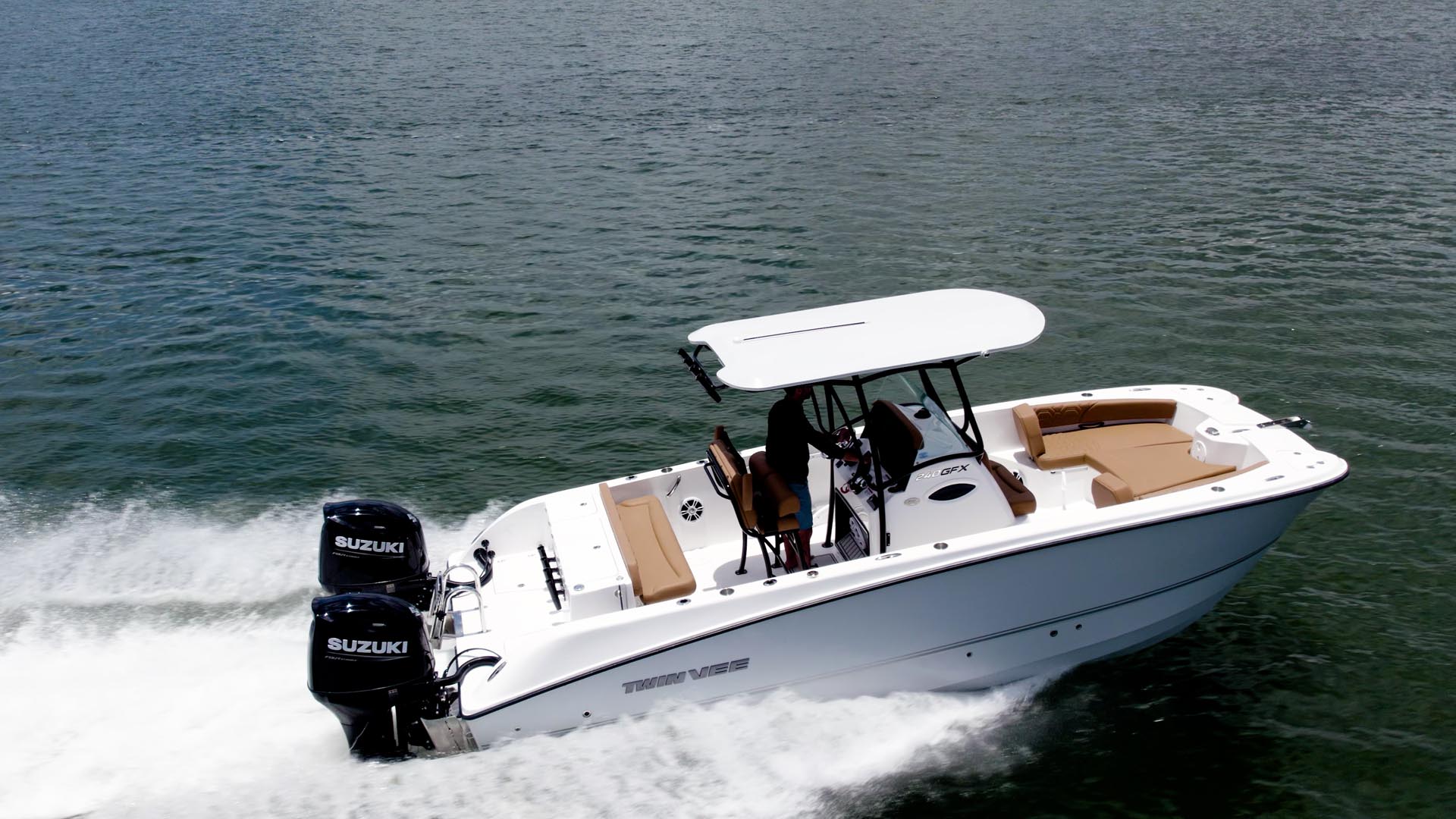

The World’s Best 24′ Center Console Has Arrived
We know you deserve better…You work hard and play SMART, so we have designed and created a Twin Engine Cat that will rise to every occasion and take you places in Style and Comfort that only true boaters and anglers understand. Our Newest Twin Vee is the 240 CC “Center Console” PowerCat, is an all-composite, multi-hull boat that is an exercise in form, function, stability, and ride quality. For those who want more deck space to fish, entertain or cruise without breaking the bank, the all-new 240 Center Console PowerCat is what you have been dreaming of! Exceptional comfort with a premium interior makes every boating experience enjoyable whether you’re heading out for a quick day trip or escaping on an adventure to “get away from it all”. Time is your greatest luxury: spend it on a Twin Vee 240 Center Console PowerCat.
3D Interactive Walkthrough
Helm Station

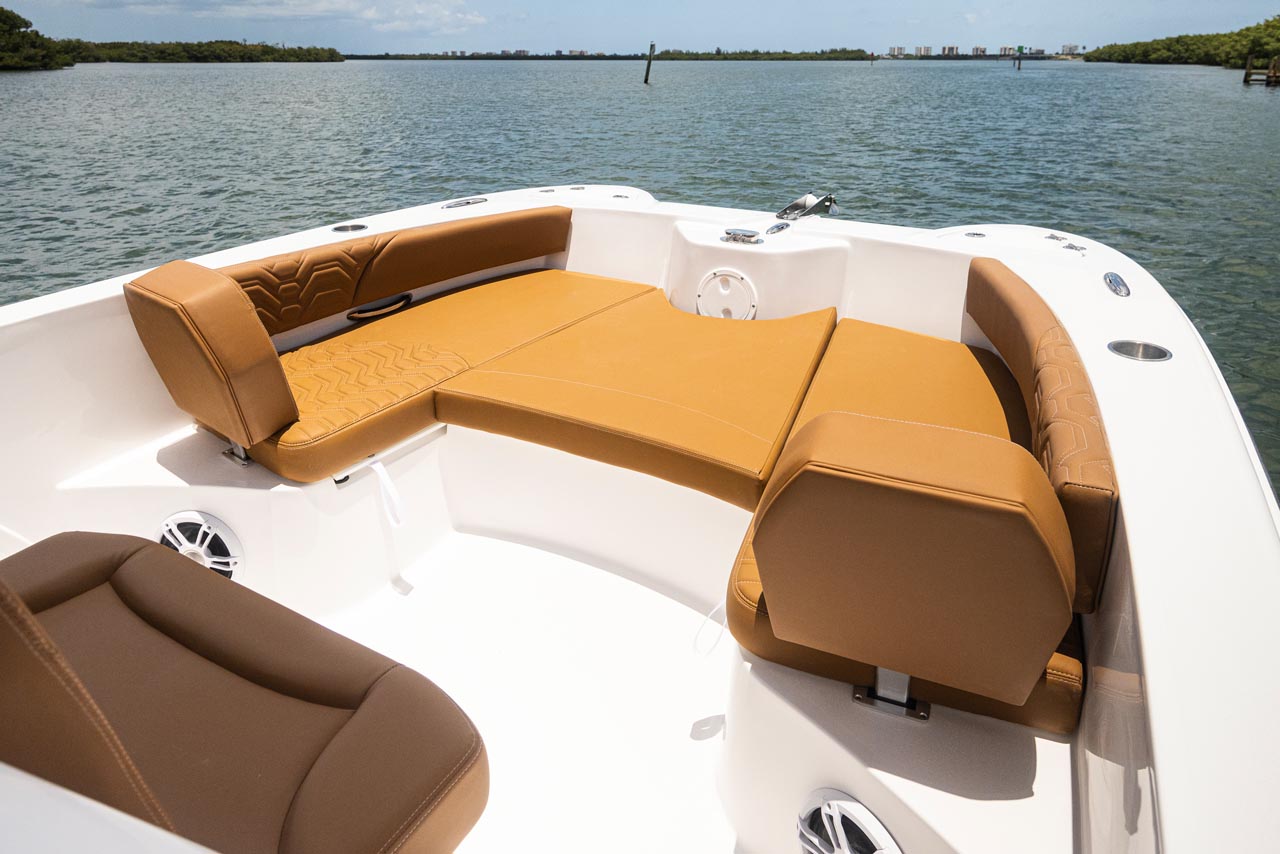

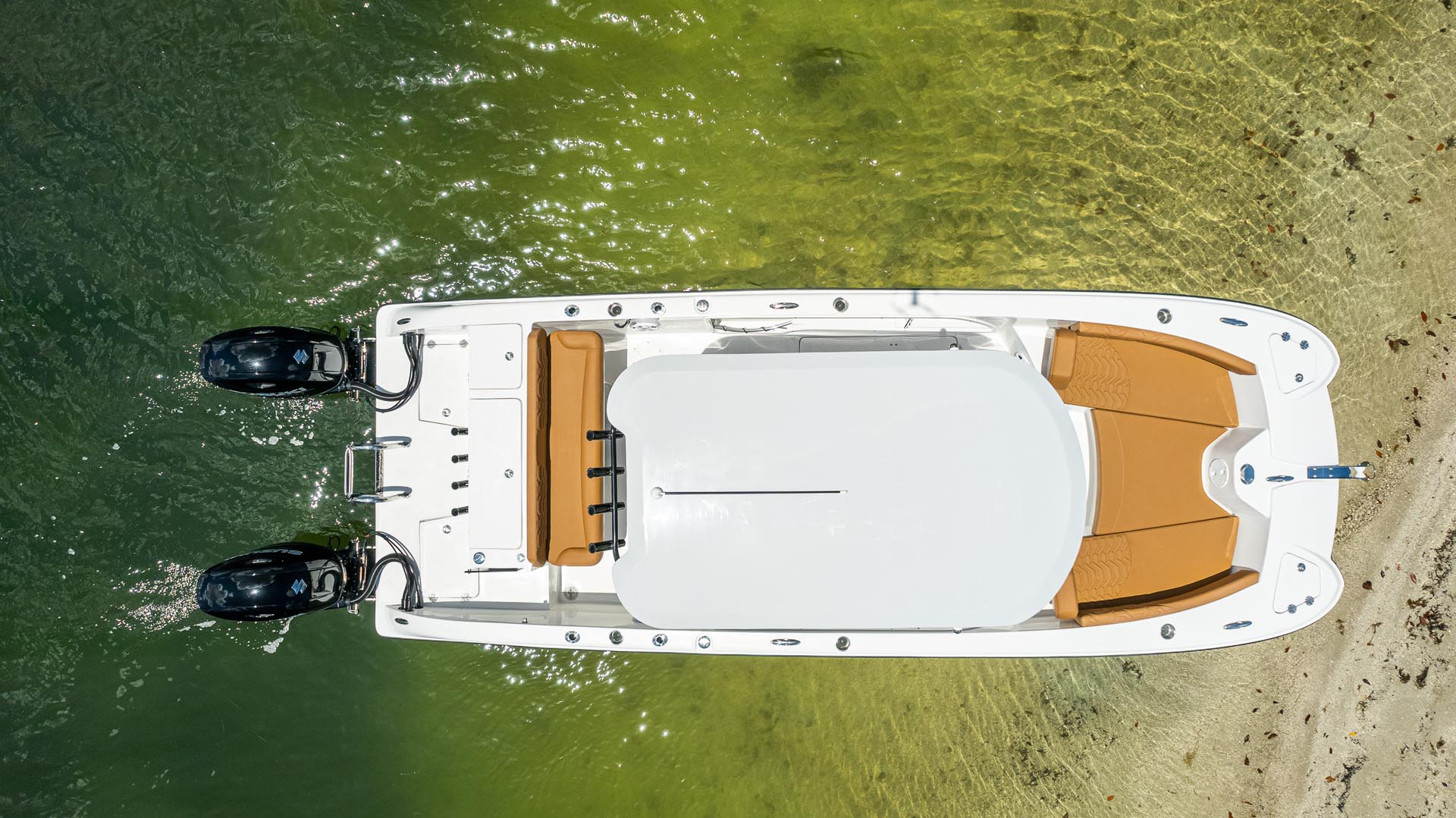

Open Bow Layout
Llebroc Helm Seating
Fold Down Aft Seating
Swim Platform and Ladder
Large Transom Livewell
240 GFX Specs
LOA
24′ 0″
LOA w/ Motors
26′ 11″
BEAM
8′ 8″
DRAFT
16″
DRY WEIGHT w/ Engines
3,400 lbs
BRIDGE HEIGHT
8′ 10″
TRAILER HEIGHT
11′ 8″
LIVEWELL
CAPACITY
40 Gallons
FUEL CAPACITY
98 Gallons
MAX POWER
300 HP
*Due to mandatory EPA regulations in fuel systems, usable fuel capacity is an estimation and may not reflect actual capacity
240 GFX Standards
Hull and Deck
- 8” Stainless Steel Pull-up Cleats – (7)

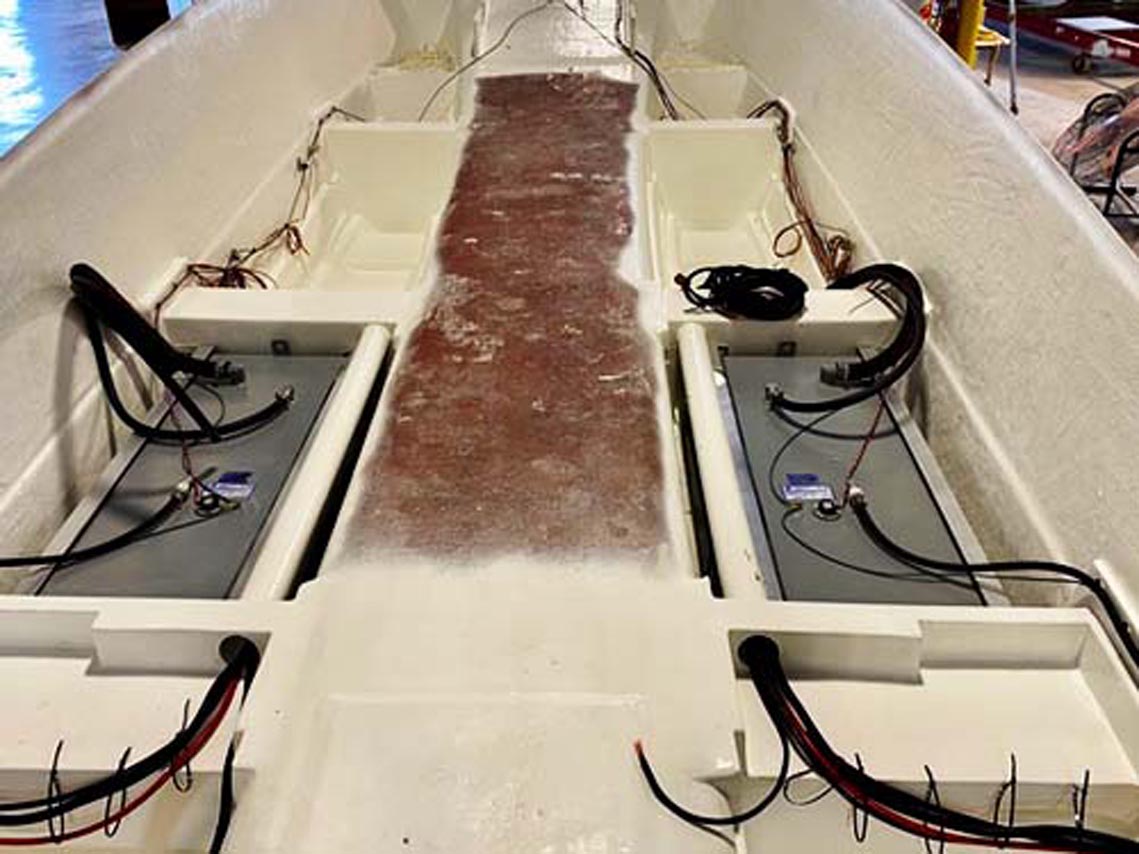

- Advanced composite/resin stringer system
- Cup holders: Stainless Steel (8) (2)-Console, (3) per side gunwale
- Drain covers: Stainless Steel w/Twin Vee Logo
- Fuel Cells “Florida Marine Tanks” 45 Gallon each x 2 w/Fuel Level Sensor
- Gel Coat Color: White as standard
- Grip Tek – yacht style non-skid

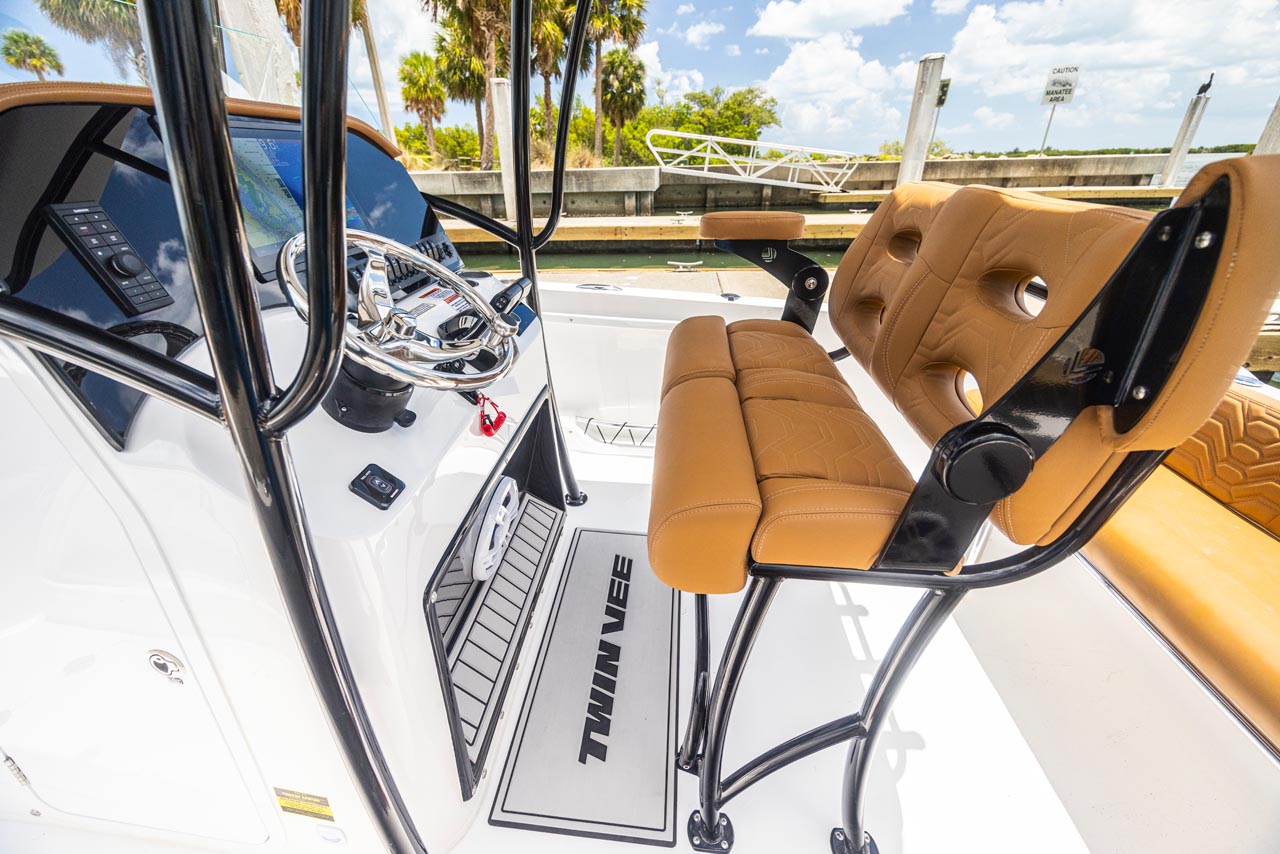

- High-Quality EVA decking – covers the port/stbd Fish Box Lids and Anti-fatigue Helm Pad & Foam Fish Ruler
- In-Deck fish boxes/storage Macerated, Port & Stbd
- Rod Holders: (6) Stainless Steel – 3 per side gunwale & (4) on aluminum pipe seating
- Rod Holders: Aluminum transom mounted “Euro” rod holders (4) mounted on exterior transom wall

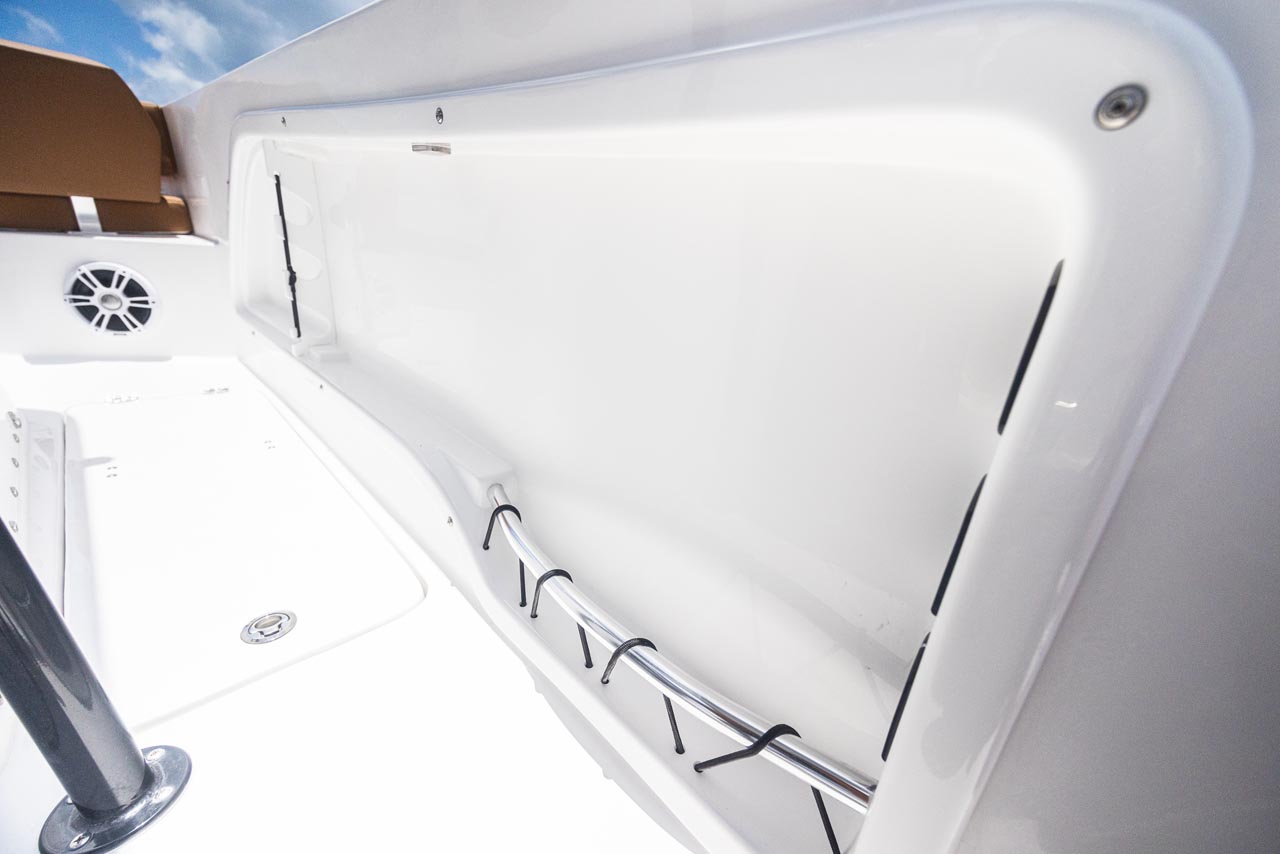

- Rod Storage, Under Gunwale, Thermoformed & Flush Mounted
- Rub Rail: High-density PVC, white or black
- Stainless Steel Bow and Stern Tow Eyes – (3)

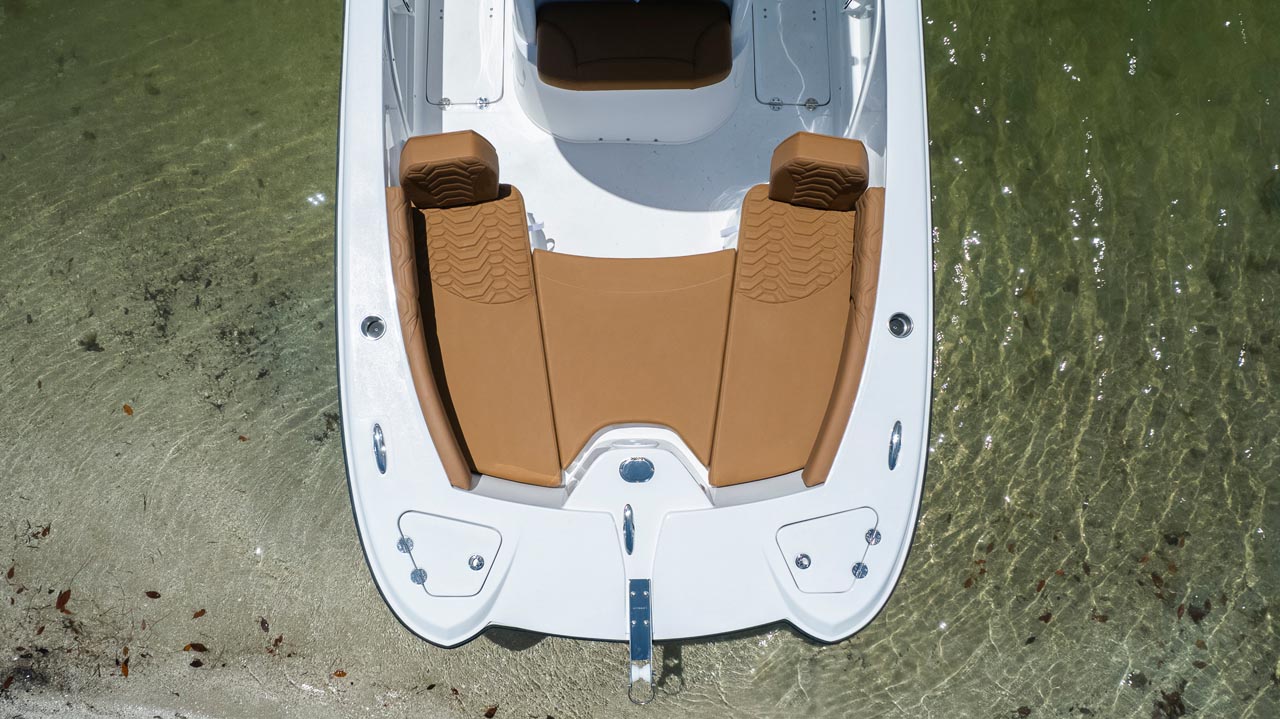

- Stainless Steel Bow Roller
- Stainless Steel Transom Boarding Ladder with Handrails
- Tension hinges: Stainless and Brass
- TH Marine Jack Plates
- Thru hulls: Stainless Steel

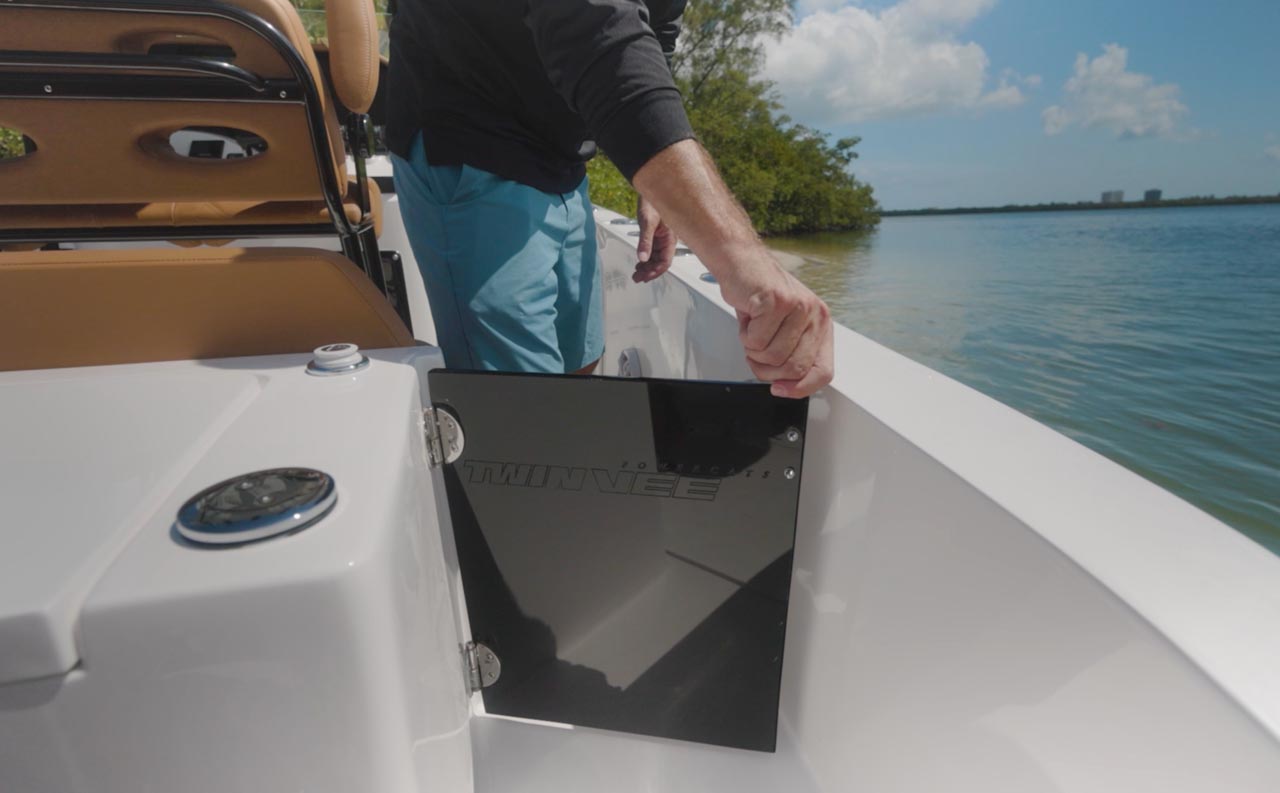

- Transom Walkthrough with Acrylic Swing Door and Latch
- Twin Vee logos, Model Designator logo
- Upper Bow Storage with Molded Fiberglass Hatches
- Wash down: Raw water washdown, stern
Electronics, Console & Helm
- 3 Spoke Polished Steering Wheel w/ Turning Knob
- 3 Bank battery charger
- ABYC Standard Fire extinguisher
- Acrylic Dash Panel w/ large surface area for electronics

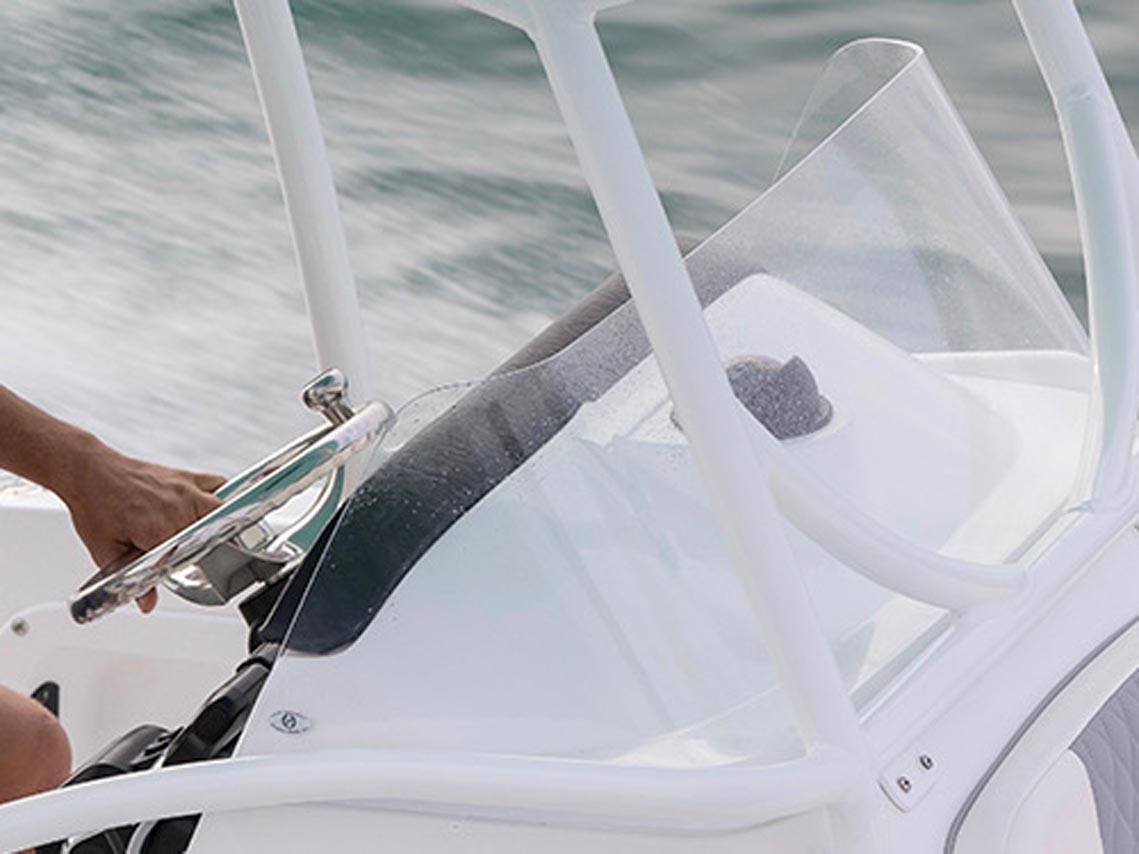

- Acrylic Windshield – 1 piece
- Battery selector with on/off switches (2)
- Center Sport Console w/ Forward Facing Integrated Fiberglass Upholstered Seating
- Electric Marine Horn

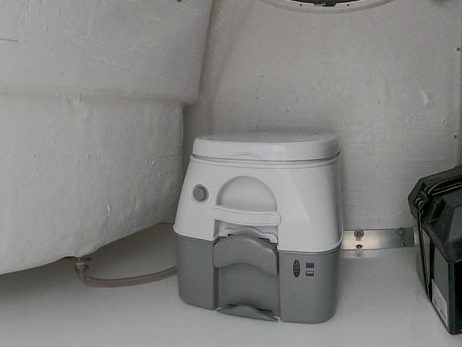

- Porta potti, self-contained
- Hydraulic Steering
- Ritchie Voyager Compass
- Stainless Steel Cup Holders (2)
- Switch panel: rocker switch panel, backlit
- Thermoformed & Flush Mounted Footrest (Black)
- USB and 12v receptacle with circuit breaker protection
- White Powder Coated Aluminum Door
Livewells, Pumps & Storage
- 2000 GPH Bilge pumps with float switches (2)
- Fresh Water Washdown Pump
- In-Deck Storage, Fiberglass Hatches, Diaphragm Pumps, Port & Stbd
- Large Transom Livewell with 800 GPH Pump
- Molded Stern Cooler, Fiberglass Hatch, Friction Hinges
- Raw Water Washdown Pump
T-top Features
- Flush-mounted spreader lights (2) forward/aft facing
- Integrated Anodized Aluminum T-top system w/ rod holders (4) flush mounted onto the console
- Molded Fiberglass hardtop w/ integrated E-box, acrylic door, recessed overhead LED lights
- Navigation lights, port & stbd
- Standard Lumitec anchor light, folding
Seating and Upholstery
- Anodized Aluminum Pipe seating with seat cushion, backrest

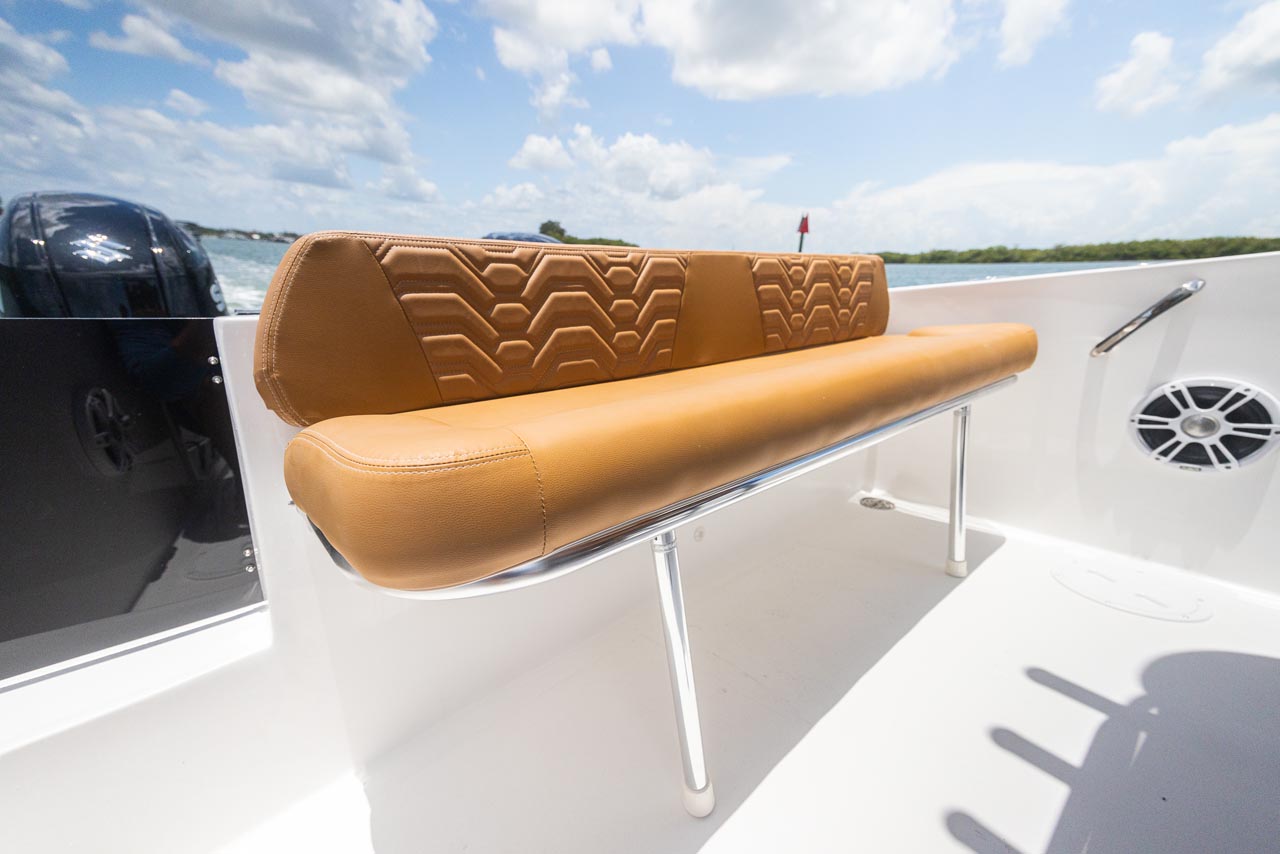

- Birdsall 65″ Aft Seating
- Bow Storage, Insulated and Dry, with Hatches, Friction Hinges
- Llebroc 42″ Helm Seat Standard mounted on Aluminum Leaning Post
240 GFX Options
Available Options
- Aluminum Powder Coat Gloss/Textured (White or Black)
- Aluminum Trolling Motor Bracket Mounted on Bow
- Fusion Basic or Premium Marine Grade Stereo Systems
- Gel Coat Colors: Ice Blue, Seafoam, or Whisper Gray
- Lewmar Stainless Pro Fish 700 Windlass
- Single 16″ Garmin Displays w/ Transducer
- Underwater LED Lighting (White, Blue, or Green)
240 GFX Power Options

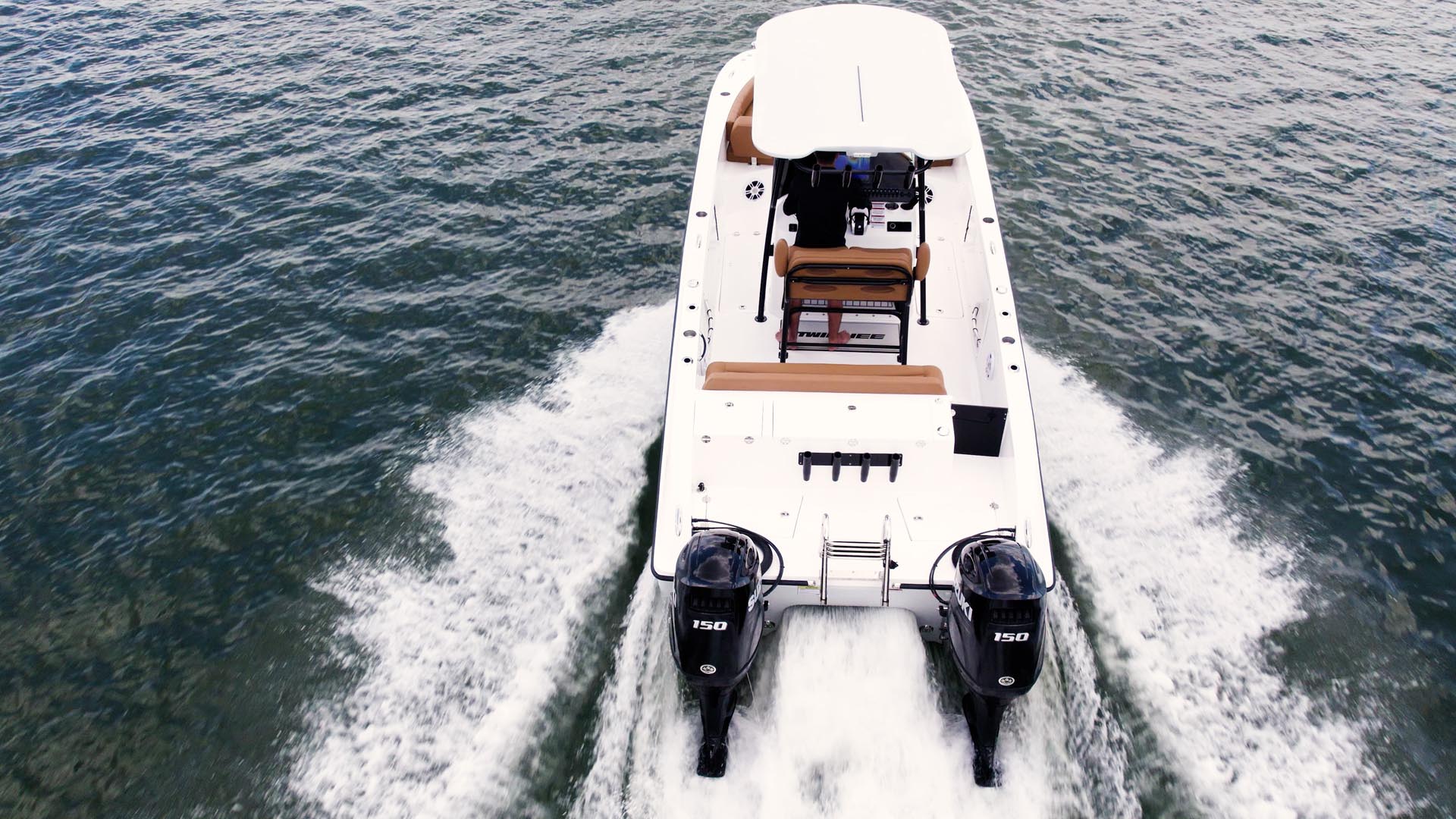

Twin Suzuki 150APX
Engine Type
DOHC 16-Valve
Displacement
174.9 (2867)
Max HP
150
Starting System
Electric
No. of Cylinders
4
Operating Range (RPM)
5000-6000
Weight
Mechanical L:511 X:522
Drive by Wire L:520 X:531
Alternator
12V 44A
Color Options
White, Black
LOA
24′ 0″
LOA w/ Motors
26′ 11″
BEAM
8′ 8″
DRAFT
16″
DRY WEIGHT w/ Engines
3,400 lbs
