The Twin Vee 280 Center Console STX has Arrived!

Ultimate performance, fuel efficiency, and stability at a price you’ll love. Meet the STX line.
The 280 STX offers upgraded performance, fuel efficiency, and stability over our original 280 model. With additional rod holders and a wide, open floor plan, our 280 is perfect for the professional angler and the sport fishing enthusiast alike.

280-GFX-CC-Gallery4
280-GFX-CC-Gallery1
280-GFX-CC-Gallery2
280-GFX-CC-Gallery3
280-GFX-CC-Gallery5
280-GFX-CC-Gallery6
280-GFX-CC-Gallery7
280-GFX-CC-Gallery10
280-GFX-CC-Gallery9
280-GFX-CC-Gallery11
280-GFX-CC-Gallery12
280-GFX-CC-Gallery8
280-GFX-CC-Gallery13
280-GFX-CC-Gallery14
280-GFX-CC-Gallery17
280-GFX-CC-Gallery16
280-GFX-CC-Gallery15
280-GFX-CC-Gallery18
280-GFX-CC-Gallery20
280-GFX-CC-Gallery19
280-GFX-CC-Gallery21
280-GFX-CC-Gallery22
280-GFX-CC-Gallery23
previous arrow
next arrow

3D Interactive Walkthrough

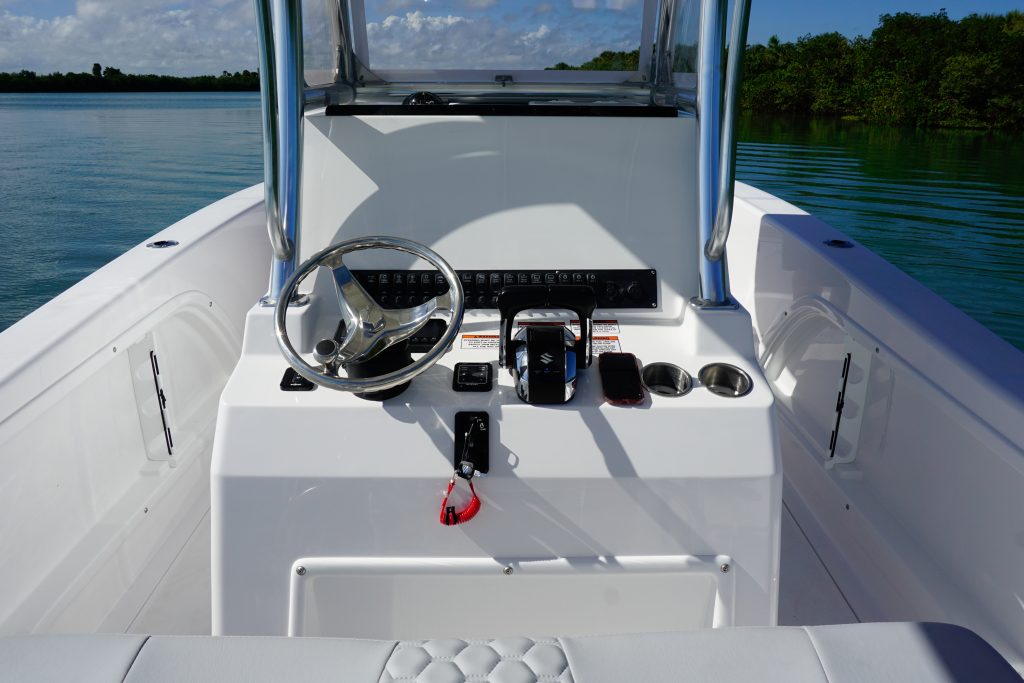

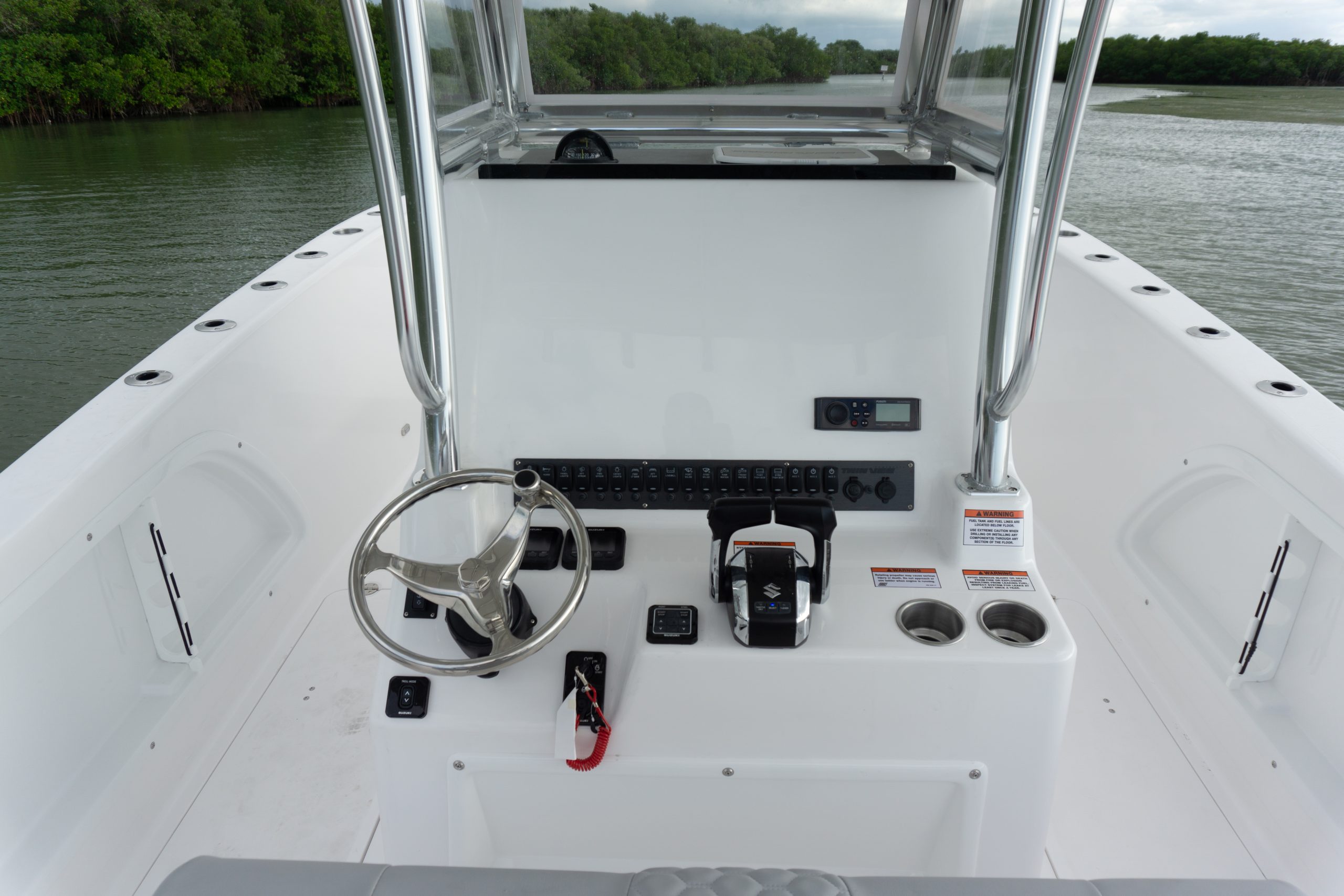

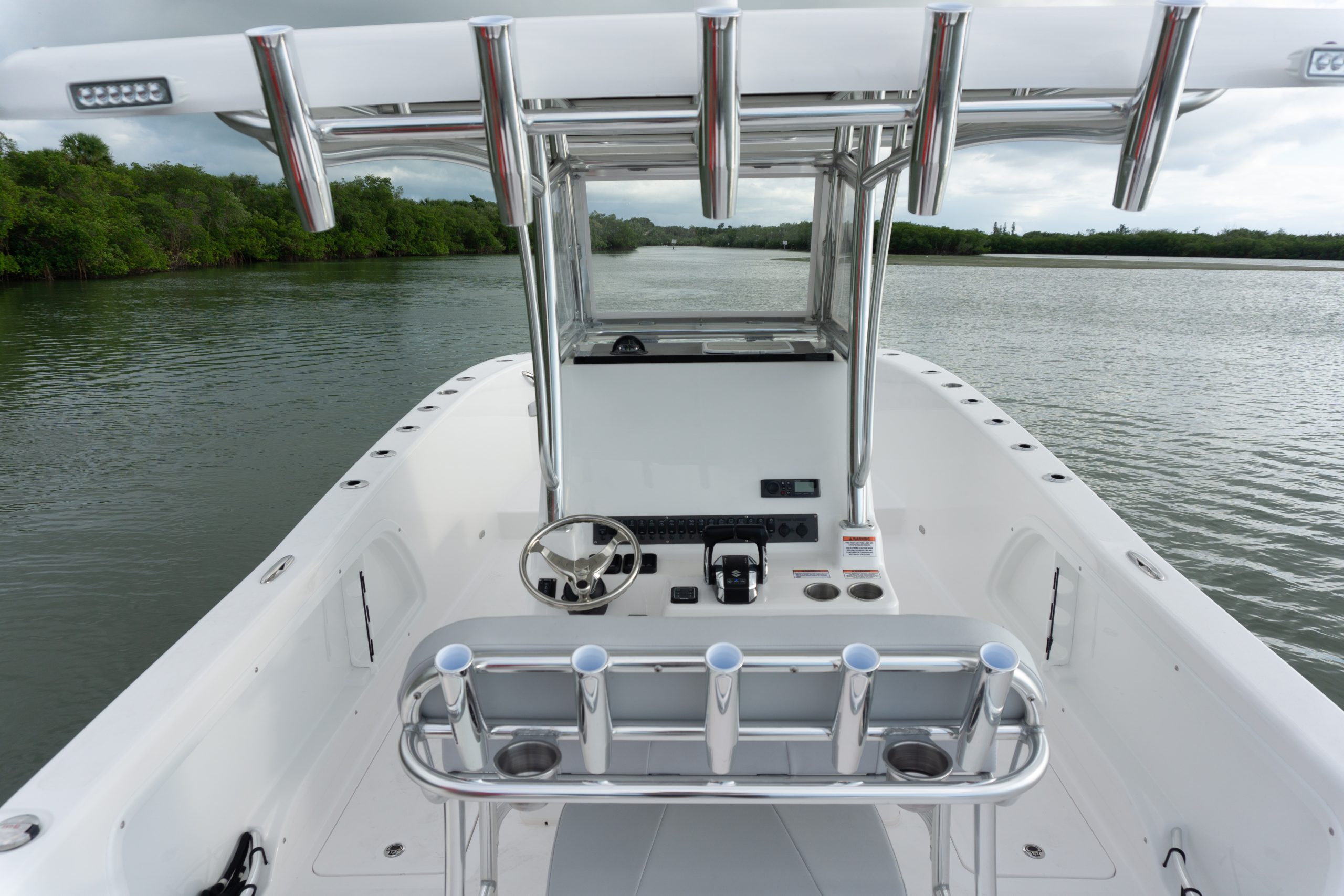

Helm Station

Spacious Swim Platform

Helm Seating

Rod Storage

Forward Seating and Storage

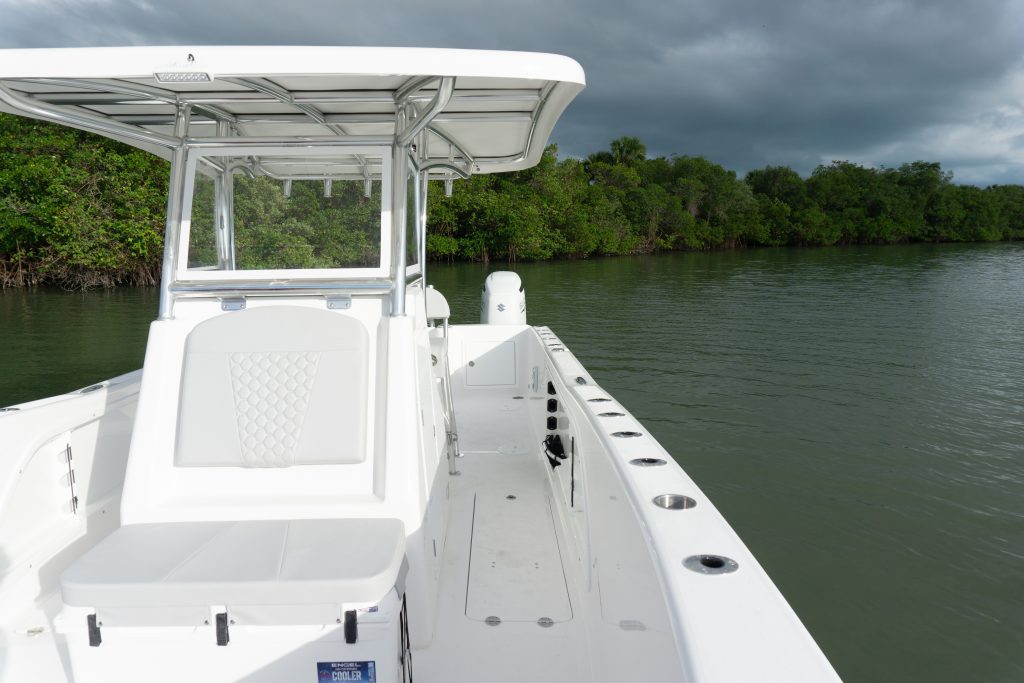

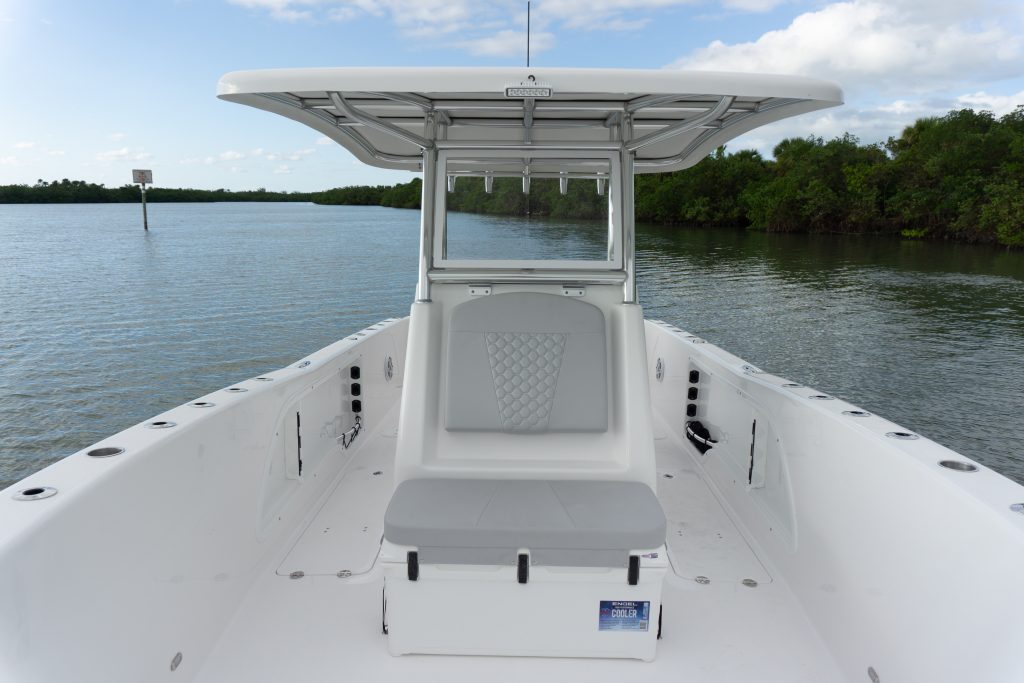

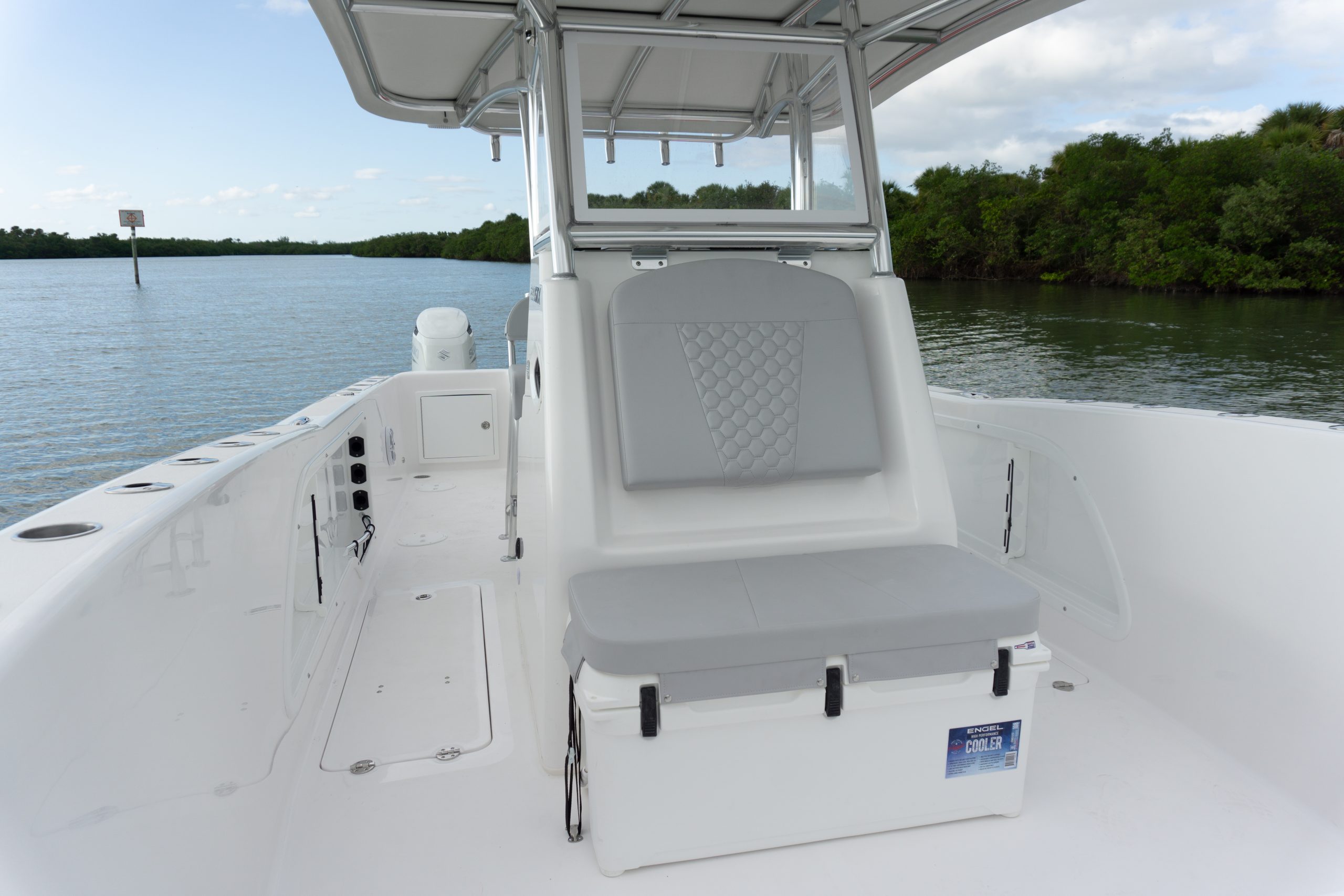

Console Cooler Seating

Stainless Rod Holders
Stainless Rod Holders

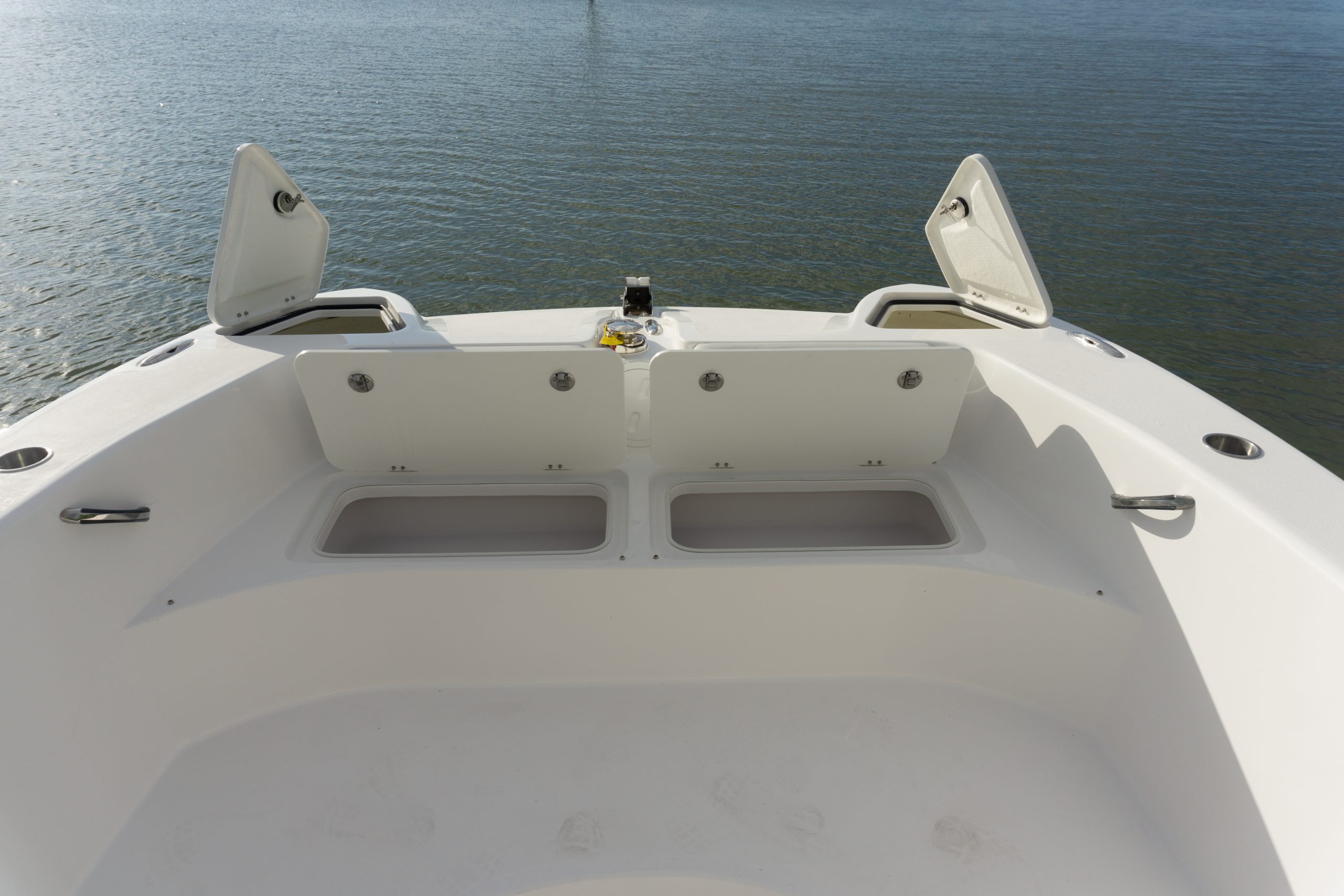

Upper Bow Storage
Upper Bow Storage
Pass-through Transom with Drop Board
Pass-through Transom with Drop Board
Under Gunnel Rod Storage
Under Gunnel Rod Storage
Molded Console Foot Rest
Molded Console Foot Rest
Stainless Cupholders
Stainless Cupholders
Aluminum 4-step Dive Ladder
Stainless Dropdown Swim Ladder
Richie Voyager Compass
Richie Voyager Compass
Premium Helm Seating
Premium Helm Seating
Port & Starboard Helm Seating Storage
Port & Starboard Helm Seating Storage
GG Schmidt Aft Seating
GG Schmidt Aft Seating
Fresh water tank and shower
Fresh water tank and shower
Forward and Aft Lightbars
Forward and Aft Lightbars
Battery Charger Port
Battery Charger Port
Dash drybox storage with USB
Dash drybox storage with USB
Courtesy Lights
Courtesy Lights
Chaise Lounge Seating
Chaise Lounge Seating

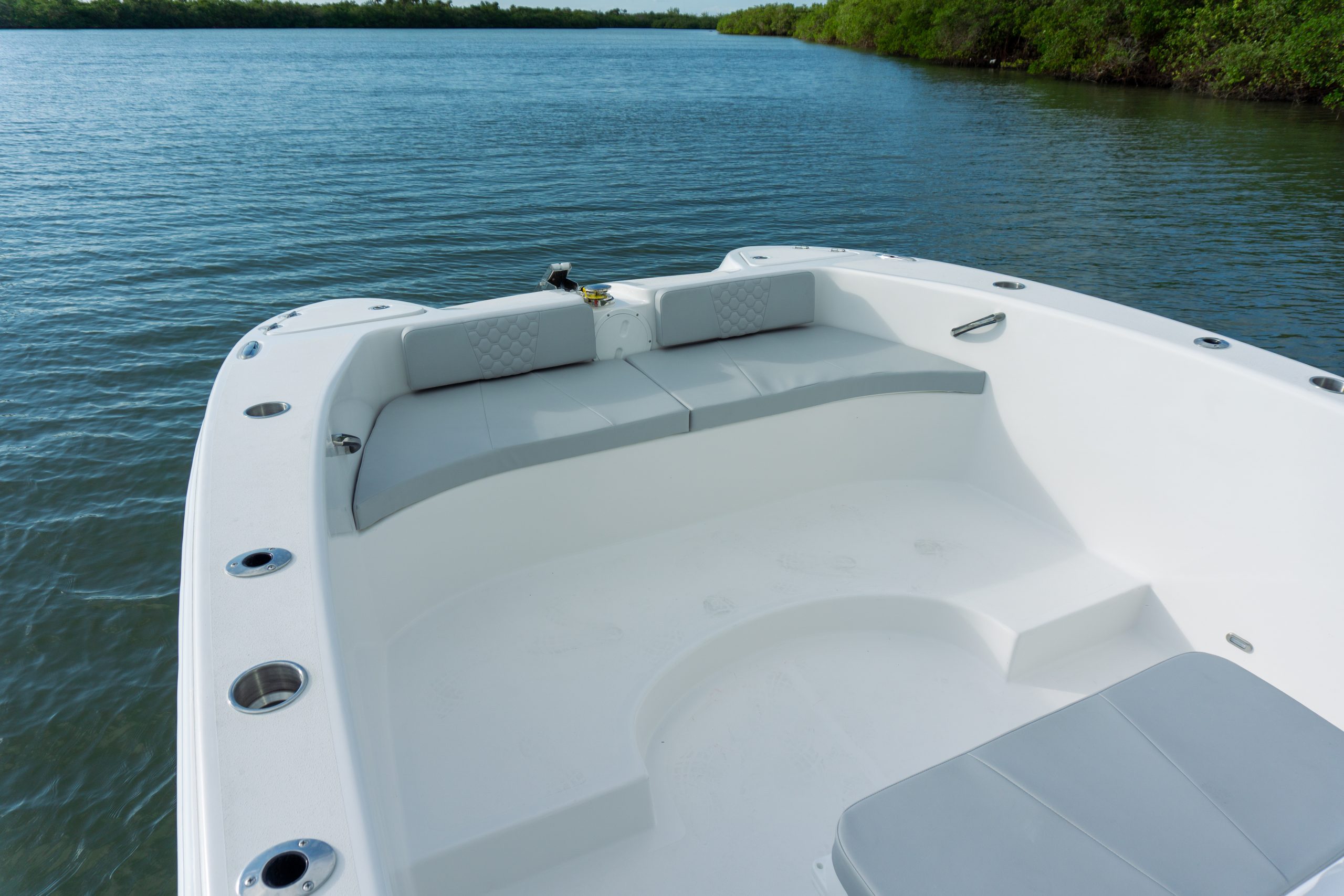

Bow Seating
Bow Seating
Black Acrylic Dash
Black Acrylic Dash
Aft Tackled and Storage Center
Aft Tackled and Storage Center
previous arrow
next arrow

280 STX Specs

LOA

28′ 0″

BEAM

9′ 6″

DRAFT

20″

FUEL CAPACITY

2/115 Gallons

MAX POWER

2/300 HP


LIVEWELL CAPACITY

40 Gallons

DRY WEIGHT w/ Engines

8,200 lbs

*Due to mandatory EPA regulations in fuel systems, usable fuel capacity is an estimation and may not reflect actual capacity

280 STX Standards

Hull and Deck

  • 8” Stainless Steel Pull-up Cleats – (7)
  • Advanced composite/resin stringer system
  • Cup holders: Stainless Steel (6) (2)-Console, (2) per side gunwale
  • Drain covers: stainless steel w/Twin Vee Logo
  • Fuel Cells “Florida Marine Tanks” 115 Gallon each x 2 w/Fuel Level Sensor
  • Gel Coat Color: White as standard
  • Grip Tek – yacht-style non-skid
  • In-Deck fish boxes/storage Macerated, Port & Stbd
  • Platinum Accent Stripe
  • Rod holders: (16) Stainless Steel – 8 per side gunwale & (4) on aluminum pipe seating
  • Rod Storage, Under Gunwale, Thermoformed & Flush Mounted
  • Rub Rail: High-density PVC, white or black
  • Stainless Marine Outboard Brackets
  • Stainless Steel Bow and Stern Tow Eyes – (3)
  • Stainless Steel Bow Roller
  • Stainless Steel Transom Boarding Ladder with Handrails
  • Tension hinges: Stainless and Brass
  • Thru hulls: Stainless Steel
  • Transom Walkthrough with drop board to Swim/Fish/Sun platform
  • Twin Vee logo, New STX Model Designator
  • Upper Bow Storage with Molded Fiberglass Hatches
  • Wash down: Raw water washdown, stern

Console, Helm, and T-top Features

  • 3 Spoke Polished Stainless Steering Wheel w/ Turning Knob
  • ABYC Standard Fire Extinguisher
  • Acrylic Windshield – 3 Sided

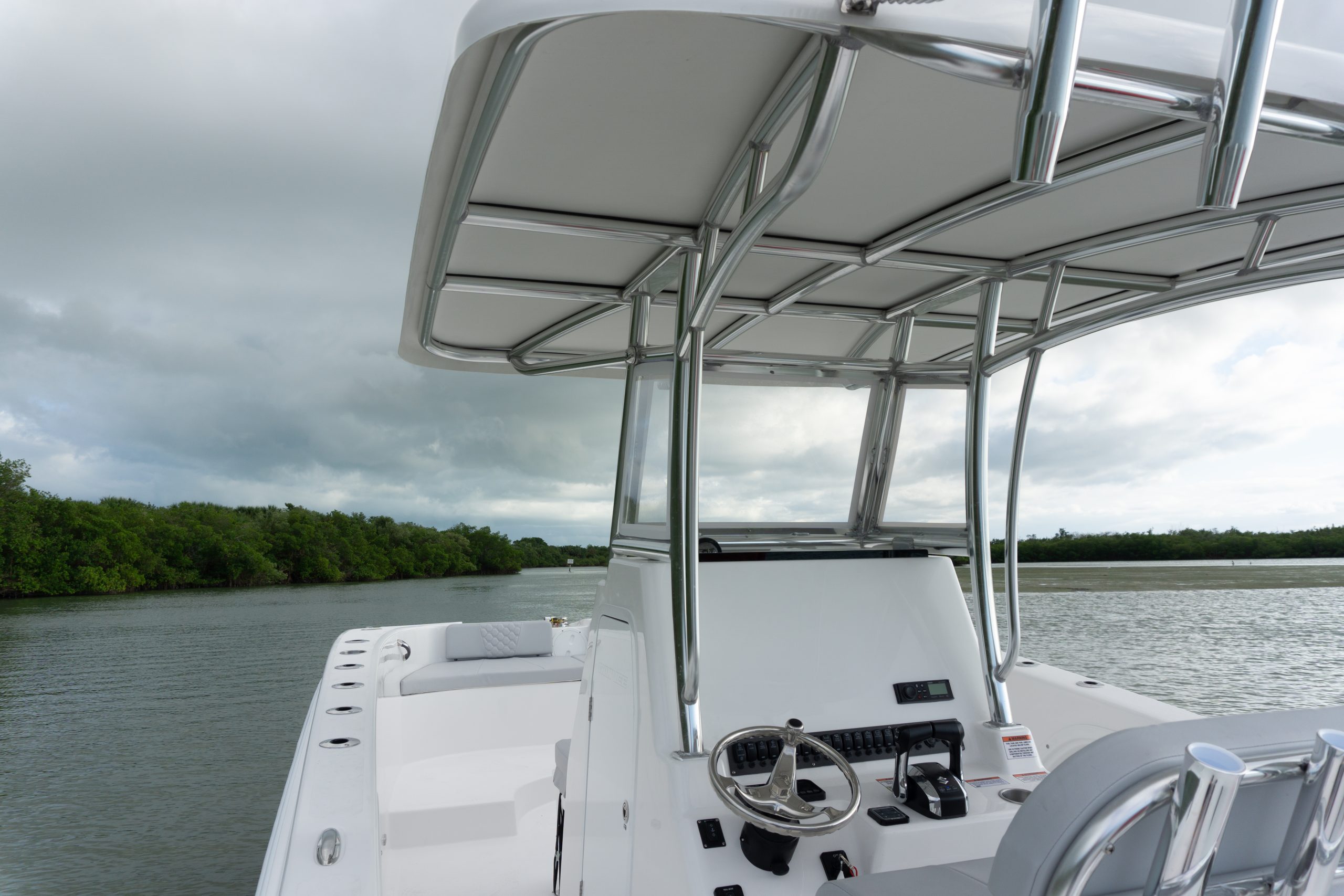

  • Anodized Aluminum T top with Fiberglass Pan Top
  • Battery selector with on/off switches (2)
  • Center Sport Console w/ Forward Facing 123QT Upholstered Cooler Seating
  • Electric Marine Horn
  • Extra-large dash surface for electronics
  • Navigation lights, port & stbd
  • Porta Potti, self-contained
  • QMI Hydraulic Steering
  • Ritchie Voyager Compass
  • Stainless Steel Cup Holders (2)
  • Standard Lumitec anchor light, folding
  • Switch panel: rocker switch panel, backlit
  • Thermoformed & Flush Mounted Footrest (White)
  • USB and 12v receptacle with circuit breaker protection
  • White Powder Coated Aluminum Door

Livewells, Pumps & Storage

  • 2000 GPH Bilge pumps with float switches (2)
  • In-Deck Storage, Fiberglass Hatches, Diaphragm Pumps, Port & Stbd
  • Mechanical access panels, Port & Stbd, for the bilge, pumps, filters
  • Raw Water Washdown Pump

Seating and Upholstery

  • Bow Storage, Insulated and Dry, with Hatches, Friction Hinges
  • Bow Upholstered Bench Cushion w/ Backing
  • Chaise Lounge seating upholstered/contoured
  • Fiberglass Molded helm seat w/ integrated tackle centers/insulated livewell (50 Gal) w/ footrests
  • Premium GG Schmitt aft seating w/ polished stainless-steel port/stbd
  • Premium helm seating with armrests upholstered with marine-grade material

280 STX Options

Available Options

  • 3 Bank Battery Charger
  • Aluminum Trolling Motor bracket mounted on the bow
  • Dual 35 QT AFT coolers (Port & Stbd) with upholstery for seating
  • Fusion Basic or Premium marine grade stereo systems
  • Gel Coat Colors: Ice Blue or Whisper Gray
  • Lewmar Stainless v700 Windlass
  • Livewell (TBD) – Replaces the 65 QT Cooler under aluminum pipe seating
  • Underwater LED Lighting (White, Blue, or Green)
  • Upholstery Colors: White, Tan & Light Gray solid colored with a unique stitch pattern

280 STX Power Options

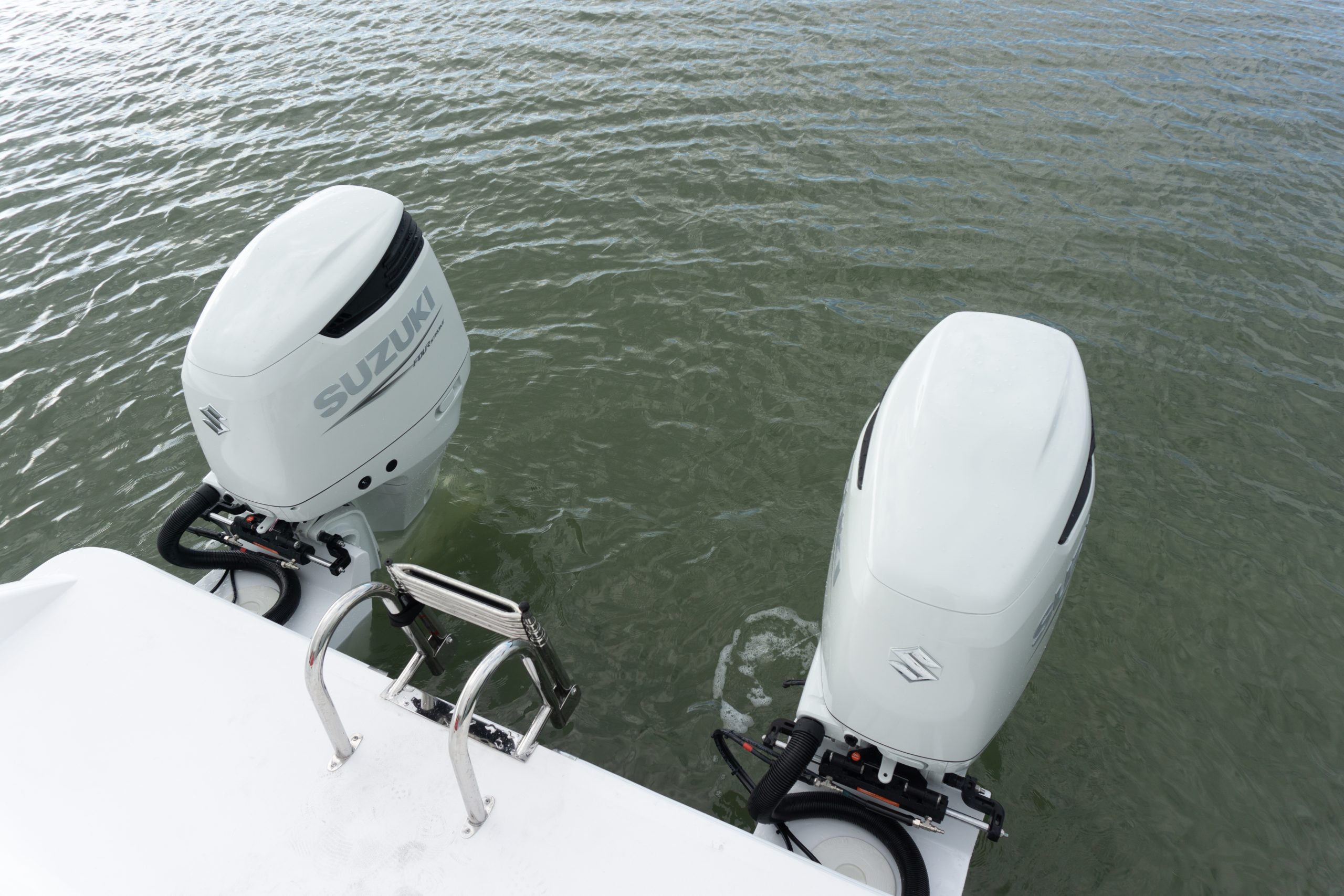

Twin Suzuki 300APXX3 w/ Power Steering

Engine Type
DOHC 16-Valve

Displacement
174.9 (2867)

Max HP
300

Starting System
Electric

No. of Cylinders
6

Operating Range (RPM)
5500-6100

Weight
639 lbs

Alternator
12V 44A

Color Options
White, Black

Twin Suzuki 250APXX3 w/ Power Steering

Engine Type
DOHC 16-Valve

Displacement
174.9 (2867)

Max HP
250

Starting System
Electric

No. of Cylinders
4

Operating Range (RPM)
5500-6100

Weight
639 lbs

Alternator
12V 44A

Color Options
White, Black
