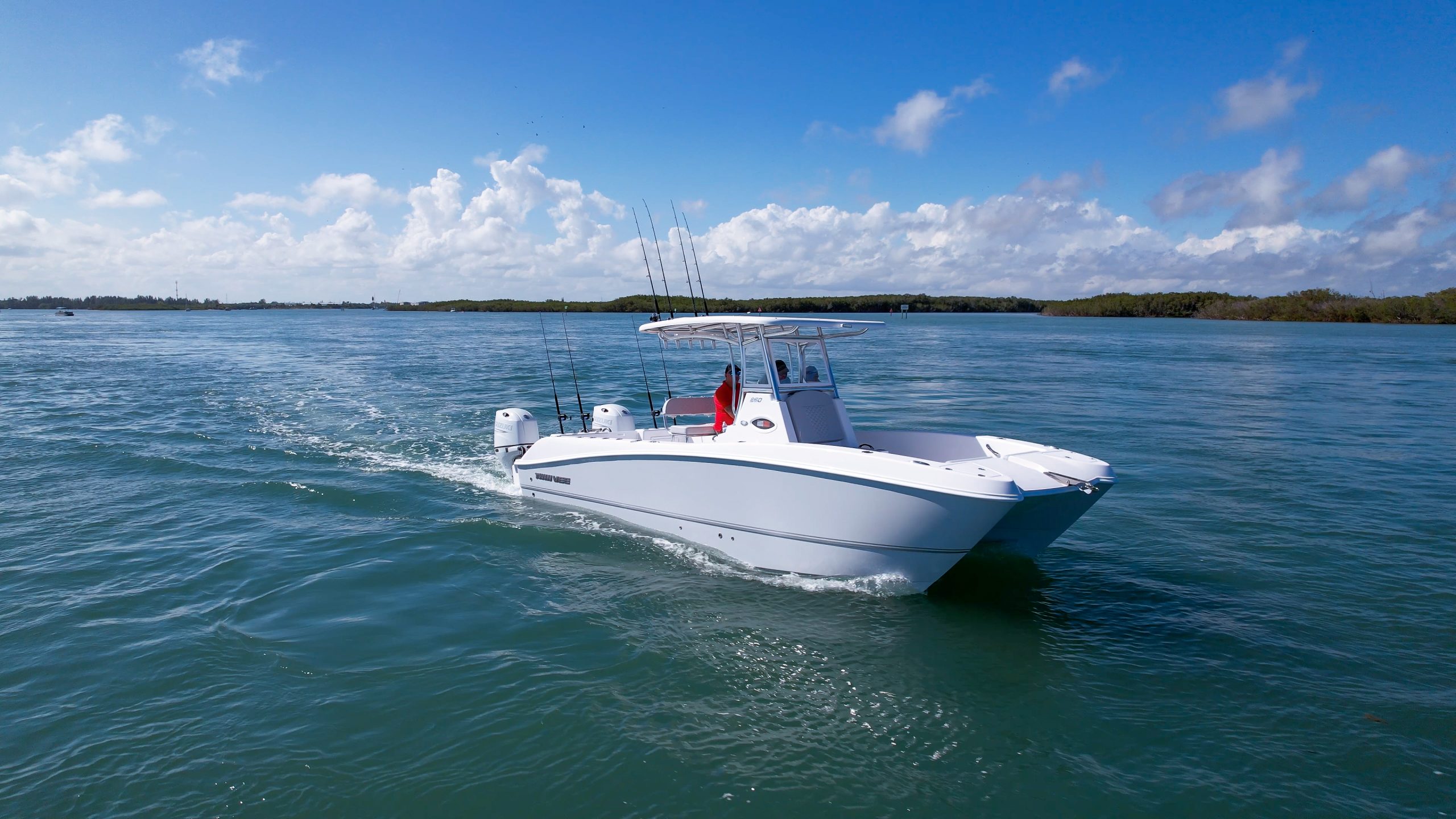

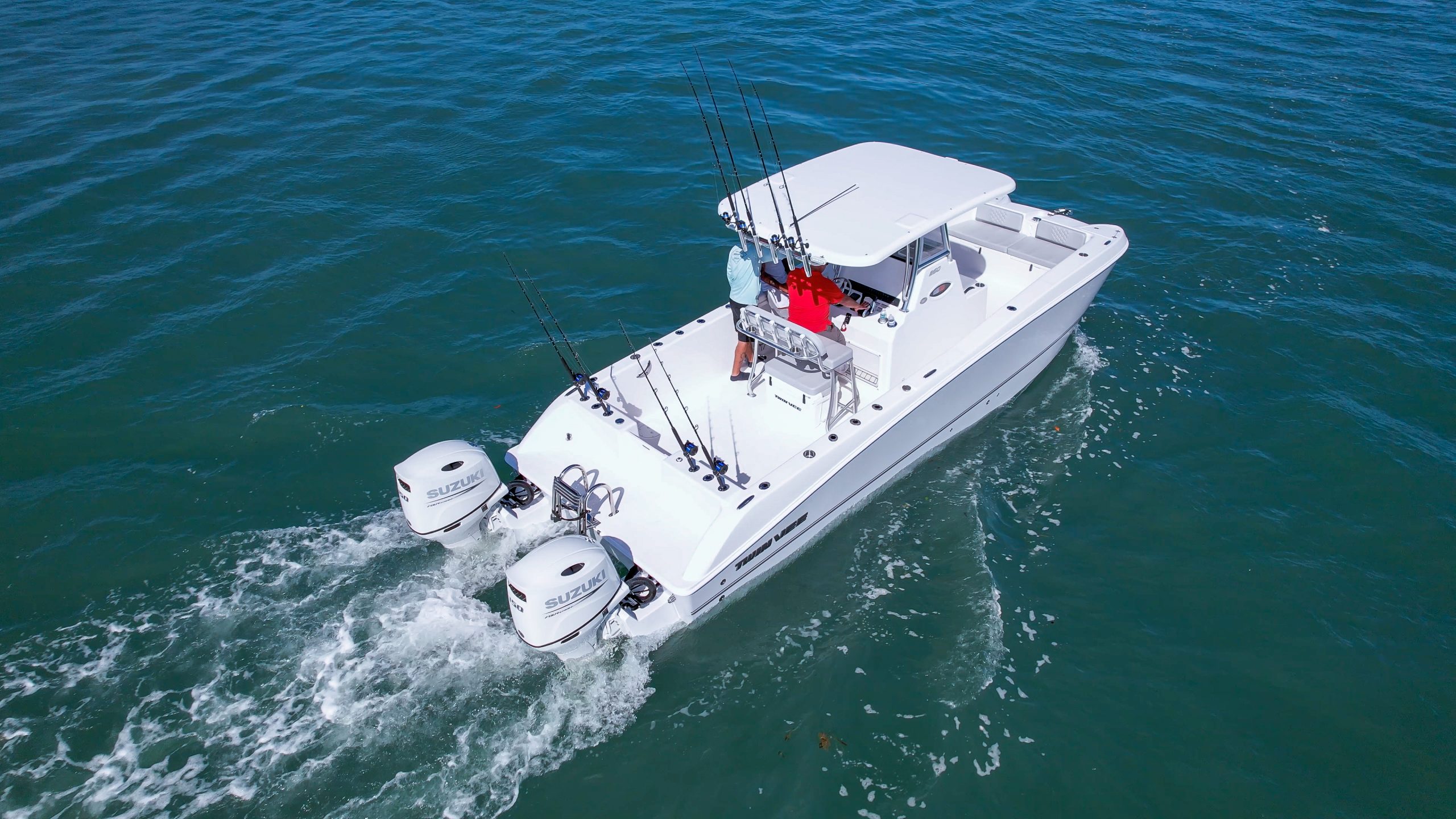

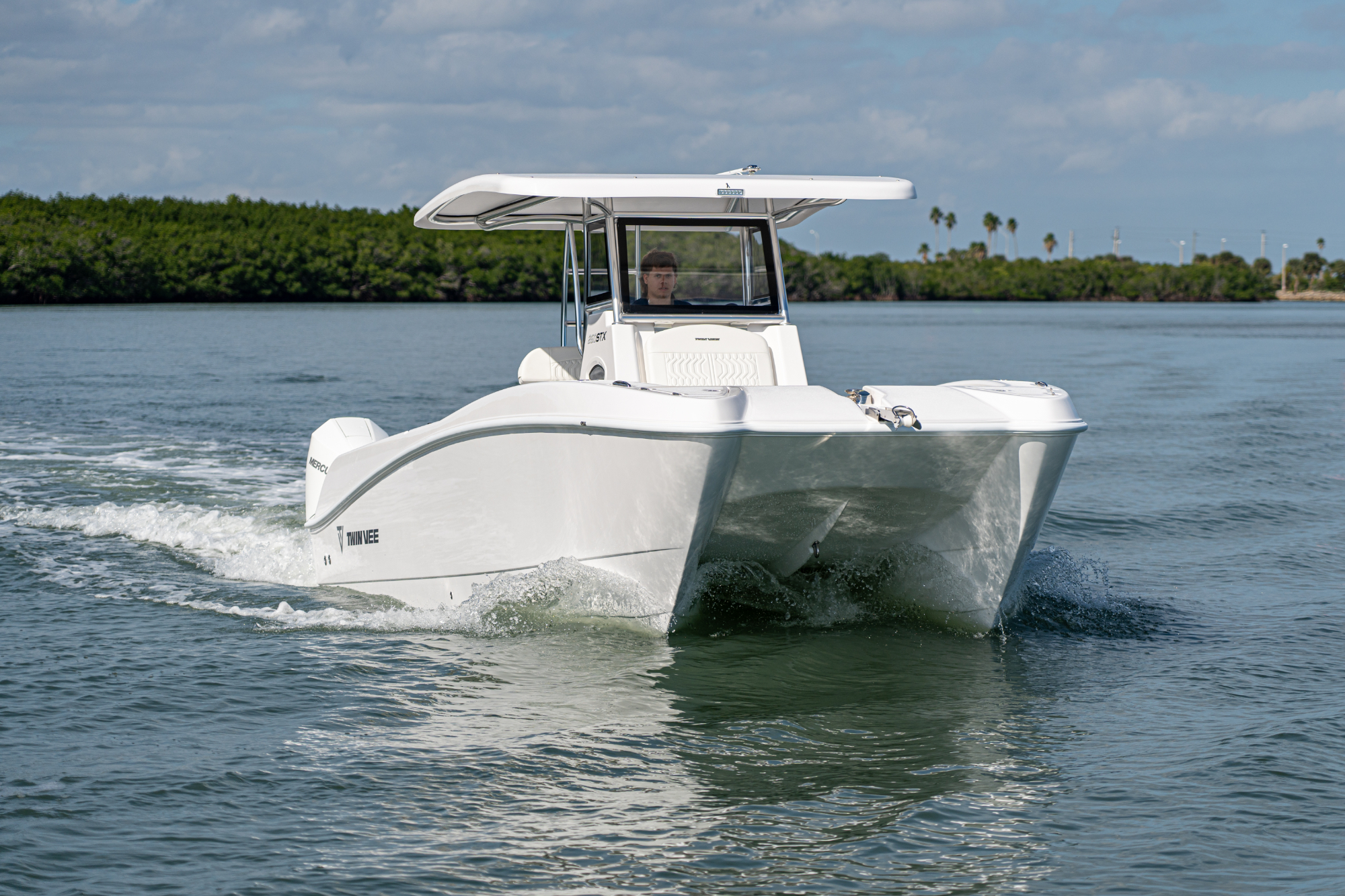

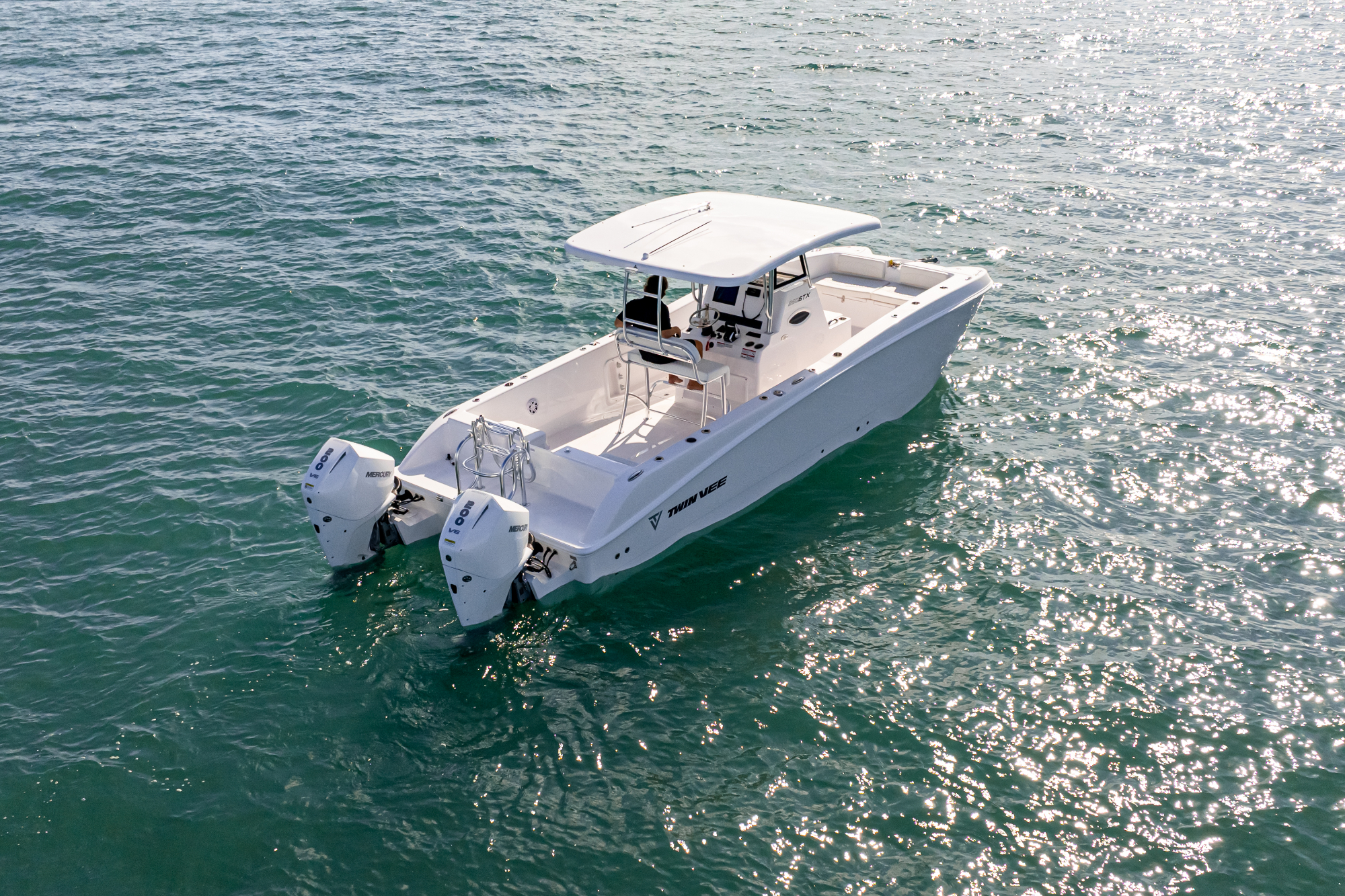

The Twin Vee 260 Center Console STX has Arrived!

Meet Twin Vee’s NEW 260 STX. Performance, Fuel Efficiency & Stability…the 260 STX has more sq. ft. Deck Space than ANY boat in its class. We pushed the limits of what is possible. Function defines form. Every aspect of the 260 STX was designed to pursue PEAK Performance and Ride Stability.

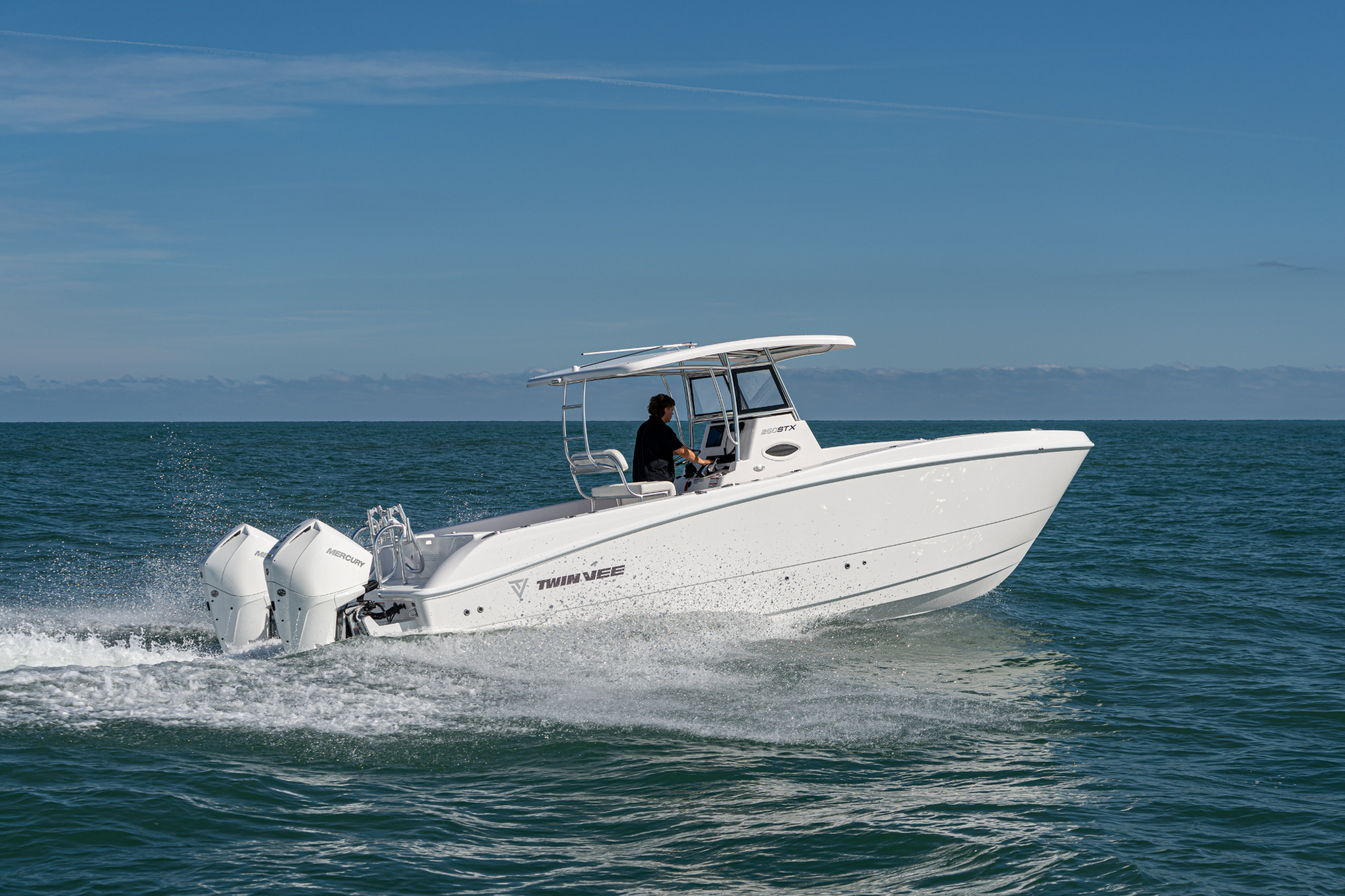

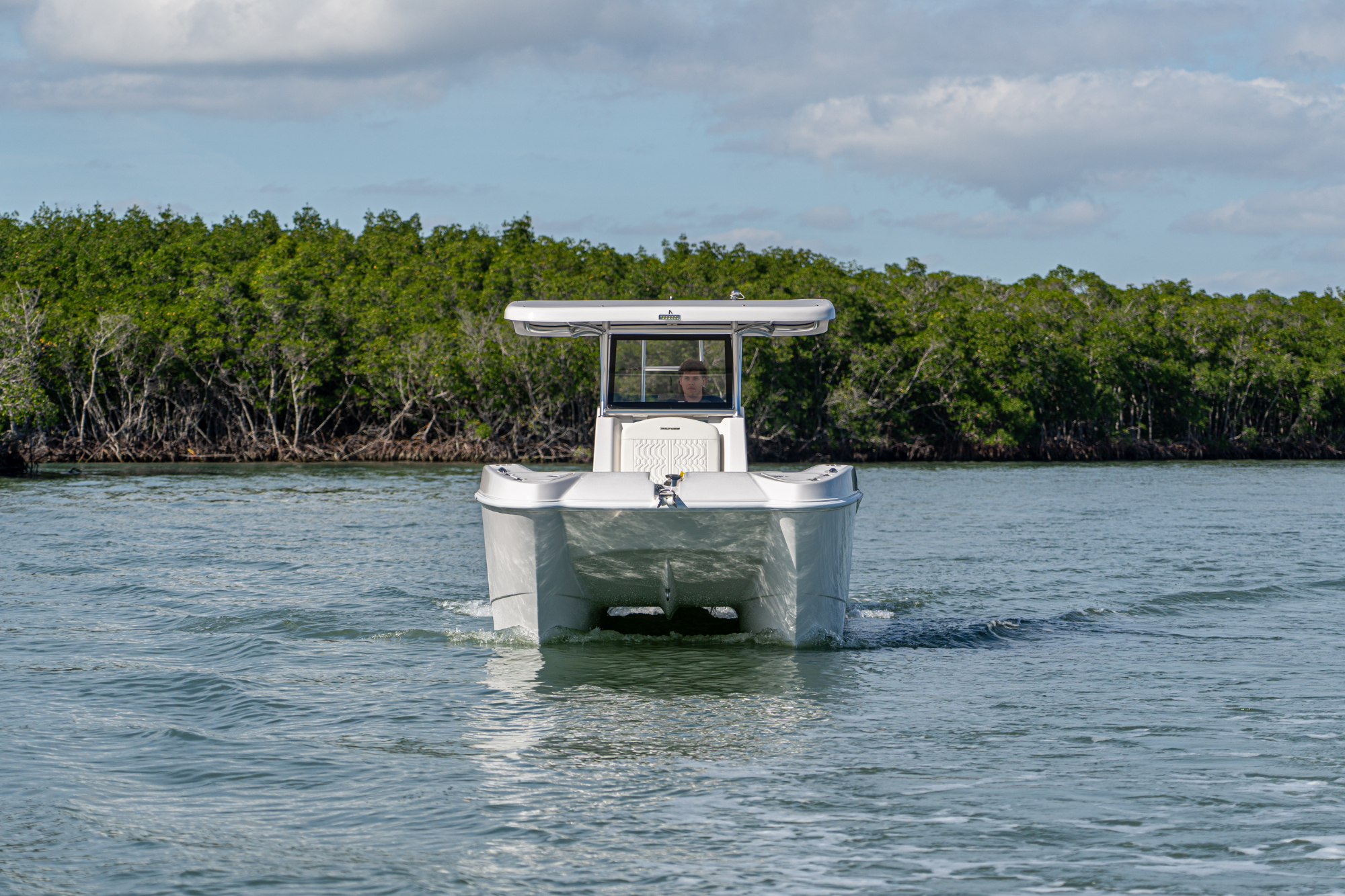

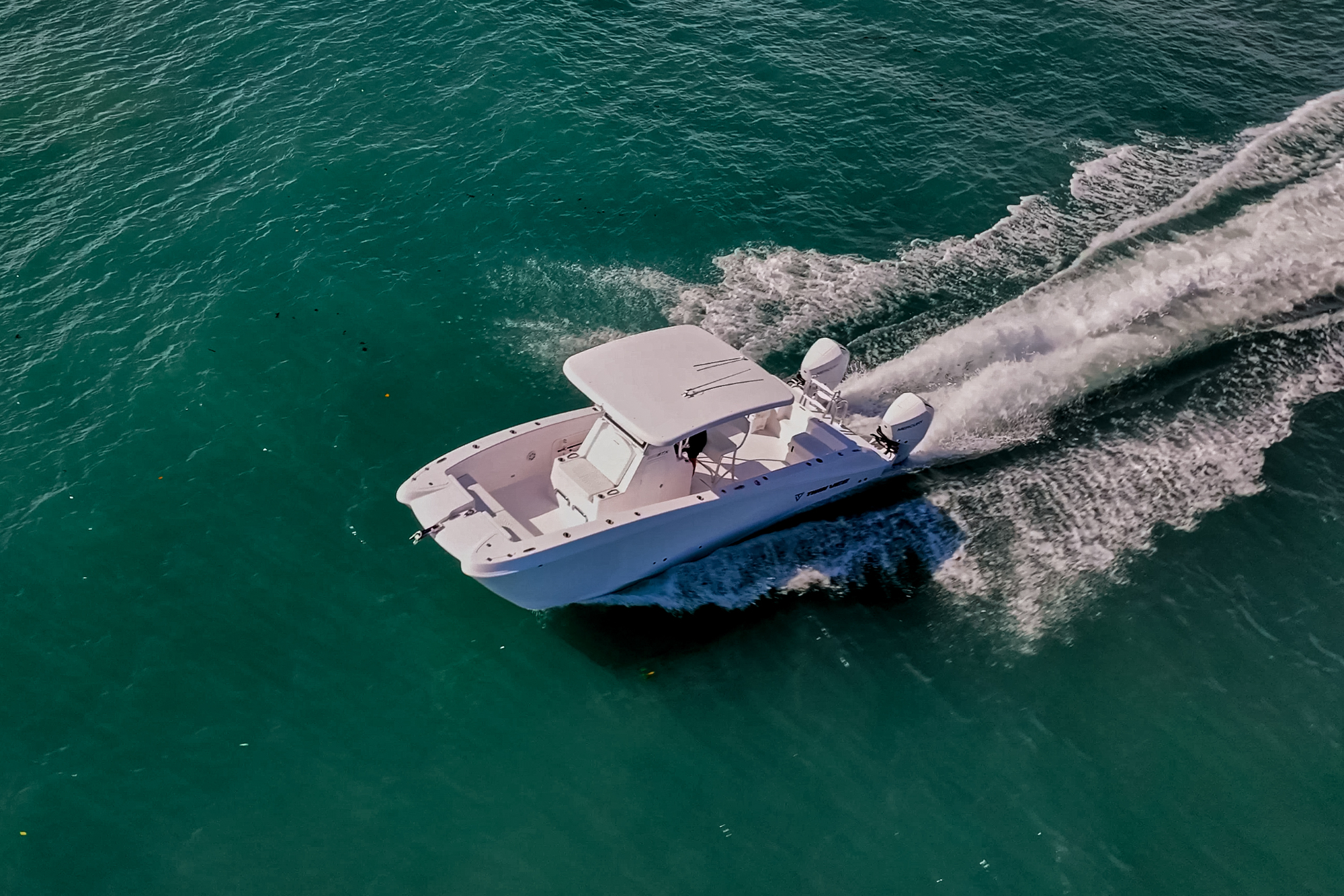

260CC STX
260 CC STX
260 CC STX
260 CC STX
previous arrow
next arrow

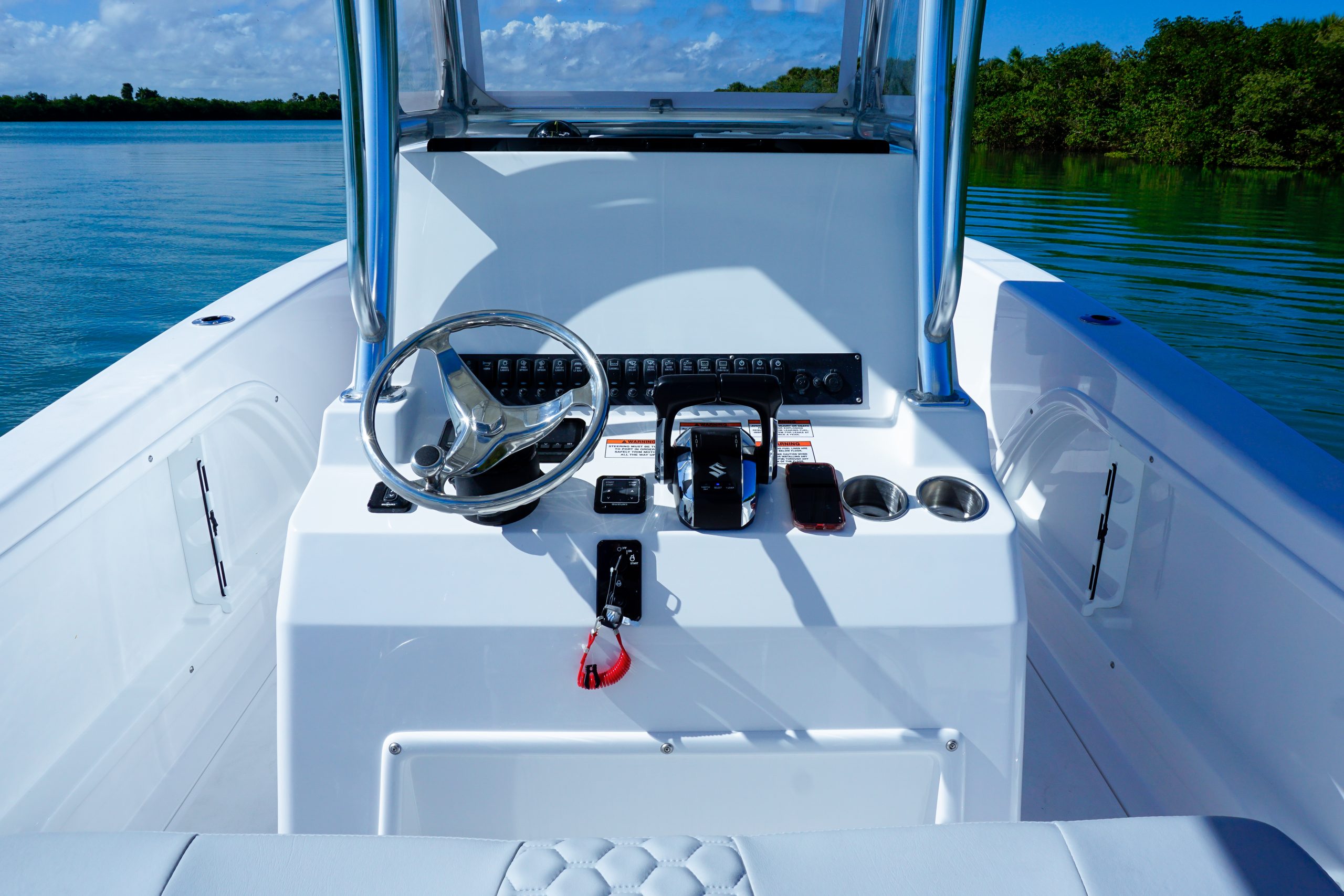

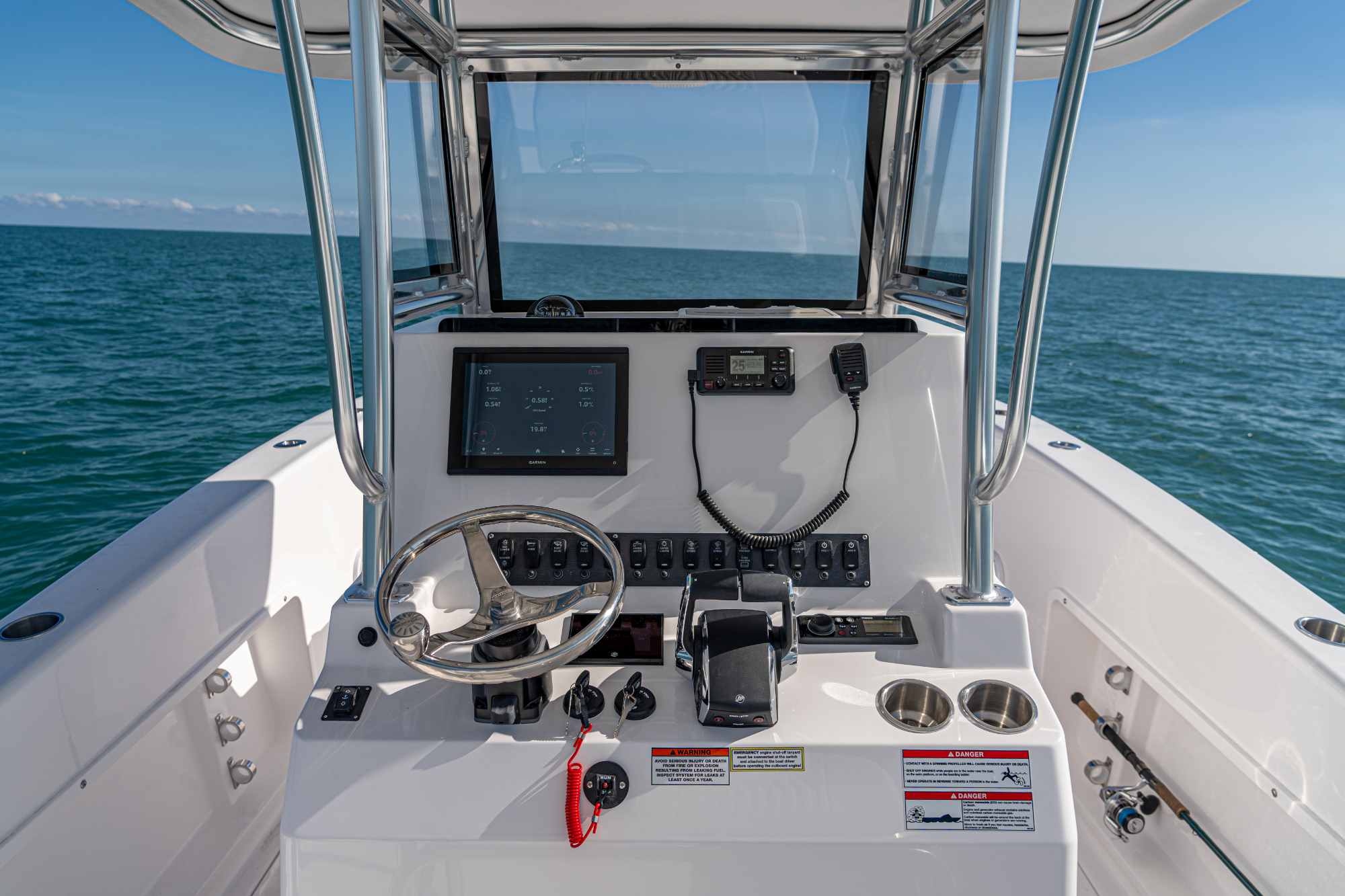

Helm Station

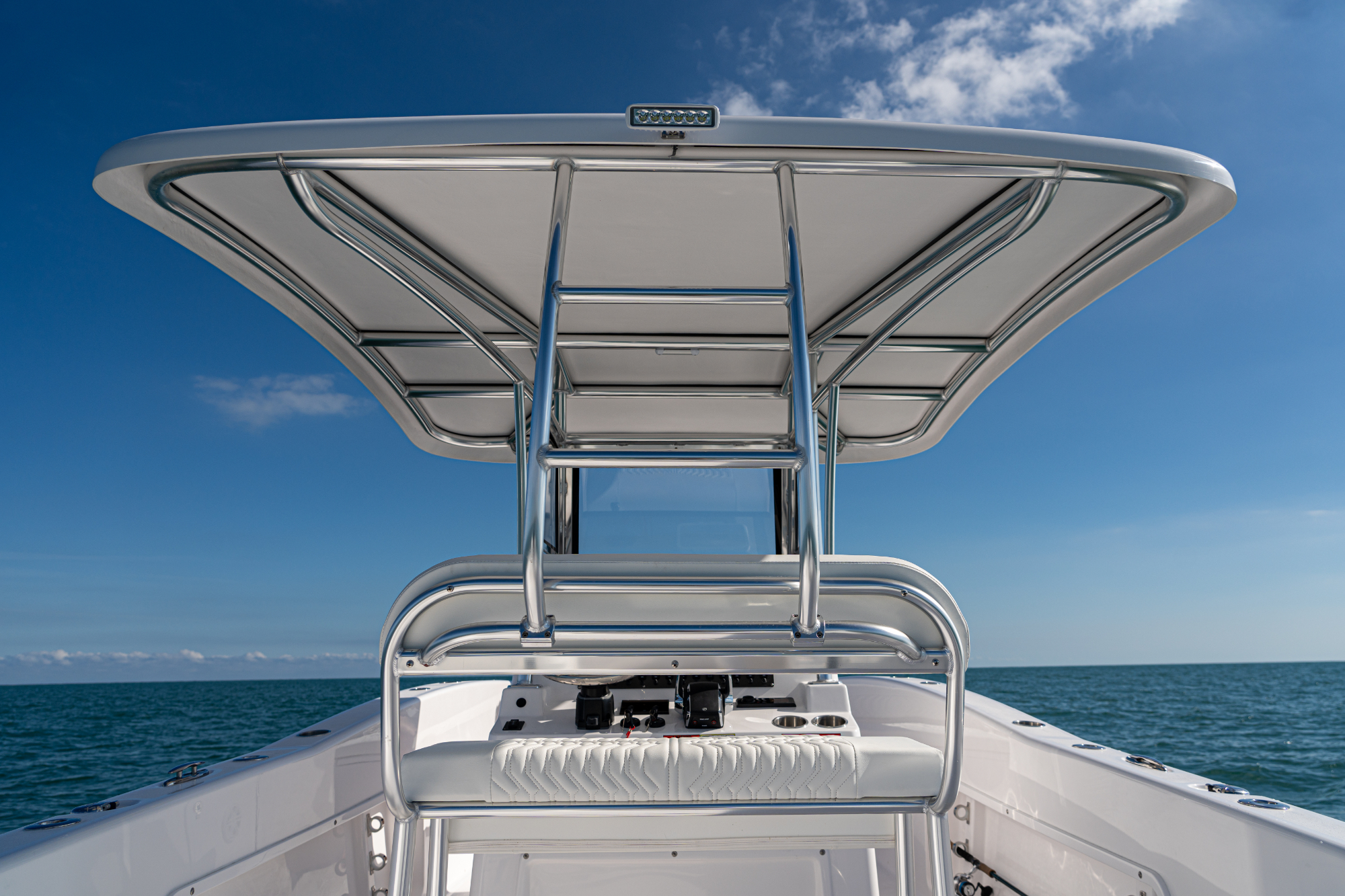

T-top with Acrylic Windshield

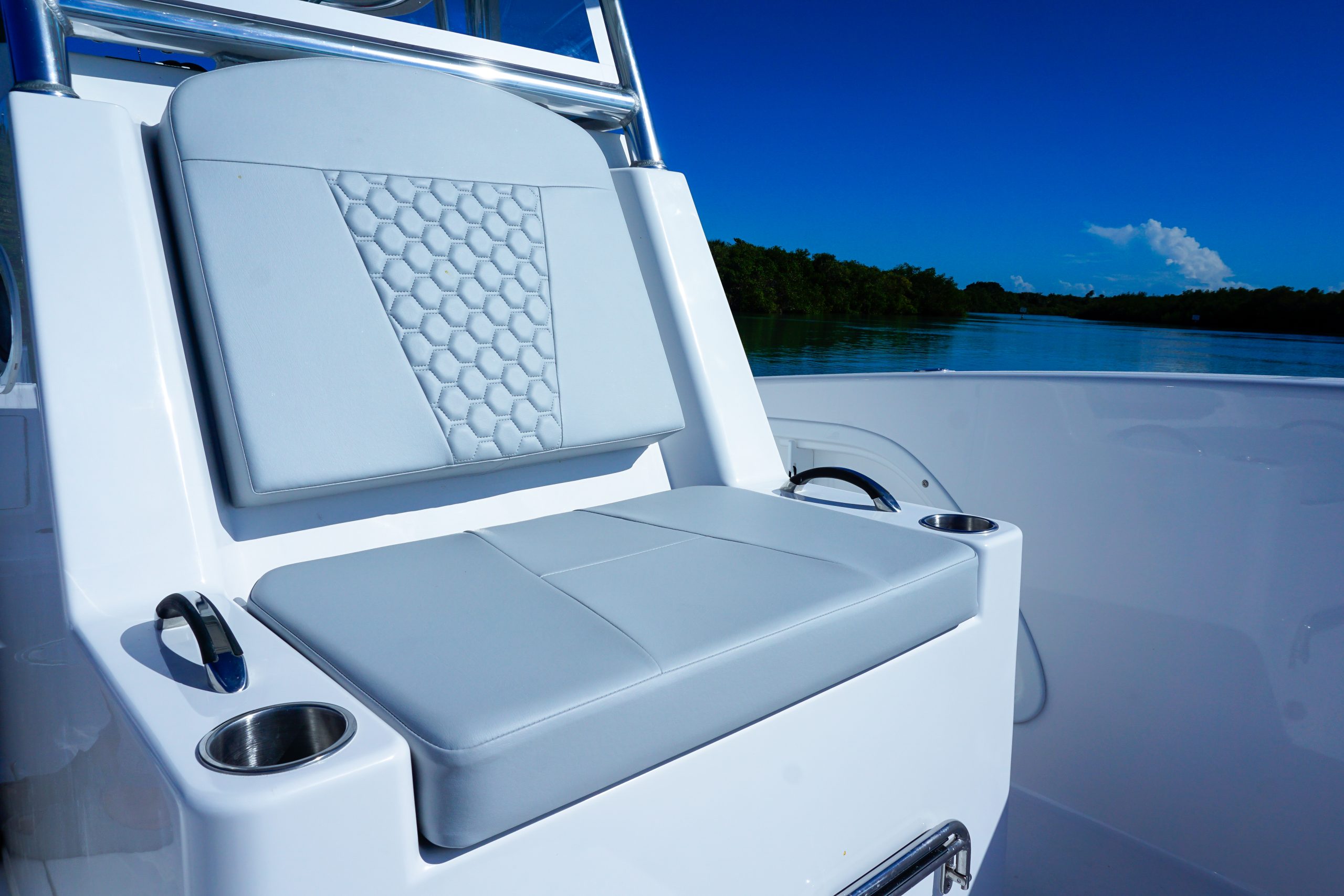

Helm Seating

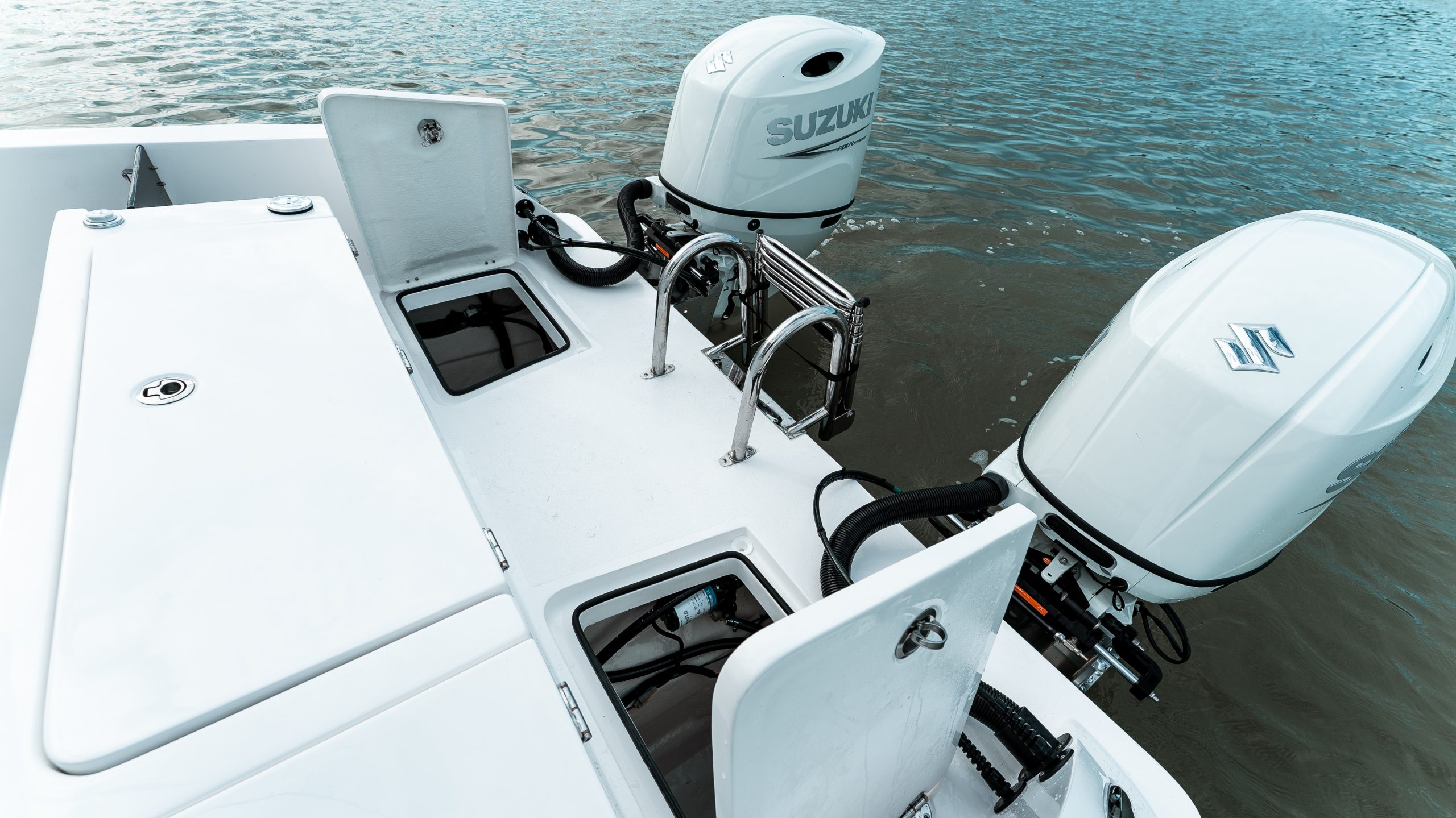

Aft Deck

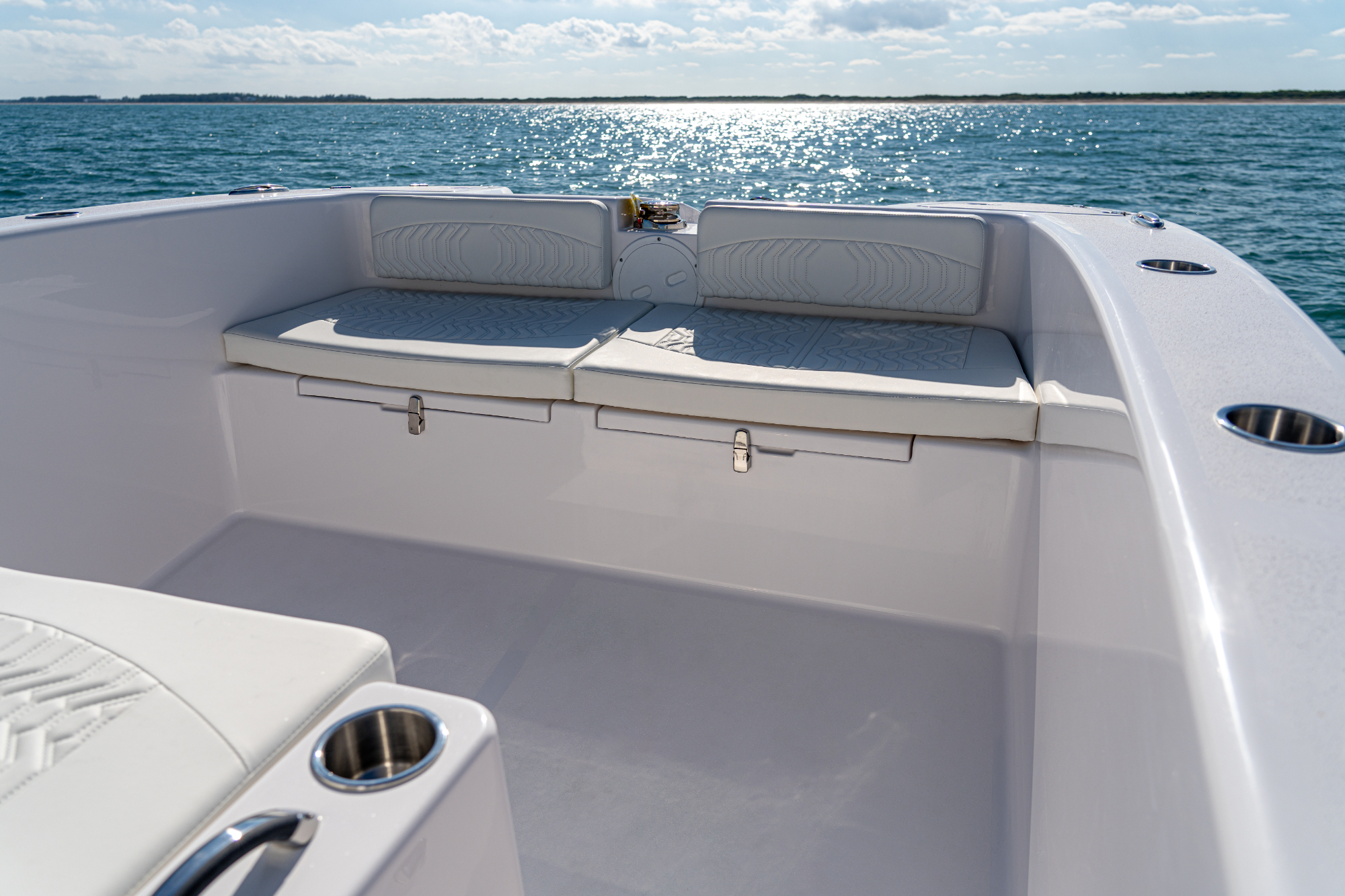

Bow Seating and Storage

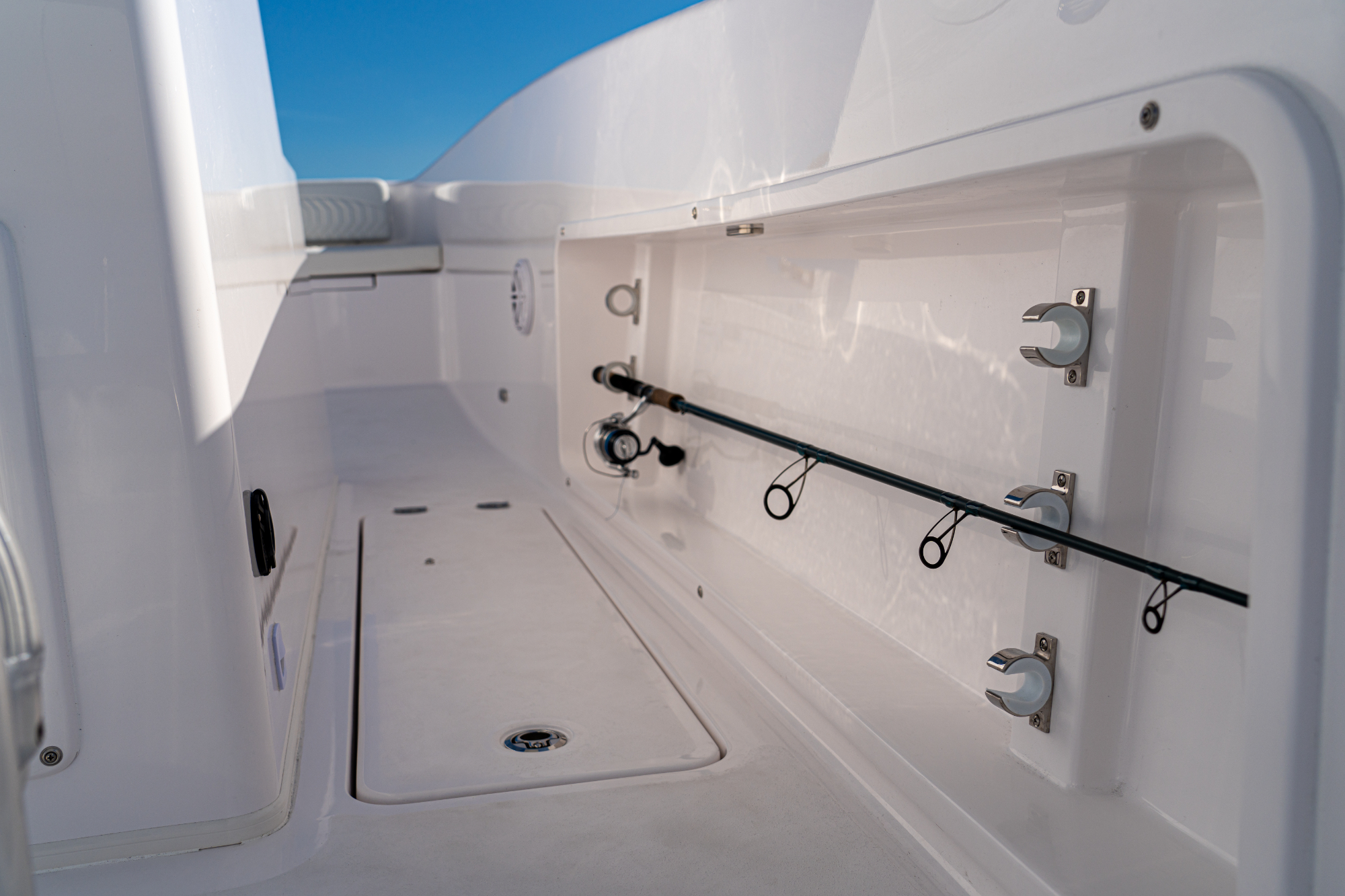

Rod Storage and Cooler

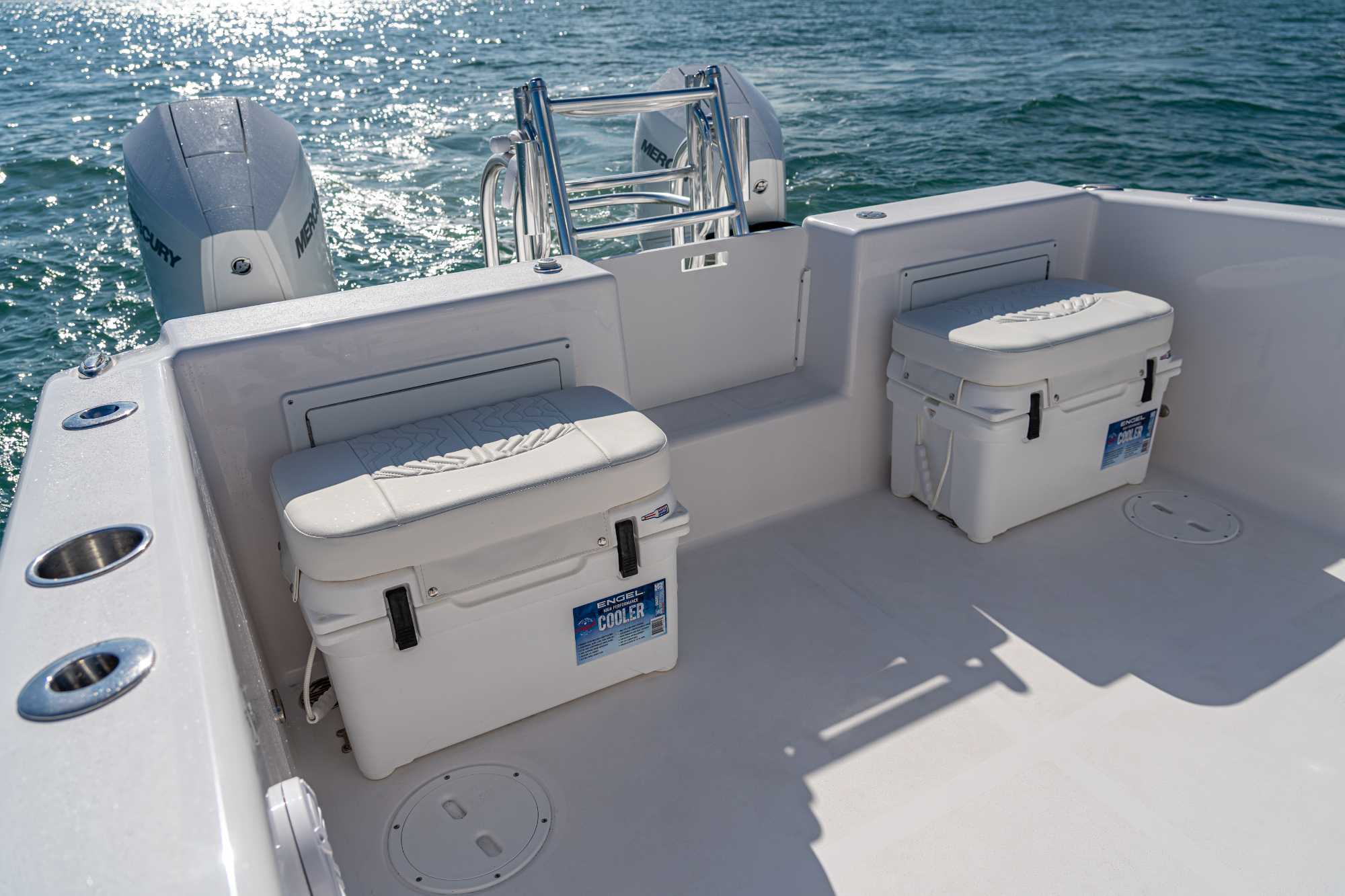

GG Schmidt Aft Seating
GG Schmidt Aft Seating
10,000 Lumen LED Lightbars Forward and Aft
10,000 Lumen LED Lightbars Forward and Aft
Aluminum 4-step Dive Ladder
Aluminum 4-step Dive Ladder

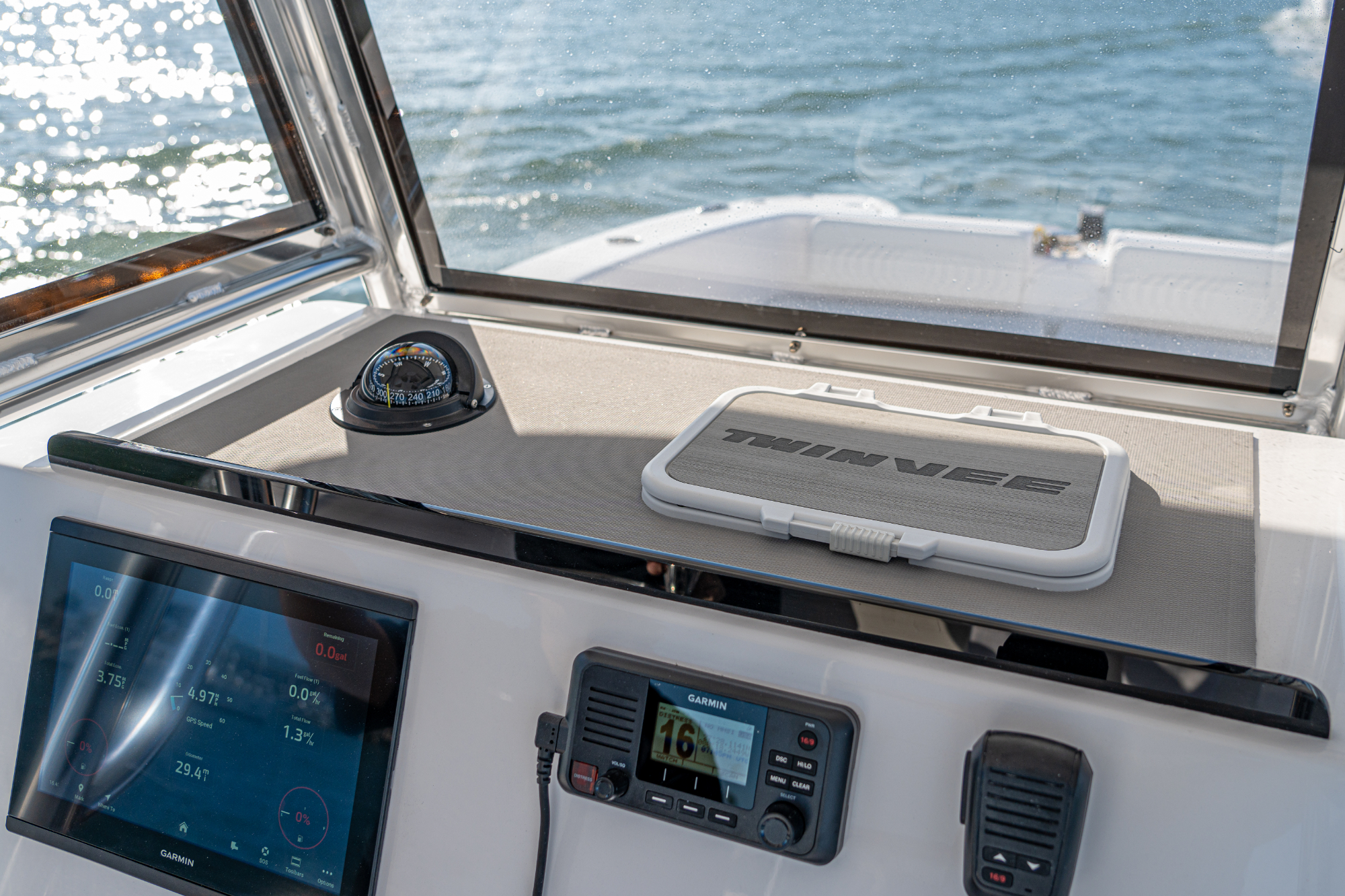

Black Acrylic Dash
Black Acrylic Dash
Backlit Rocker Panel with USB
Backlit Rocker Panel with USB
Bow Storage
Bow Storage
Bow Seating with Custom Stitched Upholstery
Bow Seating with Custom Stitched Upholstery
Forward Facing Seat Foot Rests
Forward Facing Seat Foot Rests
Upholstered Forward Facing Seat
Upholstered Forward Facing Seat
Forward Facing Seat Cooler Storage
Forward Facing Seat Cooler Storage
Courtesy Lights
Courtesy Lights
Custom Stitched Marine Leather
Custom Stitched Marine Leather
Battery Charger Port
Battery Charger Port
Fish Boxes Port and Starboard
Fish Boxes Port and Starboard
Fresh Water Tank and Shower Head
Fresh Water Tank and Shower Head
GG Schmidt aft seating
GG Schmidt aft seating
Upper Bow Storage
Upper Bow Storage
Insulated Forward Seating
Insulated Forward Seating

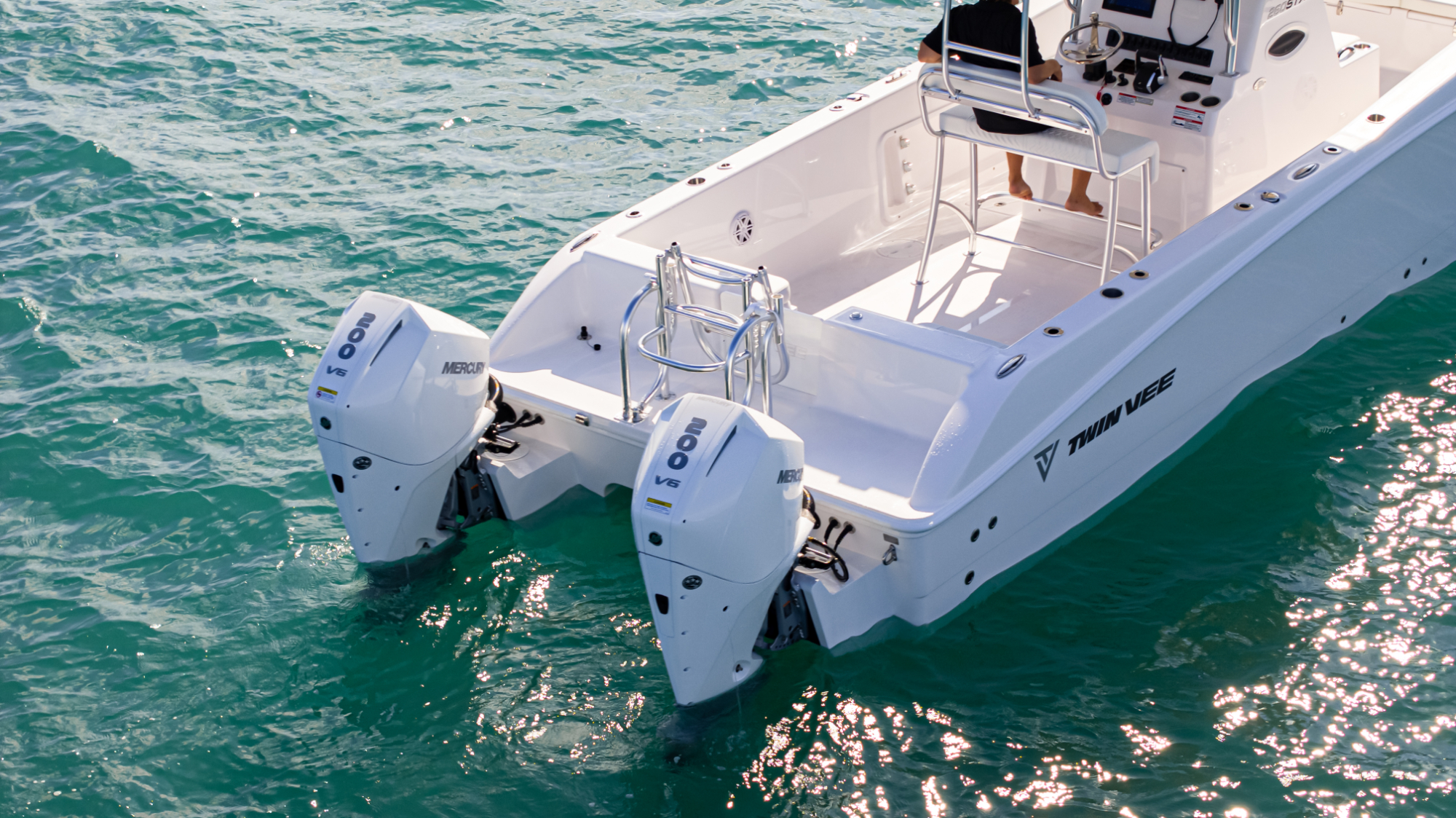

High Quality Marine Motors Brackets
High Quality Marine Motors Brackets
Molded Fiberglass Hardtop with Integrated E-Box
Molded Fiberglass Hardtop with Integrated E-Box
Pass-through Transom with Drop Board
Pass-through Transom with Drop Board
Popup Cleats
Popup Cleats
Raised Titanium Logo
Raised Titanium Logo
Stainless Bow Roller
Stainless Bow Roller
Stainless Cupholders
Stainless Cupholders
Stainless Steering Wheel with Turning Knob
Stainless Steering Wheel with Turning Knob
T-top Rodholders
T-top Rodholders
Tackle Center Port and Starboard
Tackle Center Port and Starboard

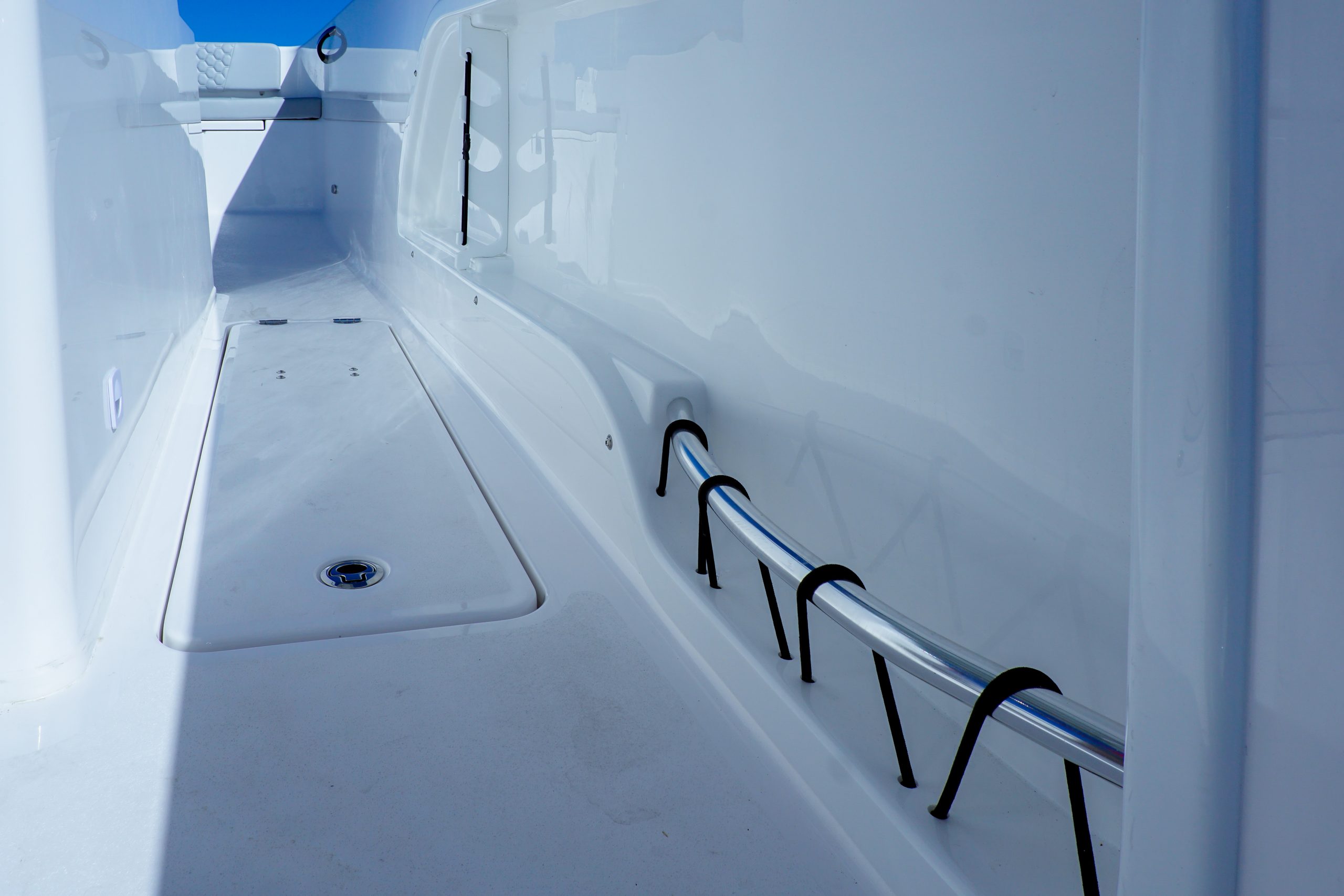

Under Gunnel Rod Storage
Under Gunnel Rod Storage
Thirty Gallon Baitwell
Thirty Gallon Baitwell
Three Sided Acrylic Windshield
Three Sided Acrylic Windshield
previous arrow
next arrow

260 STX Specs

LOA

26′ 0″

BEAM

8′ 8″

FUEL CAPACITY

2/75 Gallons

MAX POWER

400 HP

*Due to mandatory EPA regulations in fuel systems, usable fuel capacity is an estimation and may not reflect actual capacity

260 STX Standards

Hull and Deck

  • 8” Stainless Steel Pull-up Cleats – (7)

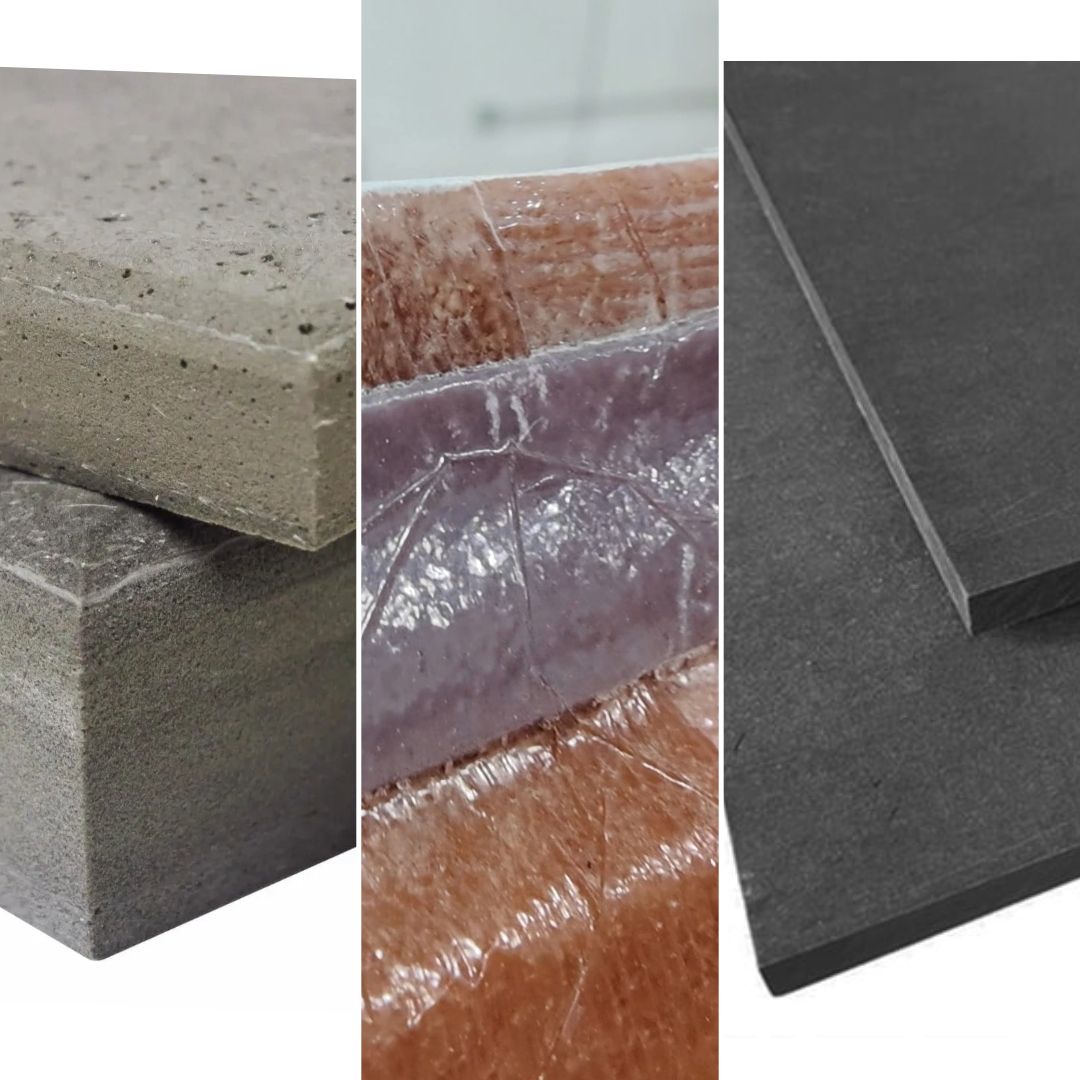

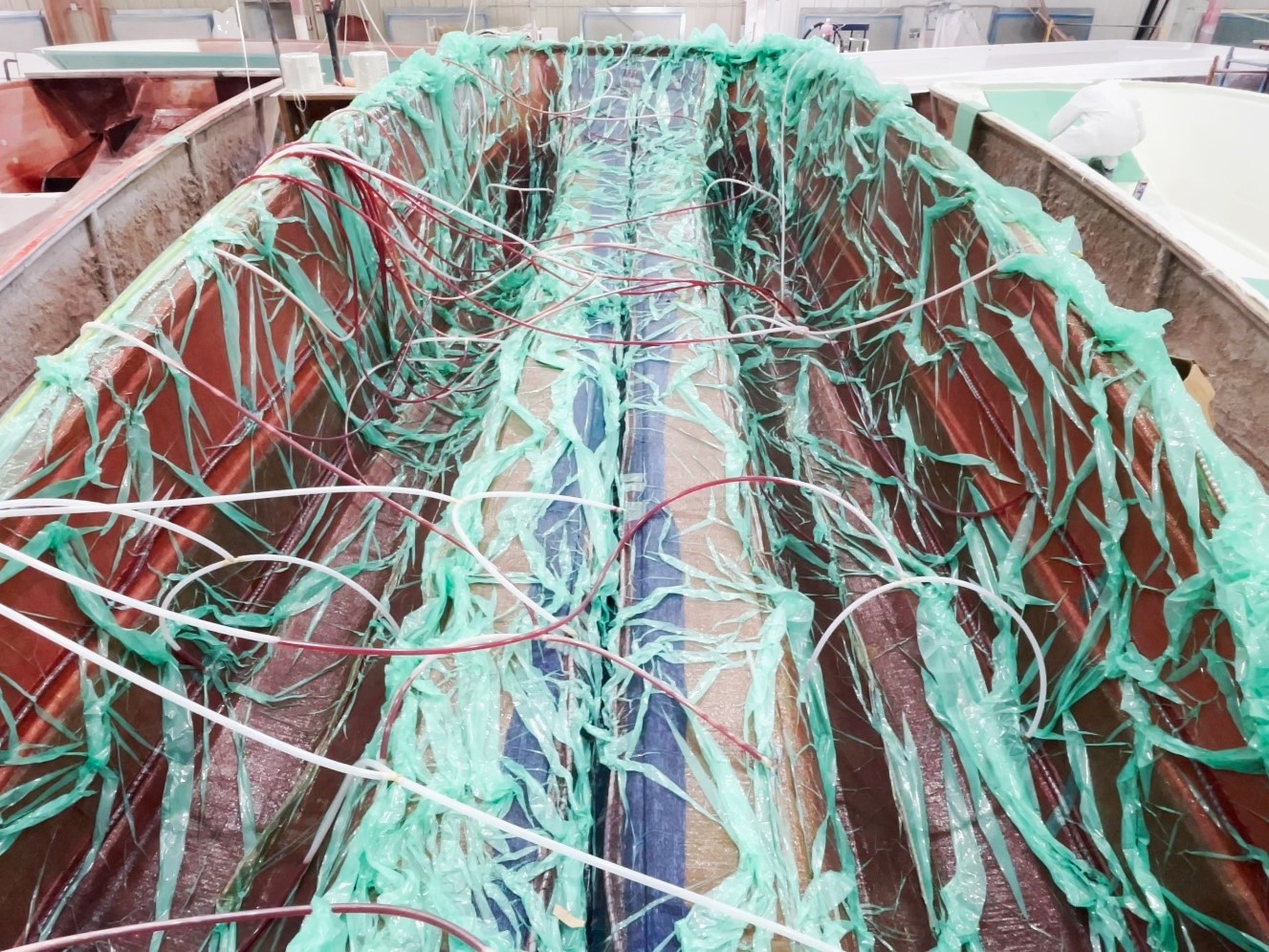

  • Advanced composite/resin stringer system
  • Cup holders: Stainless Steel (6) (2)-Console, (2) per side gunwale
  • Drain covers: stainless steel w/Twin Vee Logo

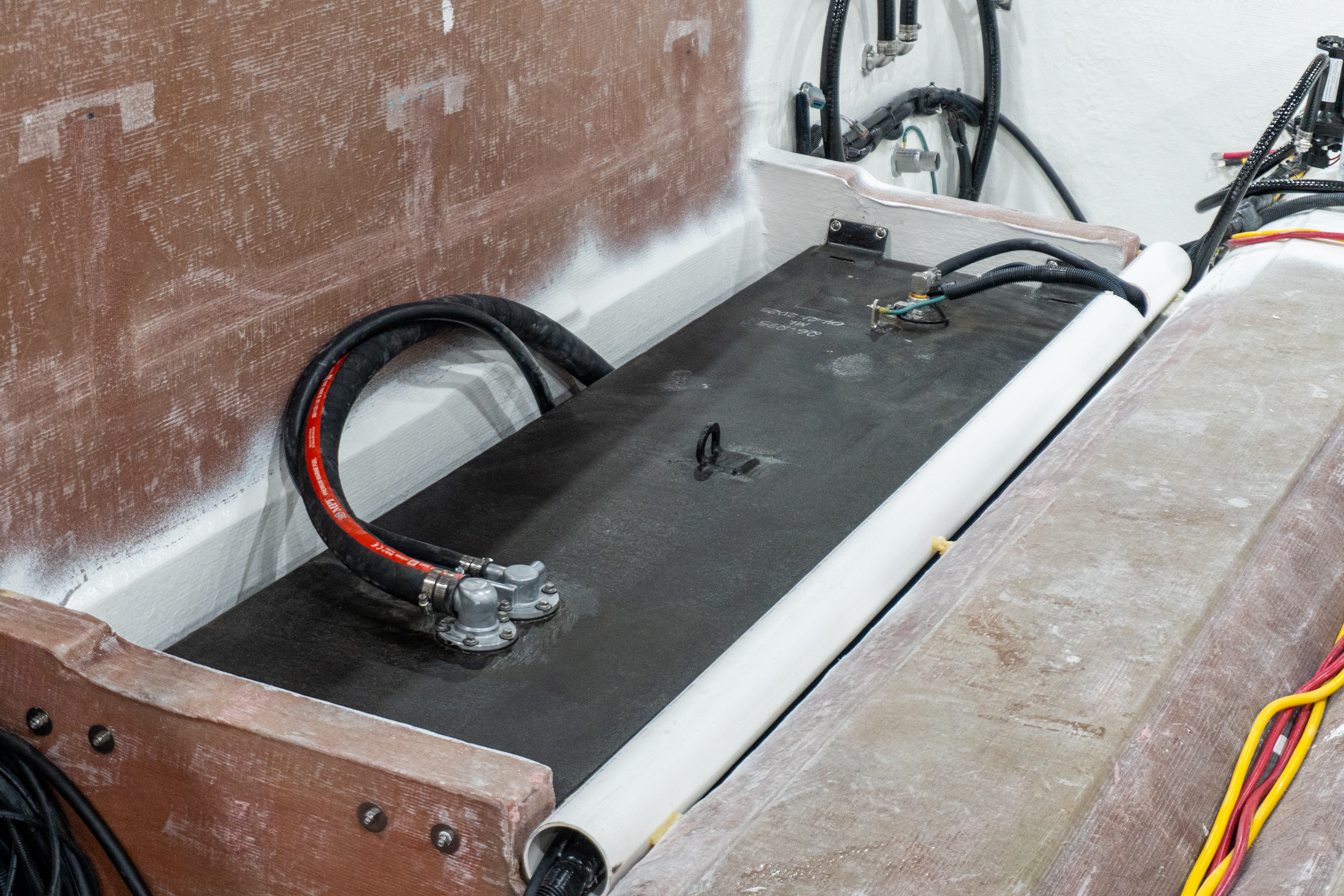

  • Fuel Cells “Florida Marine Tanks” 75 Gallon each x 2 w/Fuel Level Sensor
  • Gel Coat Color: White as standard
  • Grip Tek – yacht-style non-skid
  • In-Deck fish boxes/storage Macerated, Port & Stbd
  • Platinum Accent Stripe

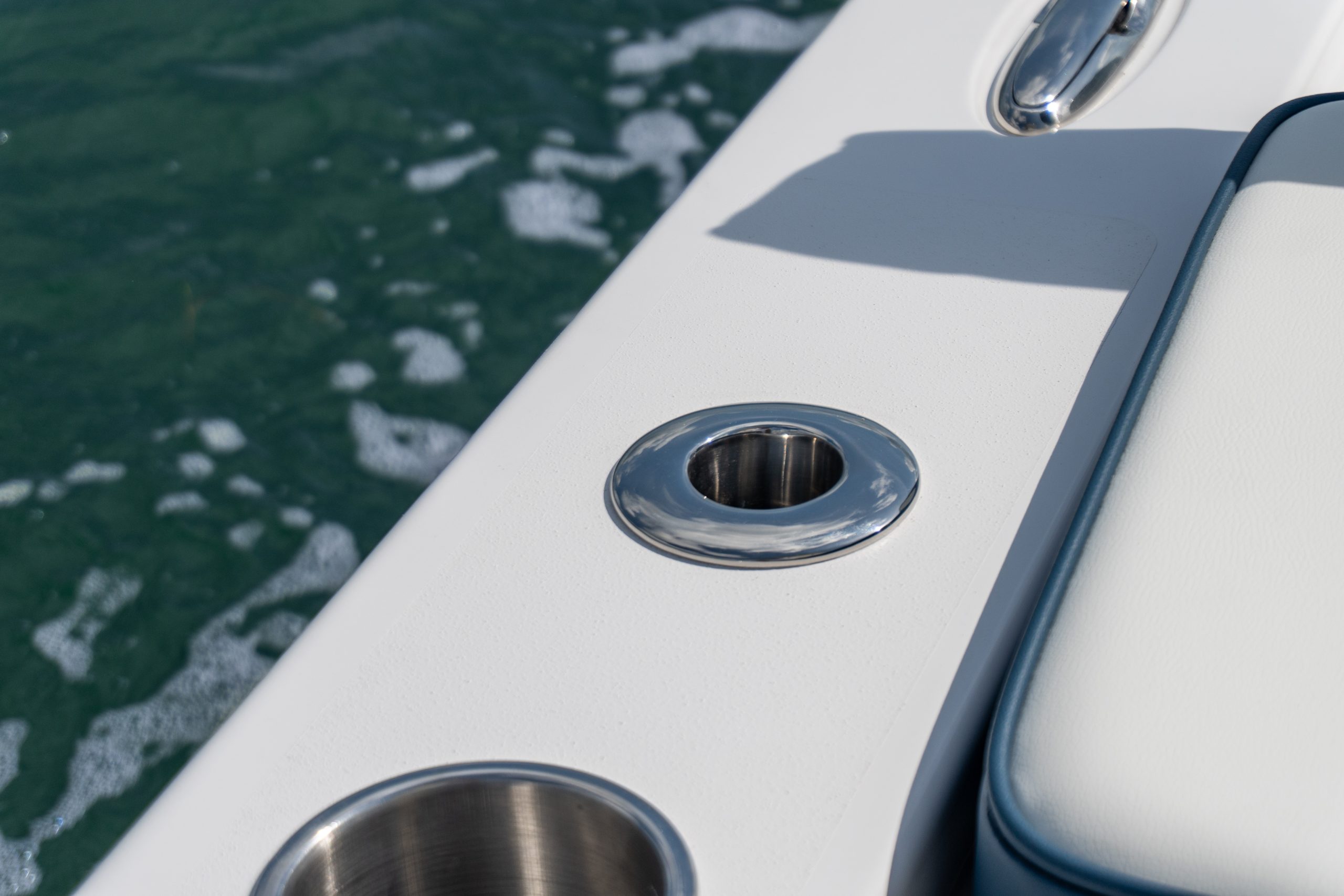

  • Rod holders: (16) Stainless Steel – 8 per side gunwale & (4) on aluminum pipe seating
  • Rod Storage, Under Gunwale, Thermoformed & Flush Mounted
  • Rub Rail: High-density PVC, white or black
  • Stainless Marine Outboard Brackets
  • Stainless Steel Bow and Stern Tow Eyes – (3)
  • Stainless Steel Bow Roller
  • Stainless Steel Transom Boarding Ladder with Handrails
  • Tension hinges: Stainless and Brass
  • Thru hulls: Stainless Steel
  • Transom Walkthrough with drop board to Swim/Fish/Sun platform
  • Twin Vee logo, New STX Model Designator
  • Upper Bow Storage with Molded Fiberglass Hatches
  • Wash down: Raw water washdown, stern

Console, Helm & T-Top Features

  • 3 Spoke Polished Stainless Steering Wheel w/ Turning Knob
  • ABYC Standard Fire extinguisher
  • Acrylic Windshield – 3 Sided

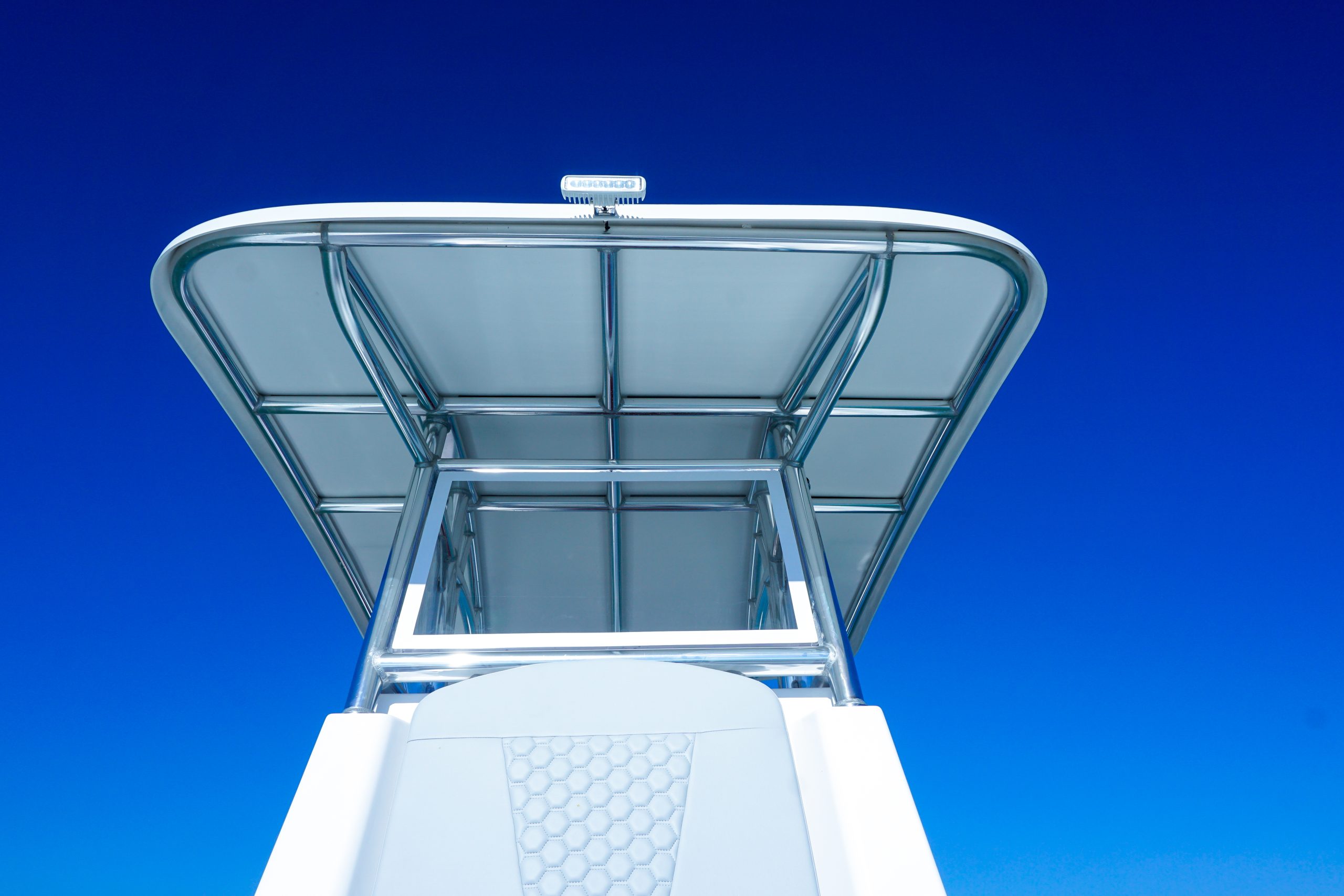

  • Anodized Aluminum T top with Fiberglass Pan Top
  • Battery selector with on/off switches (2)

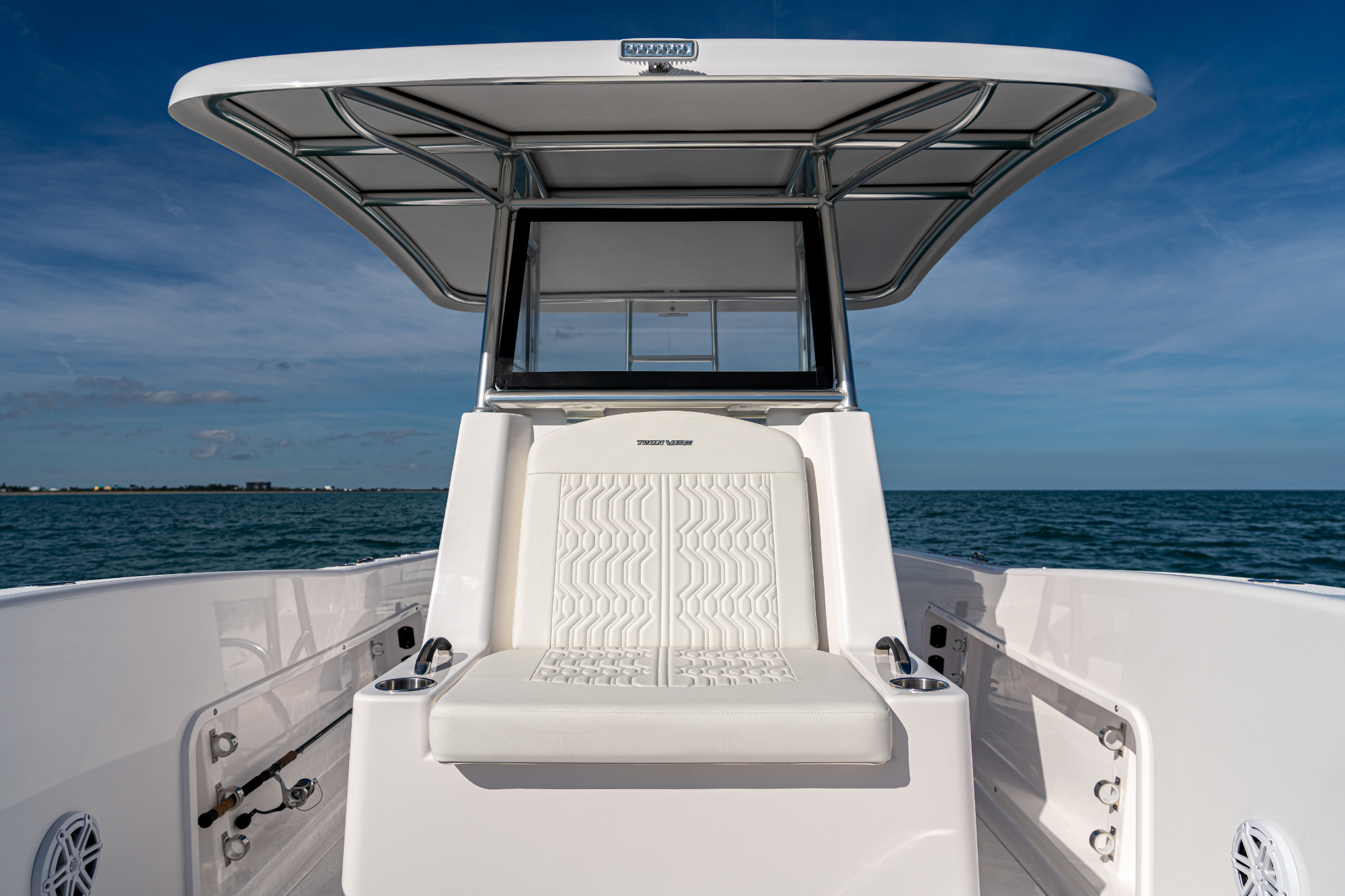

  • Center Sport Console w/ Forward Facing Integrated Fiberglass Upholstered Seating
  • Electric Marine Horn
  • Extra-large dash surface for electronics
  • Navigation lights, port & stbd

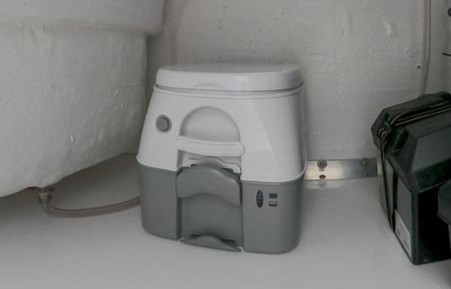

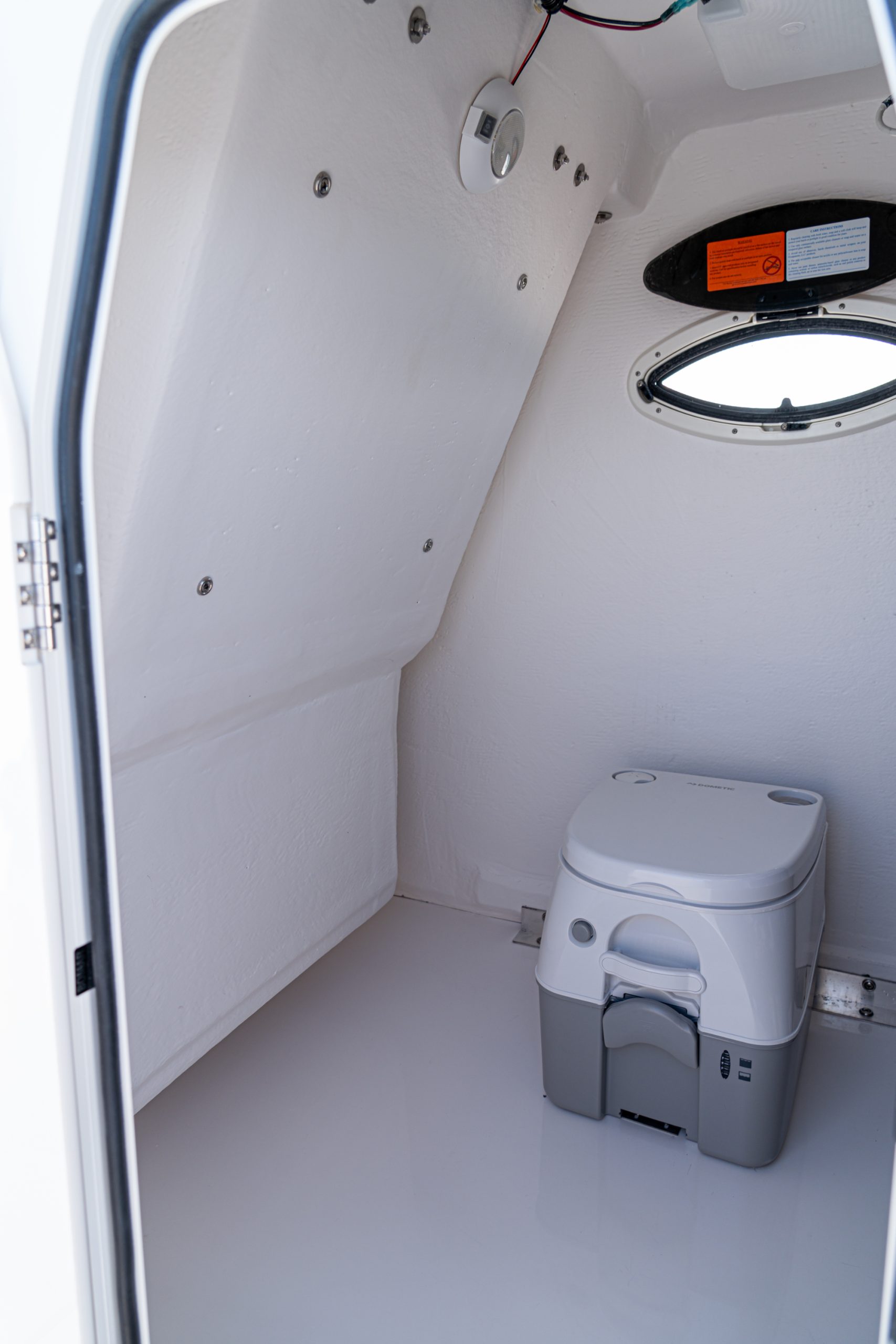

  • Porta Potti, self-contained
  • Hydraulic Steering
  • Ritchie Voyager Compass
  • Stainless Steel Cup Holders (2)
  • Standard Lumitec anchor light, folding
  • Switch panel: rocker switch panel, backlit
  • Thermoformed & Flush Mounted Footrest (White)
  • USB and 12v receptacle with circuit breaker protection
  • White Powder Coated Aluminum Door

Pumps & Storage

  • 2000 GPH Bilge pumps with float switches (2)
  • In-Deck Storage, Fiberglass Hatches, Diaphragm Pumps, Port & Stbd

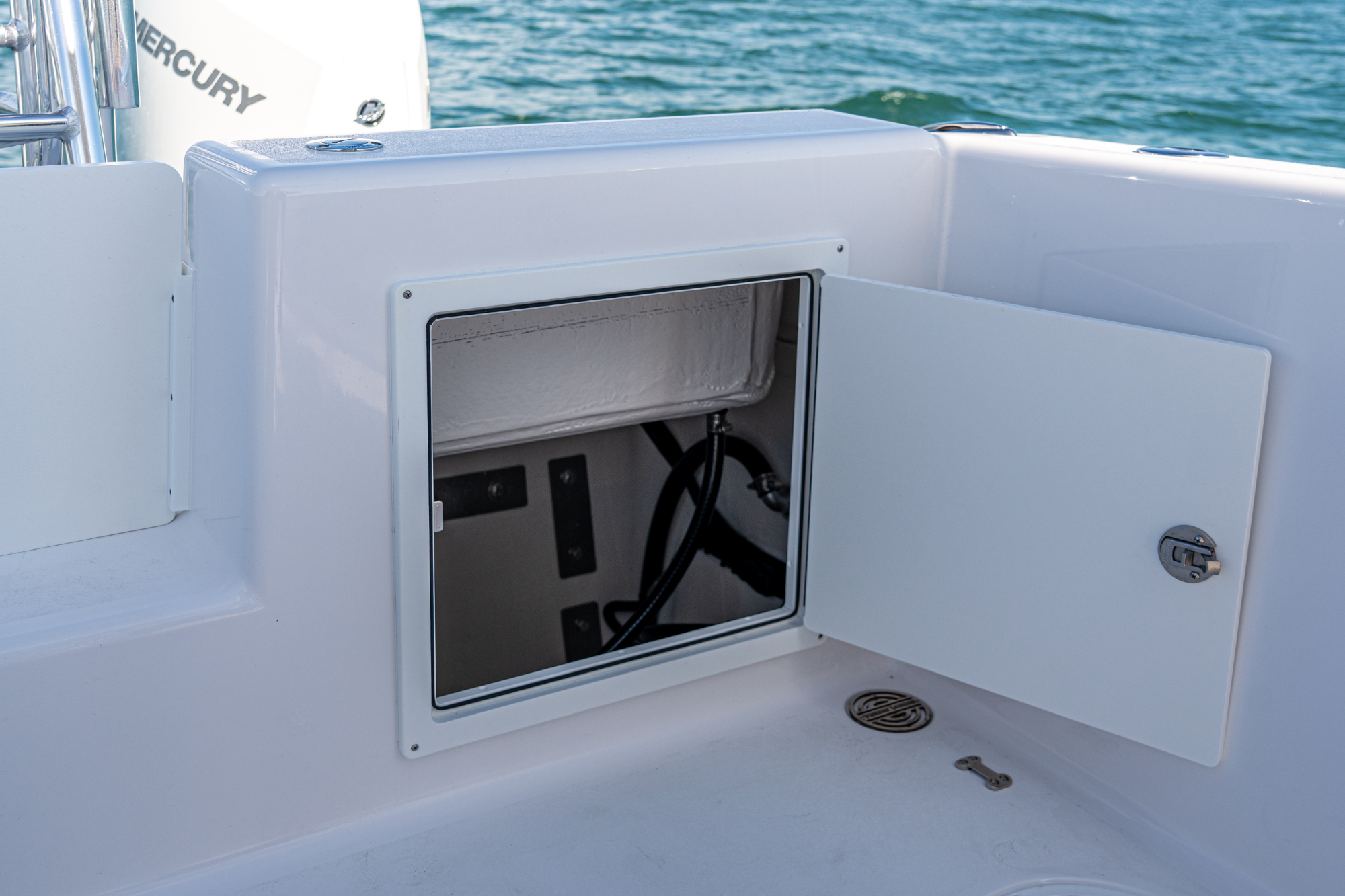

  • Mechanical access panels, Port & Stbd, for bilge, pumps, filters

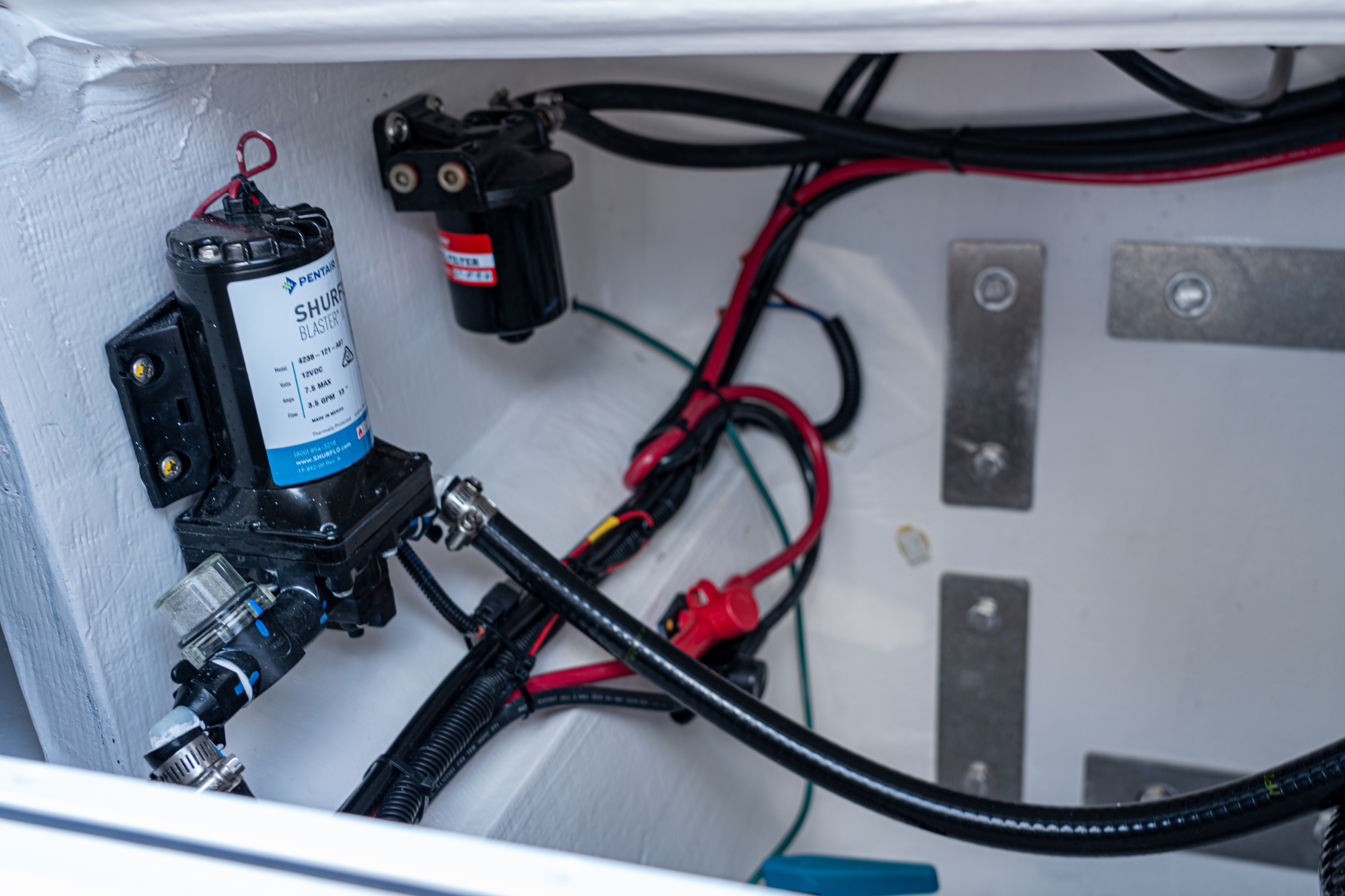

  • Raw Water Washdown Pump

Seating and Upholstery

  • 65 QT Cooler underneath the aluminum pipe seating

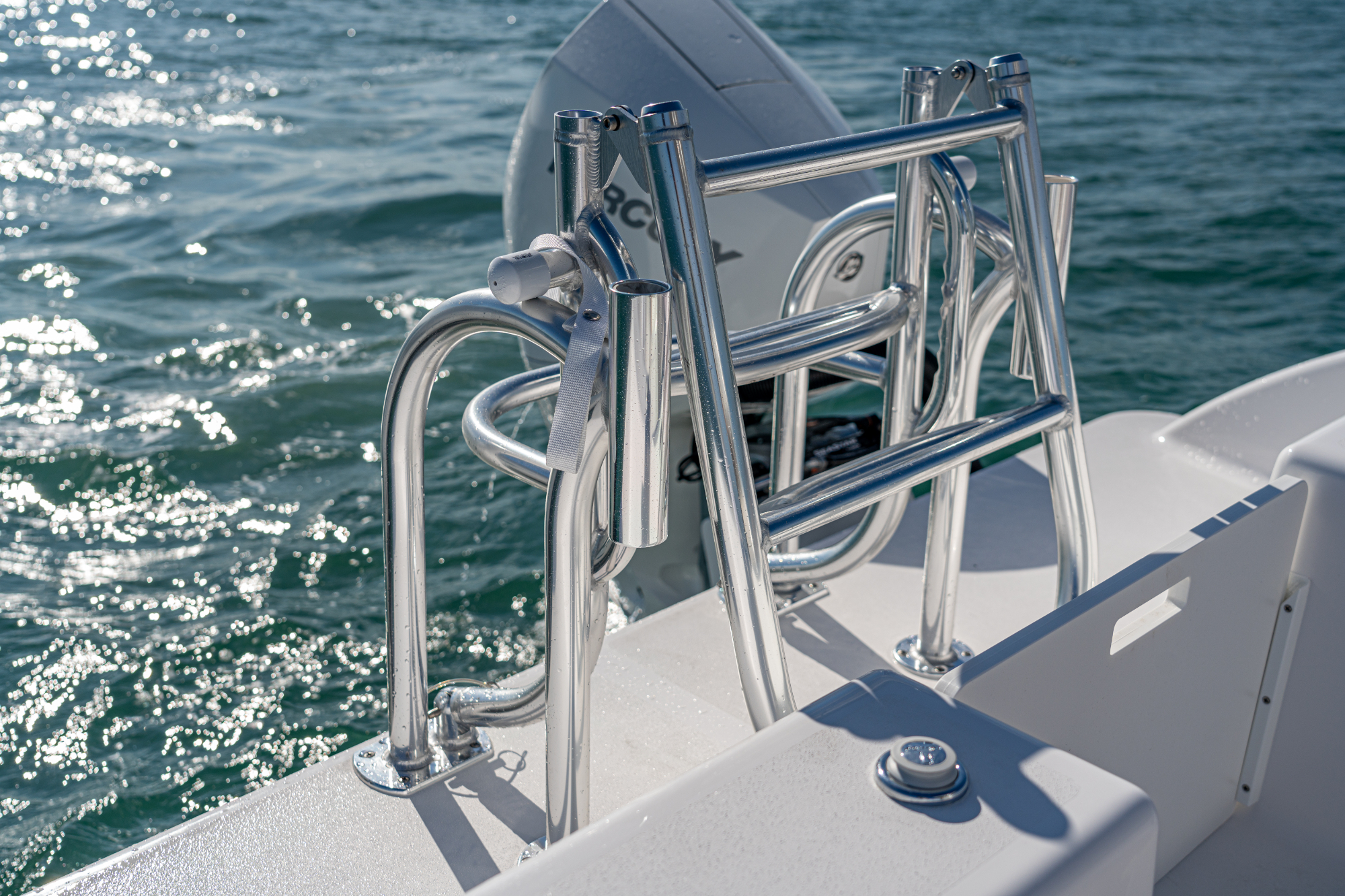

  • Anodized Aluminum Pipe seating with seat cushion, backrest, cup holders (2), and rod holders (4)
  • Bow Storage, Insulated and Dry, with Hatches, Friction Hinges
  • Bow Upholstery Bench Cushion w/ Backing

260 STX Options

Available Options

  • Optional 3 Bank Battery Charger
  • Optional Aluminum Trolling Motor bracket mounted on the bow
  • Optional Dual 35 QT AFT coolers (Port & Stbd) with upholstery for seating

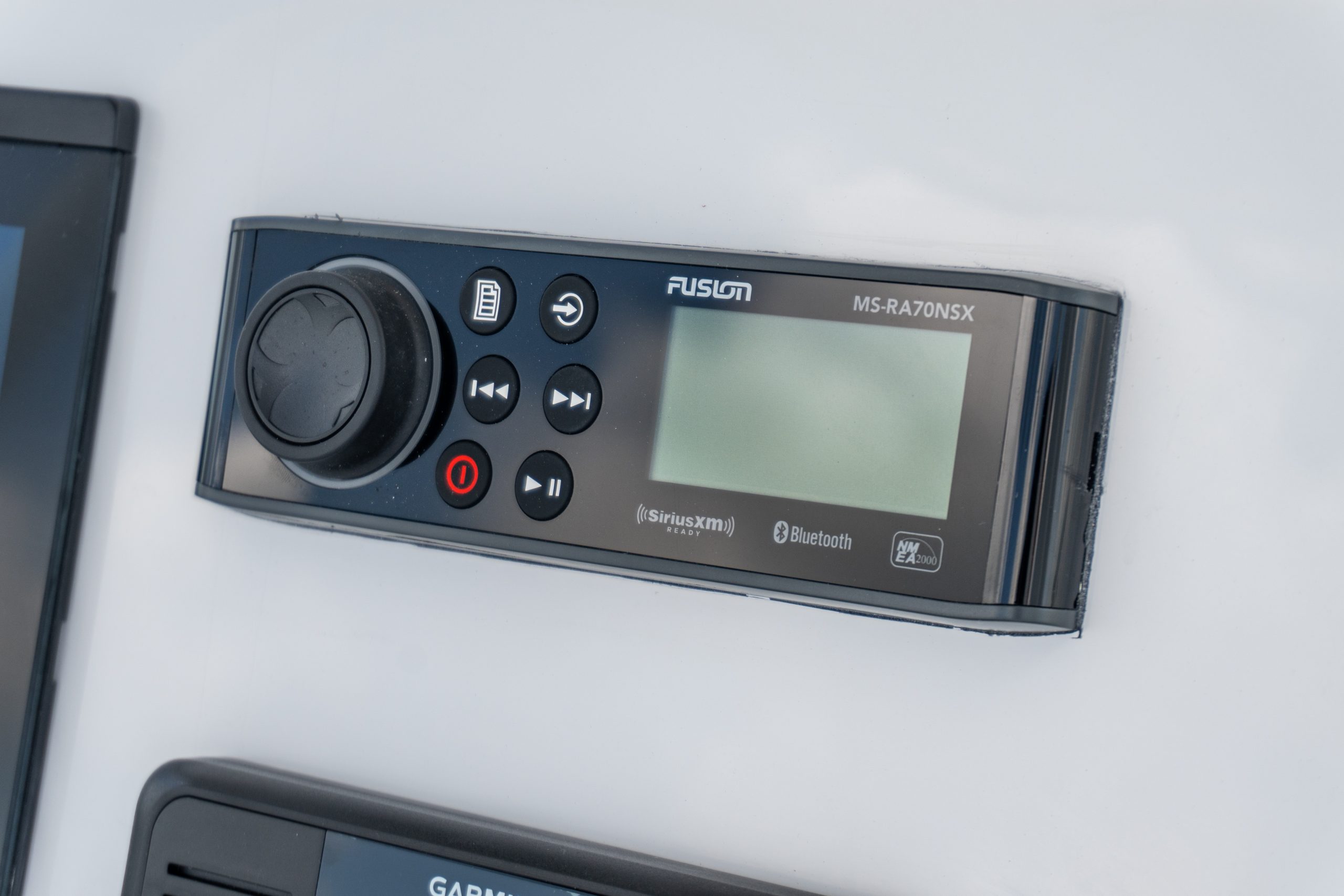

  • Optional Fusion Basic or Premium marine grade stereo systems
  • Optional Gel Coat Colors: Ice Blue or Whisper Gray
  • Optional Lewmar Stainless v700 Windlass
  • Optional Livewell (TBD) – Replaces the 65 QT Cooler under aluminum pipe seating
  • Optional Underwater LED Lighting (White, Blue, or Green)
  • Optional Upholstery Colors: White, Tan & Light Gray solid colored with a unique stitch pattern

260 STX Power Options

Twin Suzuki 150APX

Engine Type
DOHC 16-Valve

Displacement
174.9 (2867)

Max HP
150

Starting System
Electric

No. of Cylinders
4

Operating Range (RPM)
5000-6000

Weight
Mechanical L:511 X:522
Drive by Wire L:520 X:531

Alternator
12V 44A

Color Options
White, Black

Twin Suzuki 200APX

Engine Type
DOHC 16-Valve

Displacement
174.9 (2867)

Max HP
200

Starting System
Electric

No. of Cylinders
4

Operating Range (RPM)
5500-6100

Weight
639 lbs

Alternator
12V 44A

Color Options
White, Black

Walkthrough
Lifestyle

LOA

26′ 0″

BEAM

8′ 8″

FUEL CAPACITY

2/75 Gallons

MAX POWER

400 HP
