The Twin Vee 240 Center Console STX has Arrived!

Ultimate performance, fuel efficiency, and stability at a price you’ll love. Meet the STX line.
The 240 STX offers upgraded performance, fuel efficiency, and stability over our original 240 model. With additional rod holders and a wide, open floor plan, our 240 is perfect for the professional angler and the sport fishing enthusiast alike.

BUILD YOURS

CONTACT A DEALER

240CC STX

240GFXCC-Walk-Through-in-Islamorada-natehphoto-0109

240GFXCC-Walk-Through-in-Islamorada-natehphoto-0115

240GFXCC-Walk-Through-in-Islamorada-natehphoto-0129

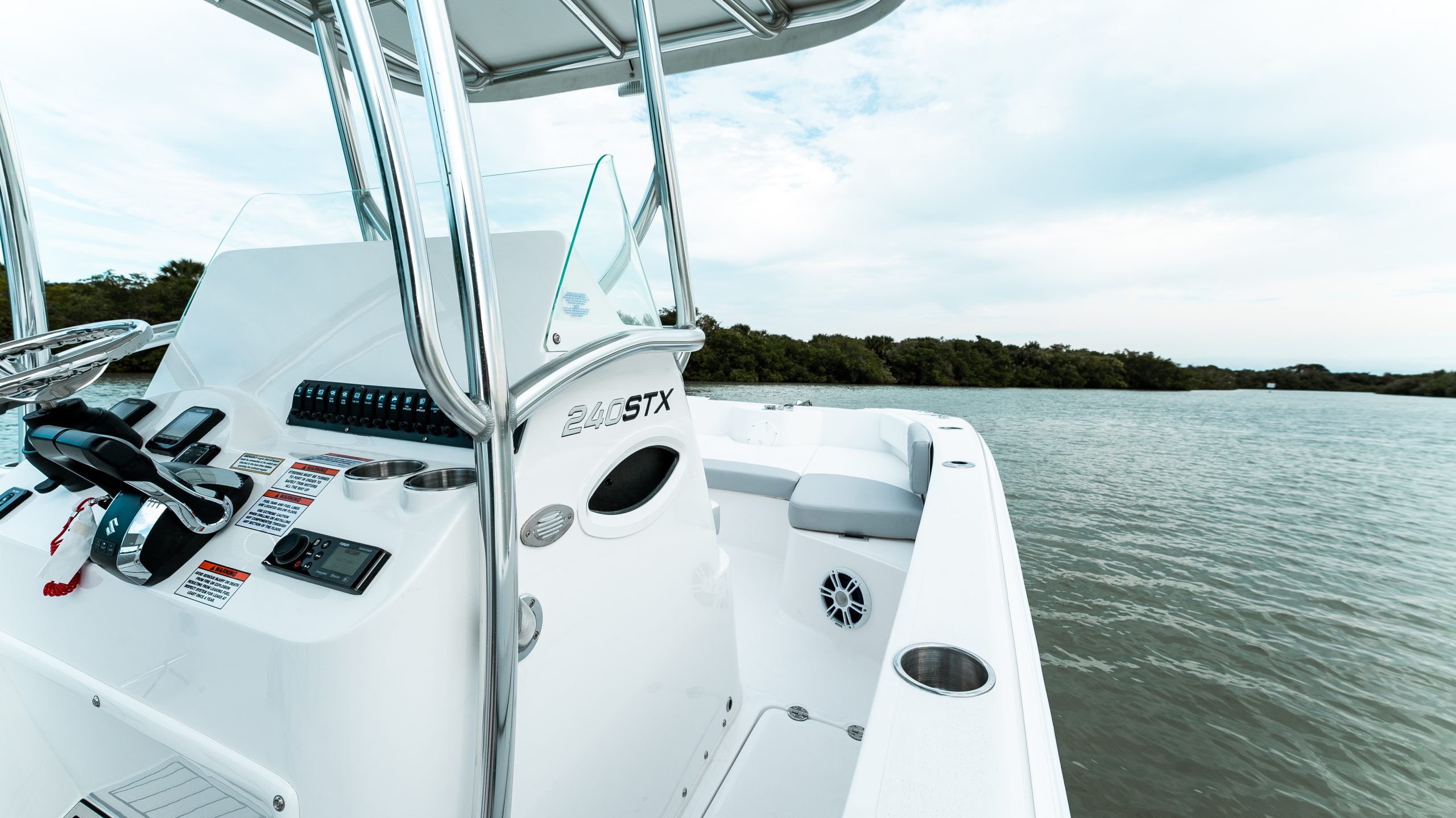

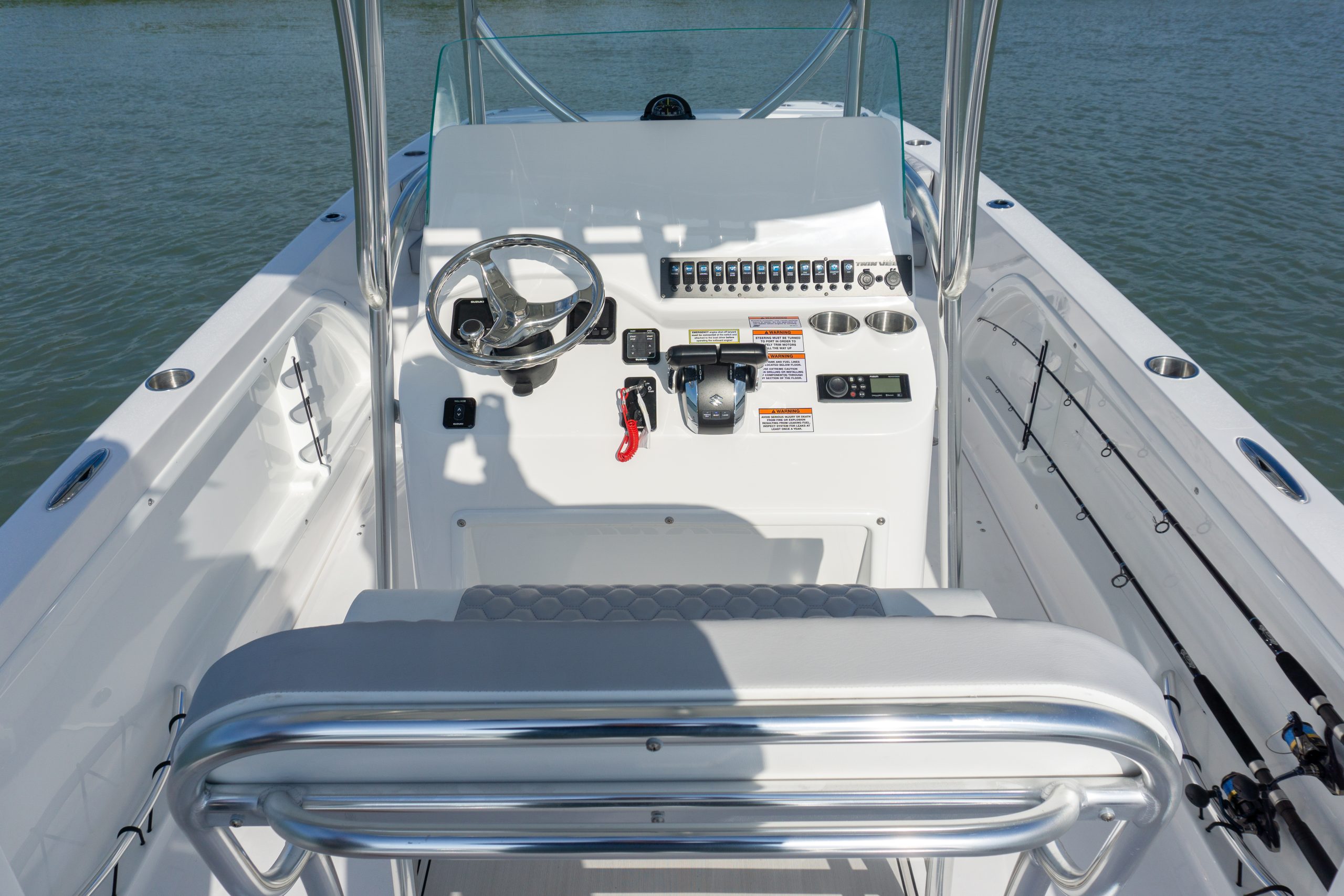

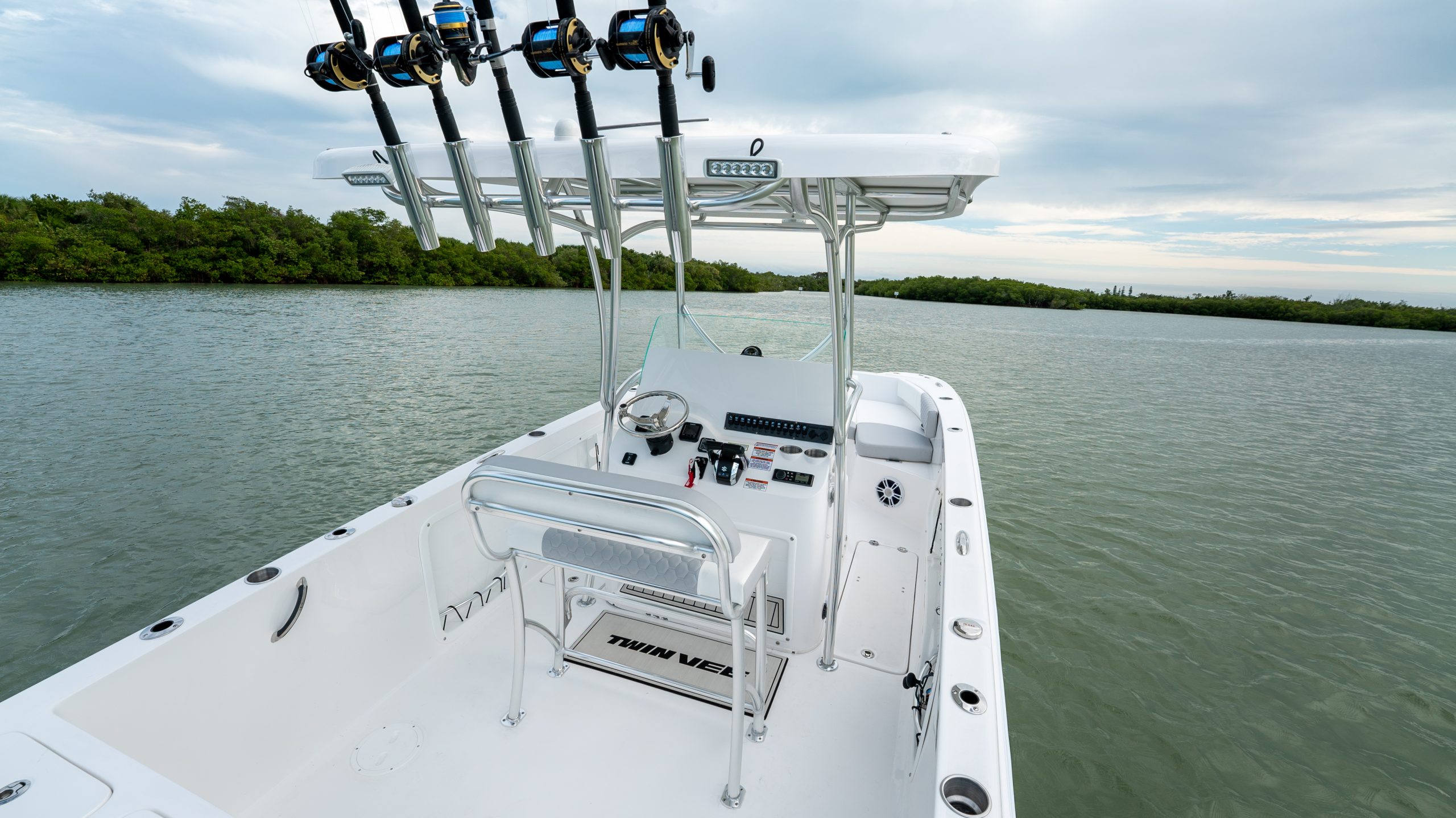

Helm Station

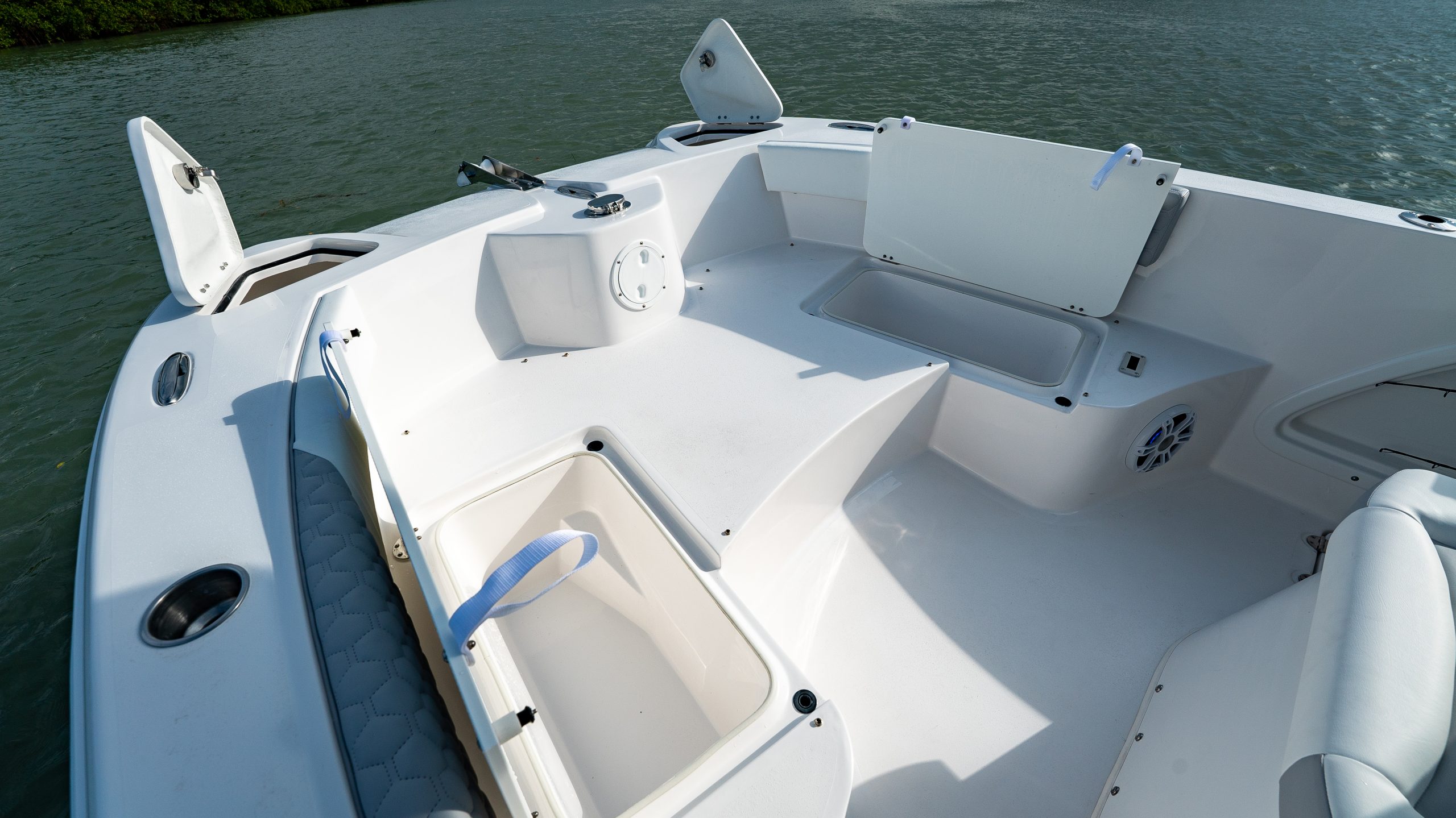

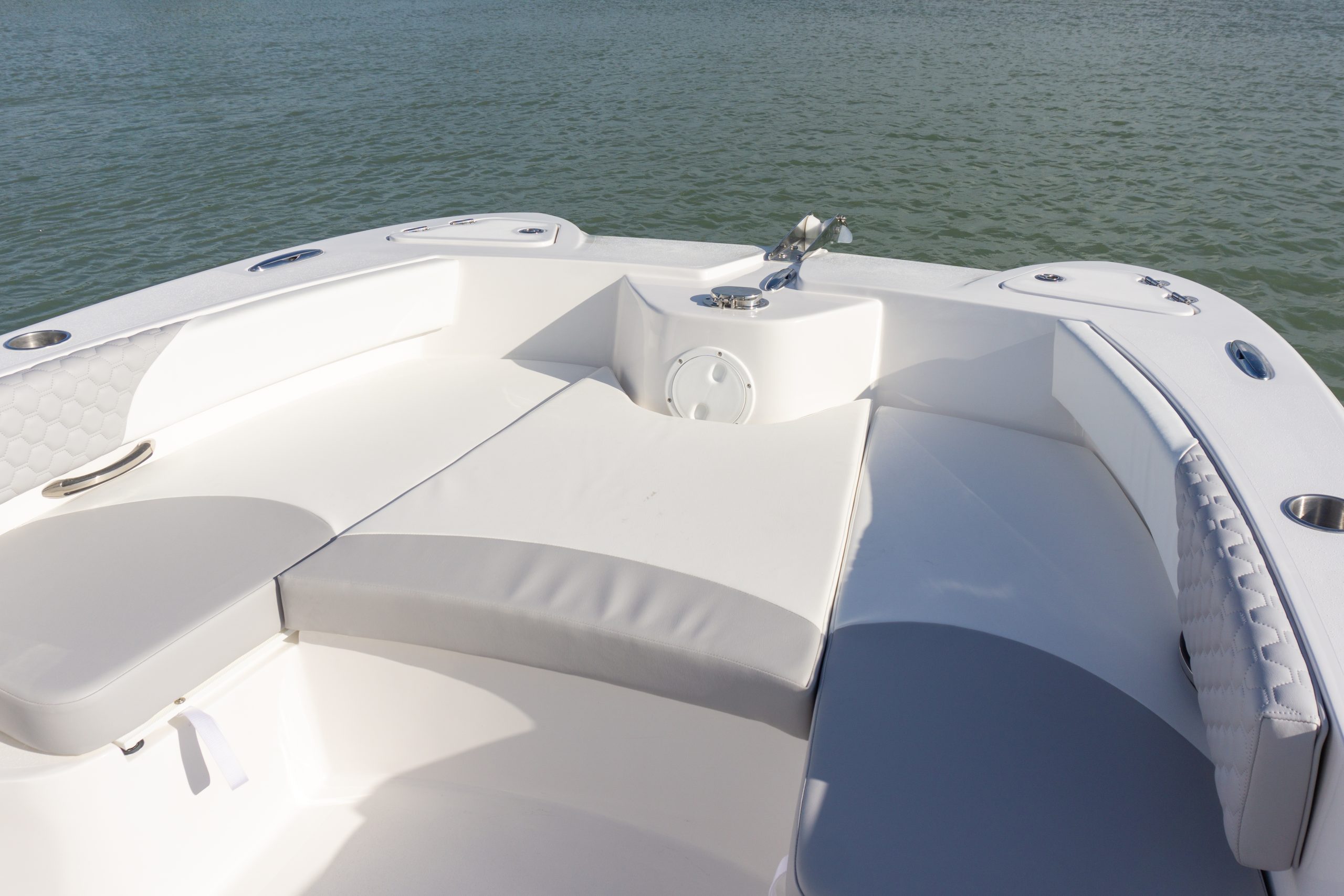

Open Bow Layout

Walkthrough Transom

Acrylic Windshield

Stainless Tension Hinges

Upper Bow Storage

Upholstered Console Cooler

Molded Console Foot Rest

Stainless Steel Transom Boarding Ladder

TH Marine Jack Plates

Stainless Steel Bow Roller

Stainless Steel Drain Covers

Stainless Steel Thru Hulls

Rod Storage Under Gunwhale

Pop-up Cleats

Richie Voyager Compass

Self Enclosed Porta Potti

Llebroc Helm Seating

Raw Water Washdown

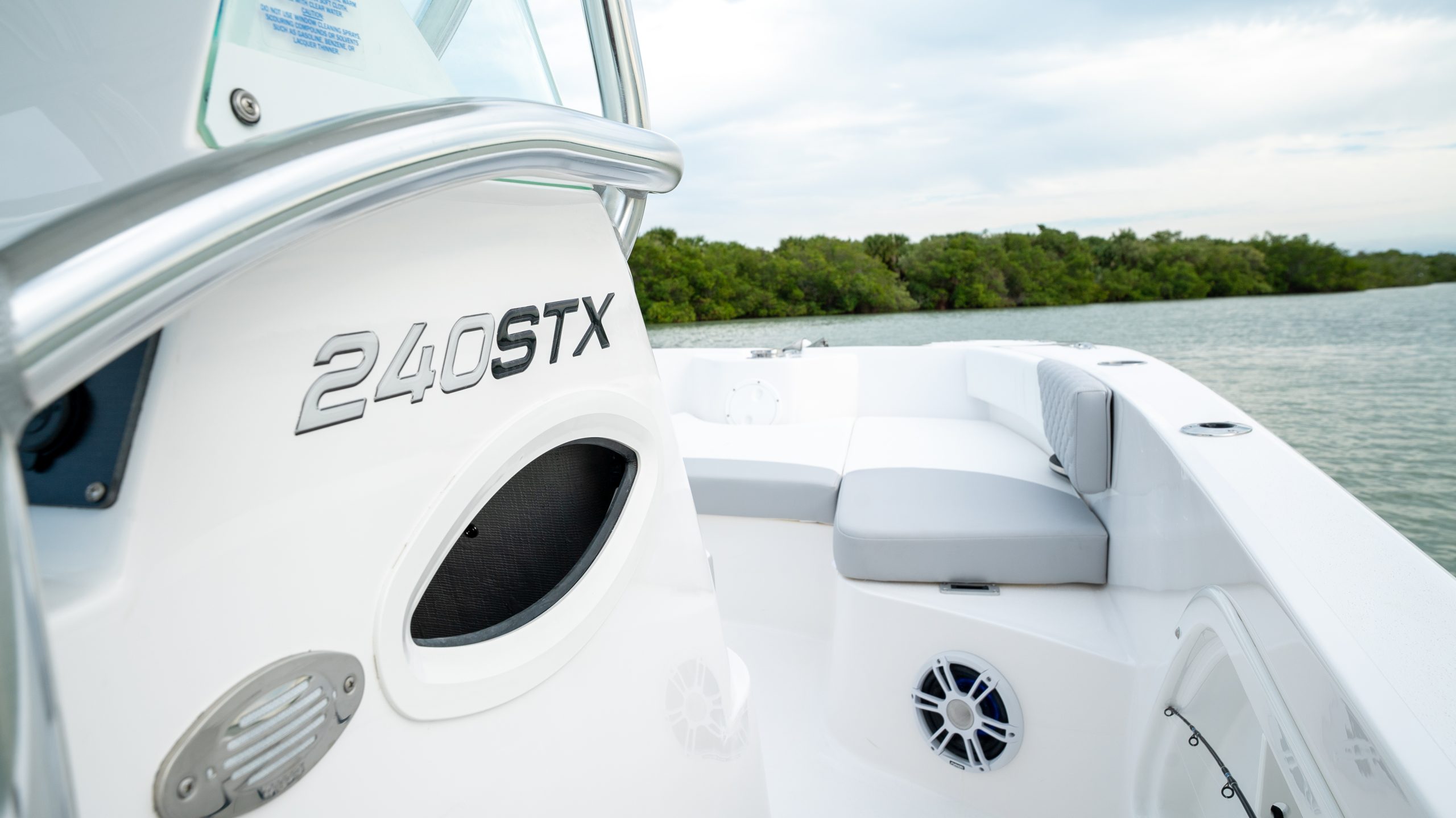

Open Bow Seating with Removable Back Rests

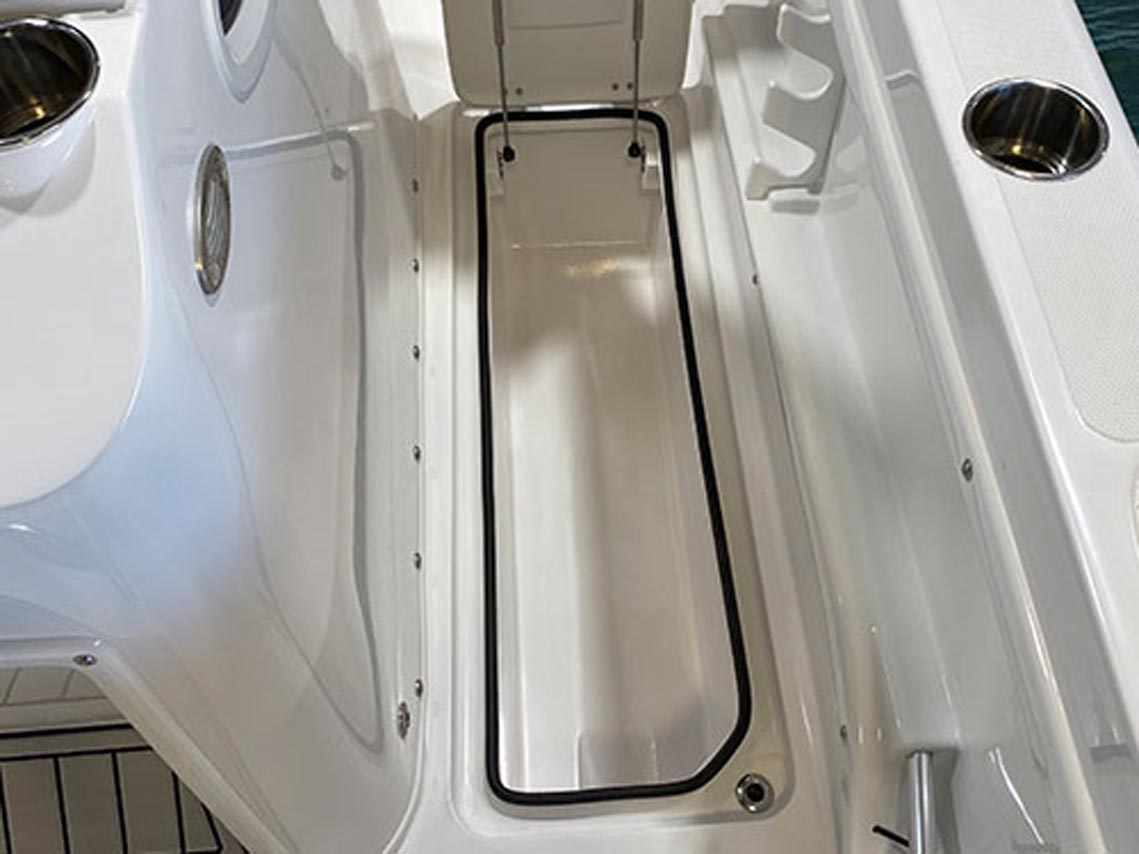

Macerated Fish Boxes

High Quality Fuel Tanks

Console Cup Holders

Brushed Titanium Logo

Backlit Rocker Panel

Anti Fatigue Helm Pad

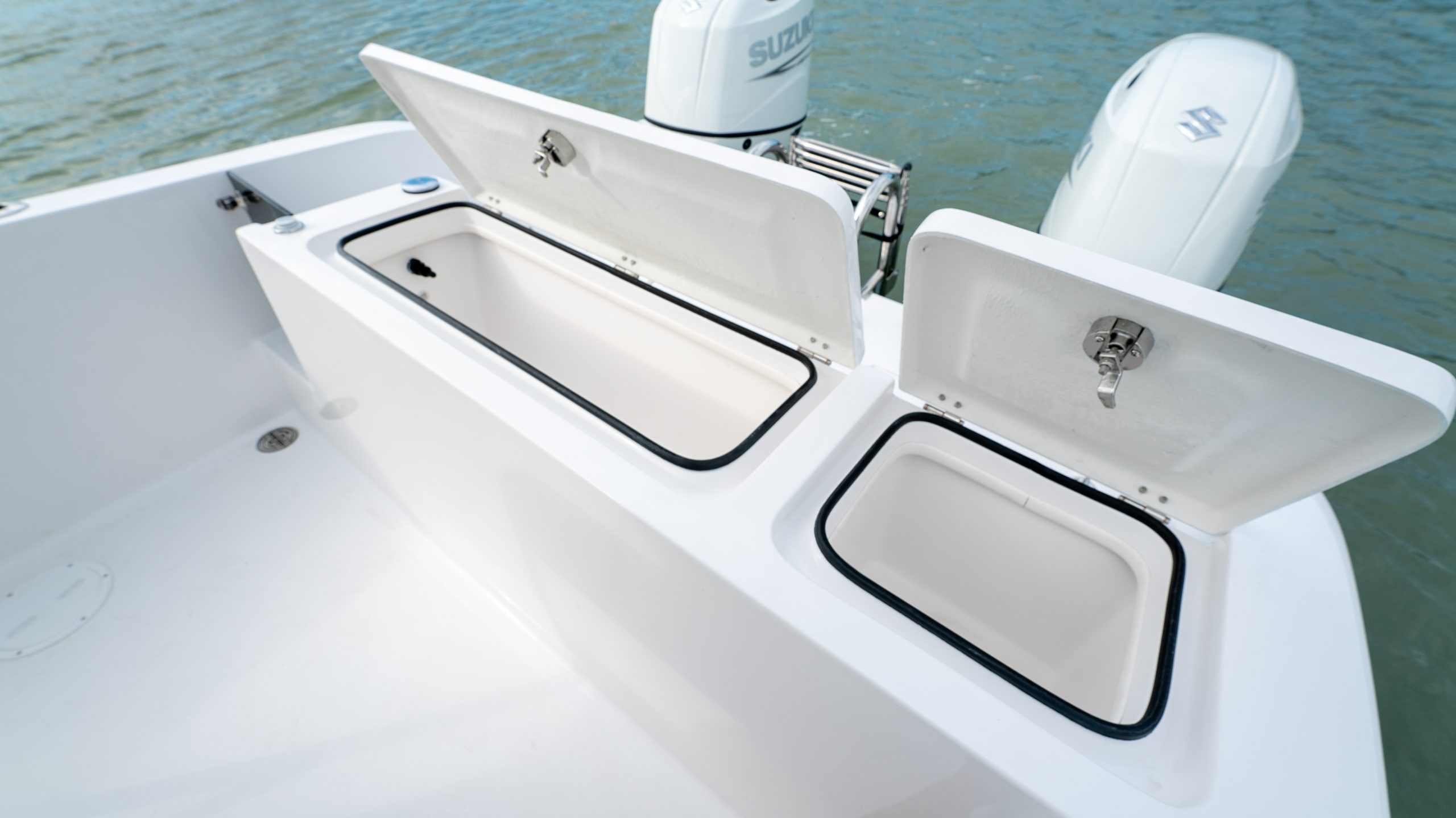

Large Transom Livewell

3-Spoke Polished Steering Wheel with Turning Knob

Acrylic Dash Panel

Advanced Composite Resin Stringer System

Birdsall 65-inch Aft Seating

Acrylic Transom Door

3 Bank Battery Charger

Thermoformed Under Gunwhale Rod Storage

Large Transom Livewell

240 STX Specs

LOA

24′ 0″

LOA w/ Motors

26′ 11″

BEAM

8′ 8″

DRAFT

16″

DRY WEIGHT w/ Engines

3,400 lbs

BRIDGE HEIGHT

8′ 10″

TRAILER HEIGHT

11′ 8″

LIVEWELL
CAPACITY

40 Gallons

FUEL CAPACITY

98 Gallons

MAX POWER

300 HP

*Due to mandatory EPA regulations in fuel systems, usable fuel capacity is an estimation and may not reflect actual capacity

240 STX Options

Slide

Lewmar Profish Windlass

Slide

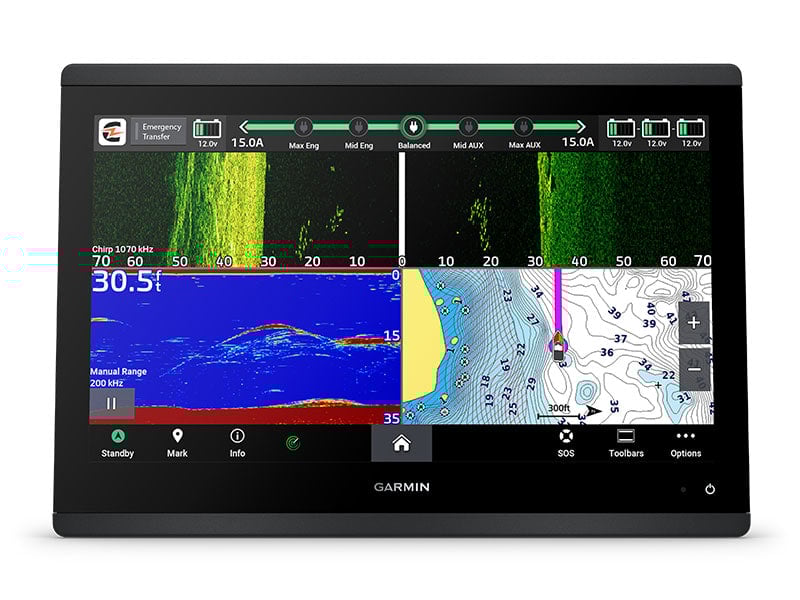

Garmin Single Package 8616XSV VHF and Antenna

Slide

Fusion Premium with Subwoofer Amp 4 Speakers

Slide

Optional Aluminum Powder Coat Gloss Textured (White or Black)

Available Options

Optional 3 Bank Battery Charger
Optional 85 QT AFT cooler with upholstery for seating
Optional Aluminum Trolling Motor bracket mounted on the bow
Optional Fusion Basic or Premium marine grade stereo systems
Optional Gel Coat Colors: Ice Blue or Whisper Gray
Optional Lewmar Stainless Pro Fish 700 Windlass
Optional Underwater LED Lighting (White, Blue, or Green)
Optional Upholstery Colors: White, Tan & Light Gray solid colored with a unique stitch pattern

240 STX Standards

Hull and Deck

8” Stainless Steel Pull-up Cleats – (7)
Advanced composite/resin stringer system
Cup holders: Stainless Steel (8) (2)-Console, (3) per side gunwale
Drain covers: Stainless Steel w/Twin Vee Logo
Fuel Cells “Florida Marine Tanks” 45 Gallon each x 2 w/Fuel Level Sensor
Gel Coat Color: White as standard
Grip Tek – yacht-style non-skid
In-Deck fish boxes/storage Macerated, Port & Stbd
Platinum Accent Stripe
Rod holders: (6) Stainless Steel – 3 per side gunwale & (4) on aluminum pipe seating
Rod Storage, Under Gunwale, Thermoformed & Flush Mounted
Rub Rail: High density PVC, white or black
Stainless Steel Bow and Stern Tow Eyes – (3)
Stainless Steel Bow Roller

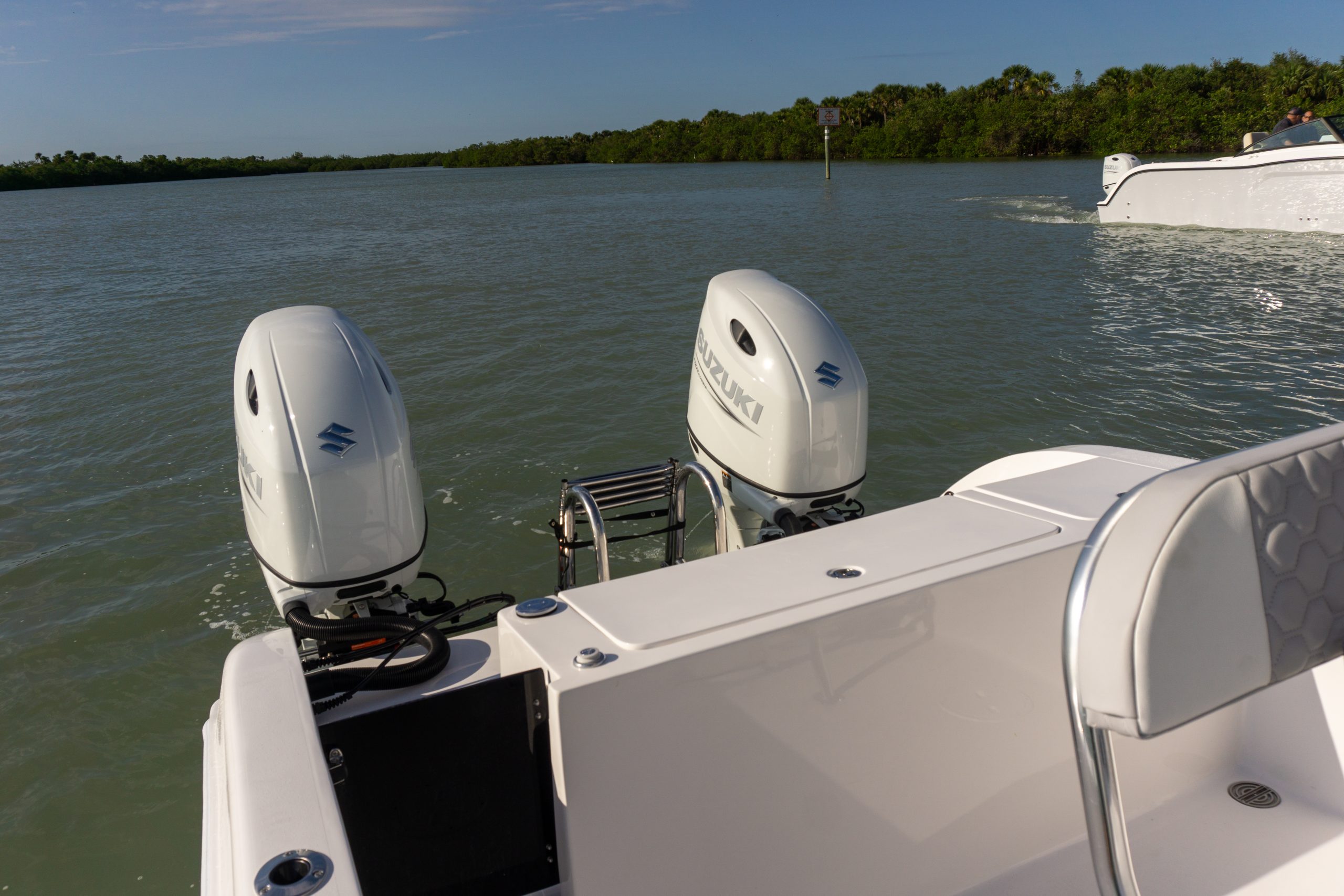

Stainless Steel Transom Boarding Ladder with Handrails
Tension hinges: Stainless and Brass
TH Marine Jack Plates
Thru hulls: Stainless Steel
Transom Walkthrough with Acrylic Swing Door and Latch
Twin Vee logo, New STX Model Designator
Upper Bow Storage with Molded Fiberglass Hatches
Wash down: Raw water washdown, stern

Electronics, Console & Helm

3 Spoke Polished Steering Wheel w/ Turning Knob
ABYC Standard Fire extinguisher
Acrylic Windshield – 1 piece
Anodized Aluminum T Top with Fiberglass Pan Top
Battery selector with on/off switches (2)
Center Sport Console w/ Forward Facing Integrated Fiberglass Upholstered Seating
Electric Marine Horn
Large dash surface for electronics
Navigation lights, port & stbd
Porta potti, self-contained
Hydraulic Steering
Ritchie Voyager Compass
Stainless Steel Cup Holders (2)
Standard Lumitec anchor light, folding
Switch panel: rocker switch panel, back lit
Thermoformed & Flush Mounted Footrest (White)
White Powder Coated Aluminum Door

Livewells, Pumps & Storage

2000 GPH Bilge pumps with float switches (2)
Fresh Water Washdown Pump
In-Deck Storage, Fiberglass Hatches, Diaphragm Pumps, Port & Stbd
Large Livewell with 800 GPH Pump
Molded Fiberglass Bilge access hatches
Molded Stern Cooler, Fiberglass Hatch, Friction Hinges
Raw Water Washdown Pump

Flush-mounted spreader lights (2) forward/aft facing

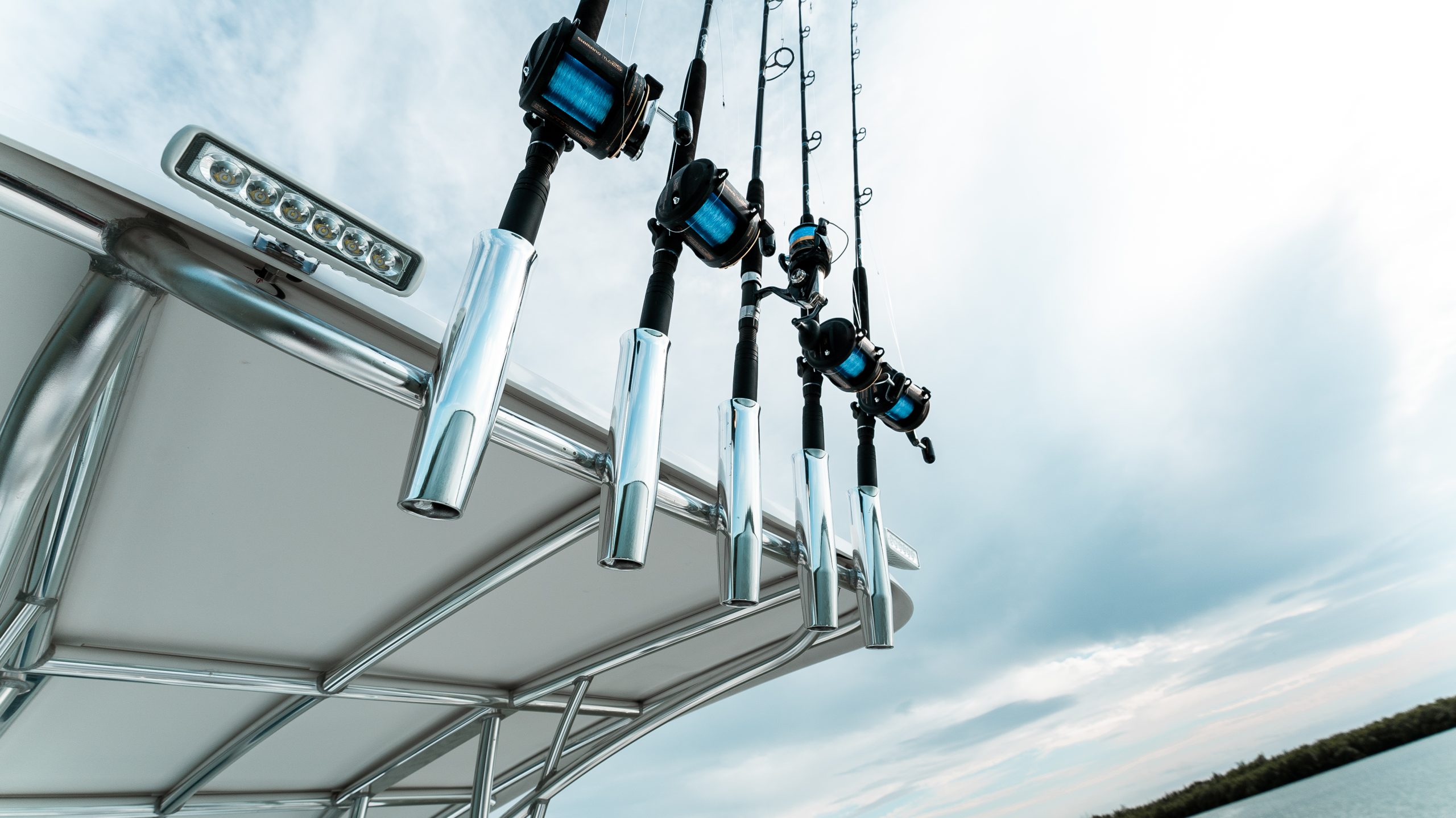

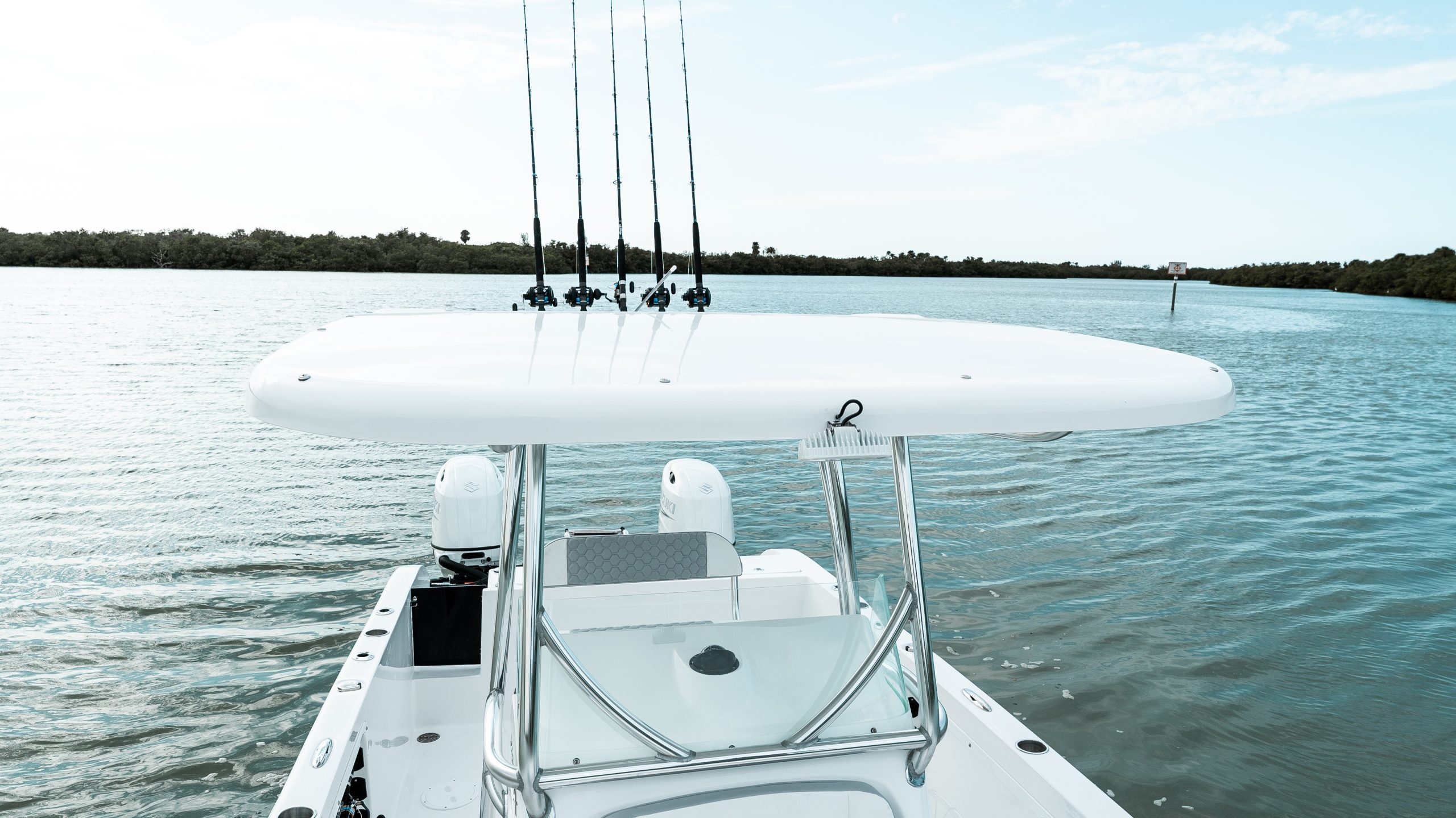

Integrated Anodized Aluminum T-top system w/ rod holders (4) flush mounted onto the console
Molded Fiberglass hardtop w/ integrated E-box, acrylic door, recessed overhead LED lights
Navigation lights, port & stbd
Standard Lumitec anchor light, folding

Seating and Upholstery

65 QT Cooler underneath the aluminum pipe seating

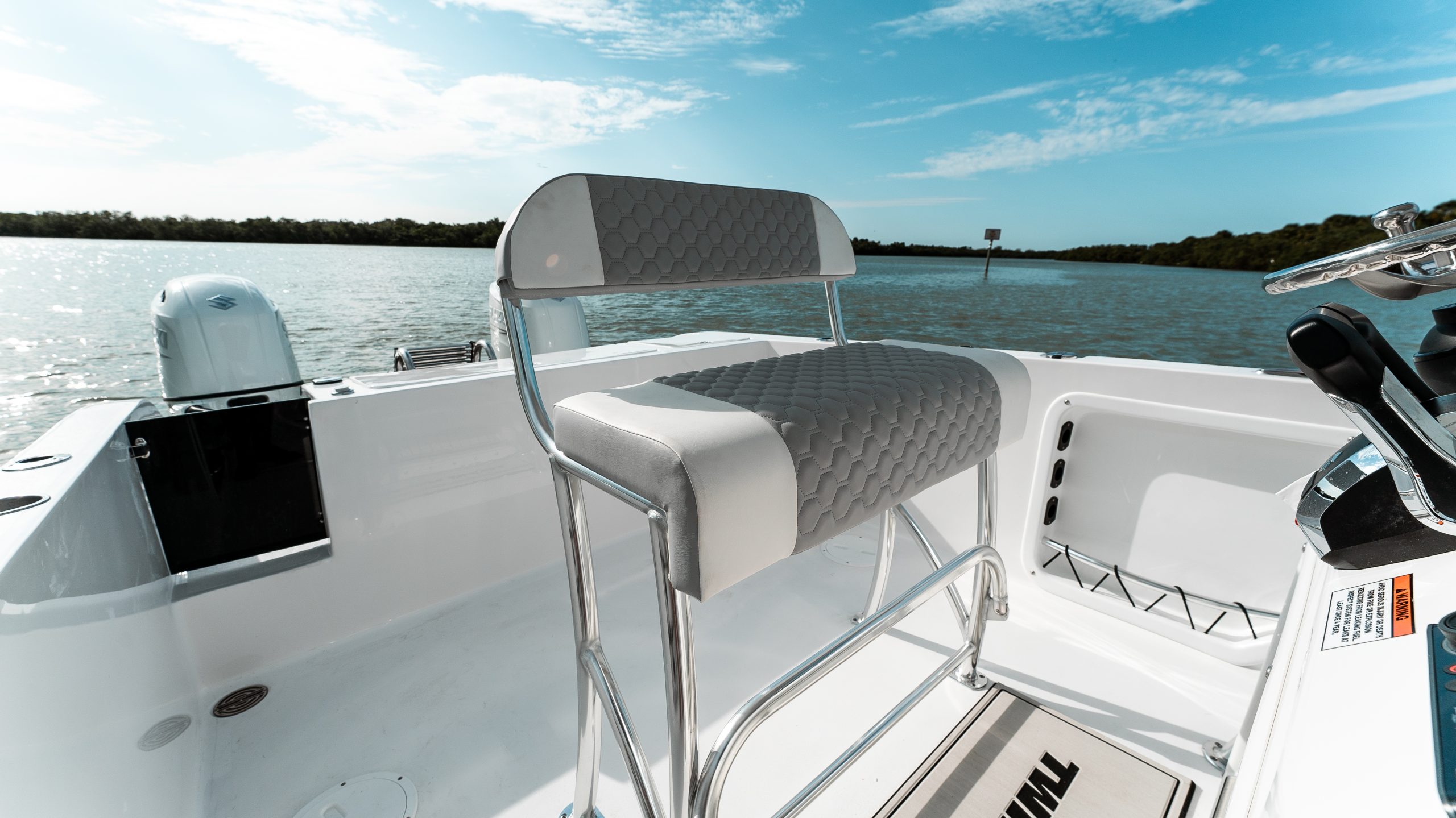

Anodized Aluminum Pipe seating with seat cushion, backrest, cup holders (2), and rod holders (4)
Bow Storage, Insulated and Dry, with Hatches, Friction Hinges
Open Bow Seating w/ Upholstered Cushions & Removable Back Rests
