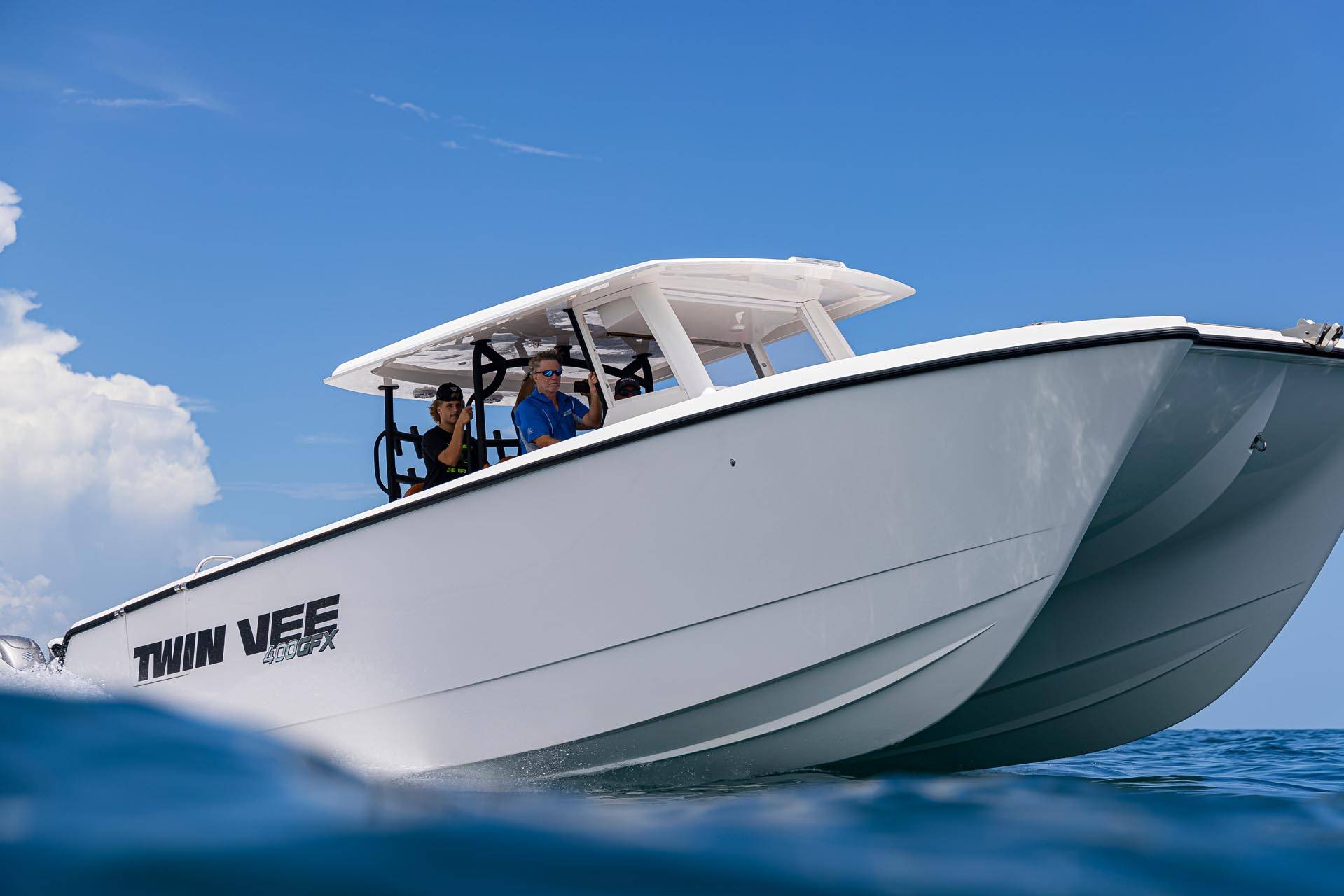

Twin Vee Launches Offshore PowerCat

The Twin Vee 400 Go Fish X was designed for the avid fisher and master Sportsman who desires
Speed, Style, and an all-out BOLD Statement of Power and Performance.

DESIGNED AND ENGINEERED

Standard Equipment includes 800 gallons of fuel, 300-gallon fish boxes, 3 live wells, XXL double-sided coffin box, double row 6 person helm seating, and much, much more.

No Fish will escape the boundless reach of TWIN VEE’S New 400 GFX.

Inject Twin Vee DNA and you have a wave-eatingfish-catching beast of a machine that equals your Passion and Desire to compete as a World Class Sportsman!

OUR MISSION NEVER WAIVERS…

Design and Build Next-Level PerformanceComfort, and Styling for the World of offshore boating.

Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
Slide
previous arrow
next arrow

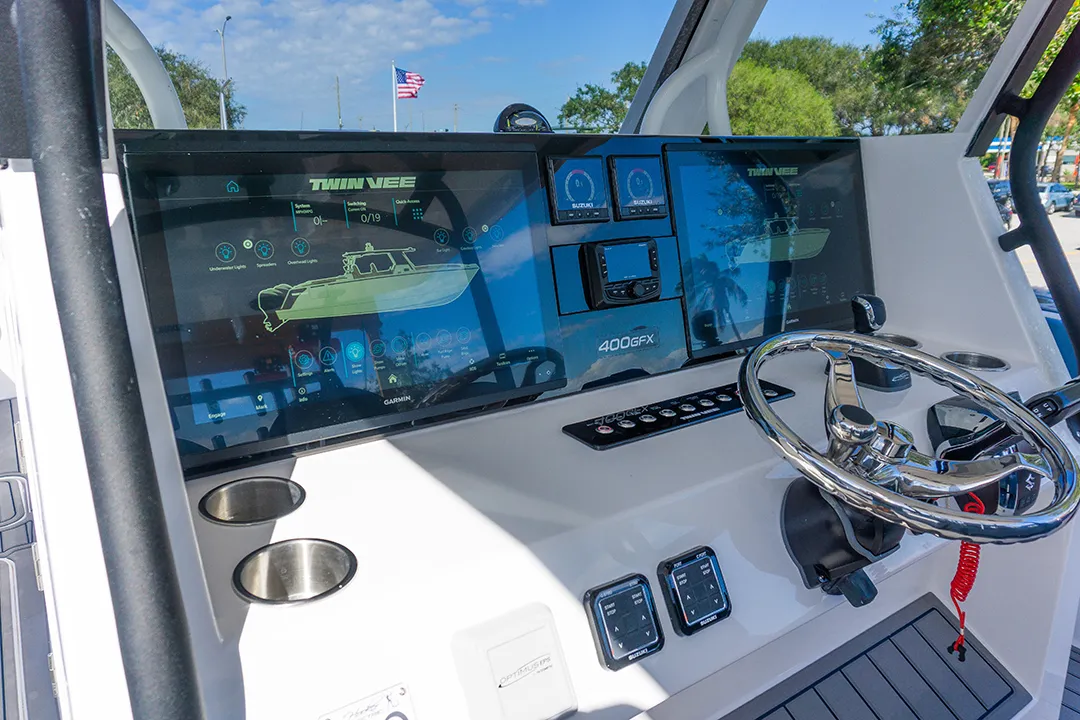

Dual Garmin Displays with Transducer

Triple Helm Seating with Second Row

Tackle Station

Mechanical Room Access

Premium Exterior Decking Packages

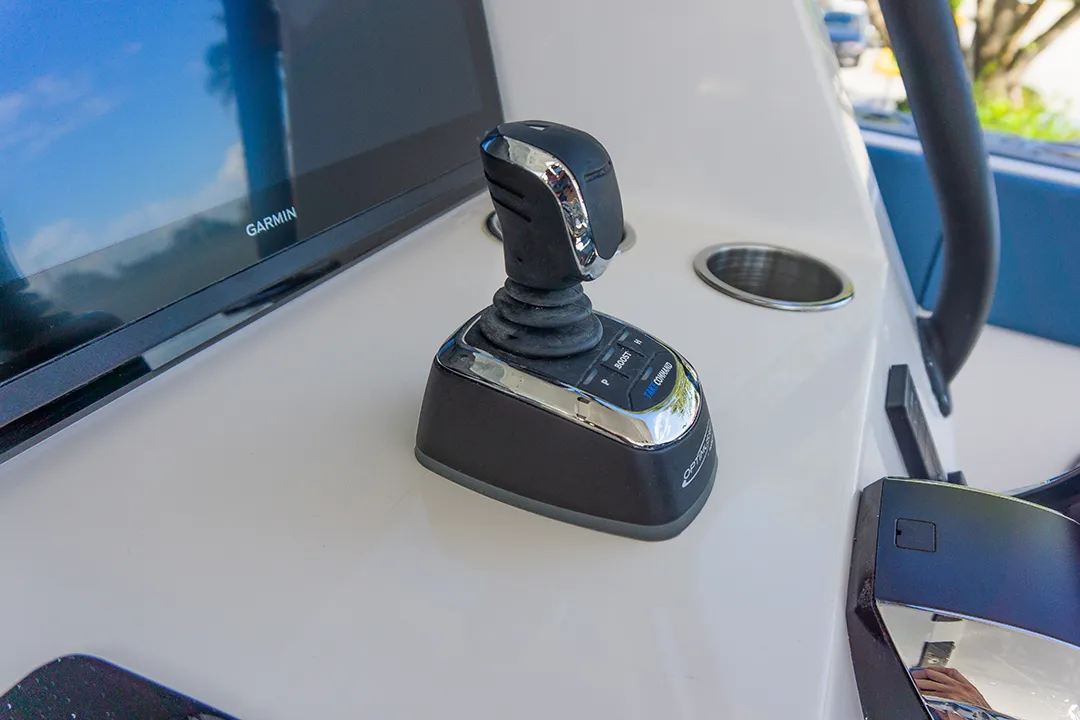

Optimus 360 Steering

Acrylic Dash Panel
Acrylic Dash Panel
All Digital Switch Panel
All Digital Switch Panel
Mechanical Room Access Hatches
Mechanical Room Access Hatches
Port Side
Port Side
Starboard Side
Starboard Side
Tackle Station
Tackle Station
Triple Helm Seating with Second Row
Triple Helm Seating with Second Row
previous arrow
next arrow

400 GFX Specs

LOA

40′ 0″

BEAM

12′ 0″

DRAFT

27″

FUEL CAPACITY

750 Gallons

MAX POWER

1,600 HP


WEIGHT

14,500 lbs.

FUEL CAPACITY

750 Gallons

DRY WEIGHT w/ Engines

14,500 lbs

COG from Bow

281″

DASH

60 Gallons

*Available with silver or black accents

400 GFX Standards

Hull and Deck

  • (2) 475 Quart Coffin Box Tubs with Raised Stainless Steel Insert
  • (2) 700 Quart In Floor Fish Boxes with Macerators
  • 10” Stainless Steel Pull-up Cleats – (6)
  • 360 – Degree Walk Around Fishability
  • Above Deck Live Wells
  • Anchor Locker with Fender storage
  • Bilge Access Thru Mechanical Room Hatches in Cockpit
  • Cup holders: Stainless Steel (10)
  • Drain covers: stainless steel w/Twin Vee Logo
  • Electric Reel Outlets (4)
  • Folding Transom Dive Ladder
  • Foldout Tackle and Gear Storage Port and Starboard
  • Fuel Cells “Florida Marine Tanks” 375 Gallon each x Fuel Level Sensors
  • Gel Coat Colors: Ice Blue, Seafoam, Whisper Gray or White
  • Grip Tek – yacht style non-skid
  • Integrated Digital Switching System
  • LED Courtesy lights throughout, Blue
  • Lewmar Stainless VX2 GO 700w Windlass
  • Pop Up 3 ½” Fender Cleats (6)
  • Rear Facing Tackle Station with Drawers
  • Resin Infusion Construction for all Fiberglass Parts w/ Carbon Fiber support for strength
  • Rod holders: (20) Stainless Steel – 10 per side Gunwale & (8) on Aluminum T-Top connect piece
  • Rod Holders: Aluminum transom mounted “Euro” rod holders 10 total (5) each port/stbd
  • Rub Rail: Thick Flexible rub rail with insert, white or black
  • Stainless Marine Outboard Brackets
  • Stainless Steel Bow and Stern Tow Eyes – (3)
  • Stainless Steel Bow Roller
  • Starboard Side Tuna/Dive Door
  • Tension hinges: Stainless and Brass
  • Thru hulls: Stainless Steel
  • Transom Swim/Fish/Sun platform
  • Twin Vee logos, Model Designator logo
  • Under Gunwale Rod Racks Port and Starboard
  • Underwater LED lights
  • Upper Bow Storage with Molded Fiberglass Hatches
  • Wash down: Raw water washdown, stern

Console, Helm & T-Top Features

  • 3 Bank battery charger
  • 3 Spoke Polished Stainless Steering Wheel w/ Turning Knob
  • ABYC Standard Fire extinguisher
  • Acrylic Dash Panel w/ extra-large surface area for electronics
  • AGM Sealed Batteries
  • All Digital Switch panel: Gloss Black Panel push buttons [blue LED lights/red in use], USB and 12v receptacle with circuit breaker protection
  • Battery selector with on/off switches (2)
  • Console Accessory Storage with USB Ports
  • Electric Marine Horn
  • Freshwater Marine Head with Macerator
  • Fully Enclosed Tempered and Tinted Glass Windshield
  • Ritchie Voyager Compass
  • Seastar All Electric Steering
  • White Powder Coated Aluminum Doors Port/Starboard

T-top Features

  • Aluminum Powder Coat Gloss/Textured (White or Black)
  • Electric motorized anchor light/electric antenna mount
  • Flood/Search Light Bar LED, forward & aft, 10,000+ lumens- independently switched
  • Integrated Powder Coated Aluminum T-top system, flush mounted onto console
  • LED Cockpit and Compartment Accent Lighting Throughout
  • Molded Fiberglass Hardtop w/ Radio Box and Rocket Launchers
  • Motorized Anchor and Antenna Mount 316 Stainless Steel Hardware
  • Spreader Lights with 360 Degree Lighting

Livewells, Pumps & Storage

  • “Hooker” Live well Sea Chest with Variable Speed Pumps
  • 2000 GPH Bilge Pumps with “Ultra Safety” Bilge Switch (4)
  • Coffin insulated storage/fish boxes – forward facing/upholstered chaise lounge seating
  • Freshwater Washdown in Bow
  • Raw Water Washdown Pump
  • Twin transom live wells (45gal), (1 ea.) port & stbd

Seating and Upholstery

  • Bow Storage, Insulated and Dry, with Hatches, Friction Hinges
  • Entertainment Center Stainless Steel Sink with Bait Prep and Freshwater Washdown
  • Forward Facing Console Lounge Seating
  • Premium Triple Captain Helm Chairs with Second Row Seating
  • Premium GG Schmitt aft seating w/ polished stainless-steel port/stbd

400 GFX Options

Available Options

  • Outrigger Poles – GEMLUX Bluewater Carbon Fiber 18’ or 21’ Poles
  • Outriggers – GEMLUX Bluewater Base
  • Premium GG Schmitt aft seating w/ polished stainless-steel port/stbd

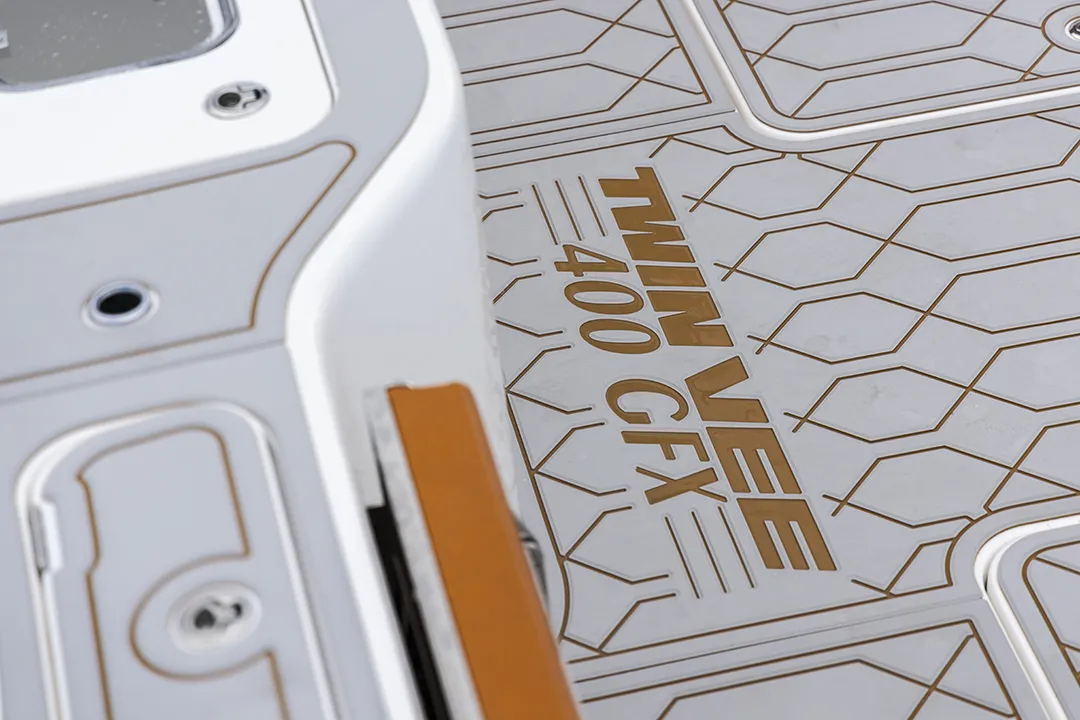

  • Premium Interior Decking Package
  • Single or Dual 22” Garmin Displays w/ transducer
  • Steering Wheel Upgrade to Edson – Stainless, Black or Satin Finishes
  • Wetsounds High Performance Audio Package

400 GFX Power Options

Quad Suzuki 350ATXX

Engine Type
DOHC 24-Valve

Displacement
267.9 (4390)

Max HP
350

Starting System
Electric

No. of Cylinders
V6 (55°)

Operating Range (RPM)
5700-6300

Weight
X 727lbs, XX 747 lbs

Alternator
12V 54A

Color Options
Black

Quad Suzuki 350ATXX

Engine Type
DOHC 24-Valve

Displacement
267.9 (4390)

Max HP
350

Starting System
Electric

No. of Cylinders
V6 (55°)

Operating Range (RPM)
5700-6300

Weight
X 727lbs, XX 747 lbs

Alternator
12V 54A

Color Options
White

Walkthrough
Lifestyle

LOA

40′ 0″

BEAM

12′ 0″

DRAFT

27″

FUEL CAPACITY

750 Gallons

MAX POWER

1,600 HP
